Optimization and Physiological Stress Analysis of Chinese Herbal Formulations for Acne Treatment

Transcript:

My name is Angelina Zhang, and I studied how traditional Chinese herbs could be used as a topical treatment for acne. I continued my previous project by addressing a completely new research question with new data to expand on what I found last year. The main issue with conventional Western medicine is that while it can be an effective and targeted treatment for some people, it often has harsh side effects. Chinese herbal medicine focuses on holistic treatments that address imbalances within the body and has many benefits, but there is currently very little research on it. My study was split into 2 phases: a preliminary screening analysis to identify the most effective individual herbs, then creating and evaluating new optimized herbal formulations based on those results. I tested how they affect oil levels and moisture absorption and retention in artificial skin. I found that Formulation 3, containing Cimicifuga Foetida, Sophora Flavescens, and Snaketongue Grass was the most effective. My goal is to integrate both Western and traditional medicine as equally valuable forms of acne treatment.

Introduction

Previously, I studied how various supplements and a general Chinese herbal medicine (CHM) formulation affected oil and moisture in artificial skin in relation to acne. This year, I continued evaluating oil and moisture, but focused on breaking down the formulation into individual herbs then creating new, optimized formulations, and additionally testing their stability and effectiveness under physiological stressors.

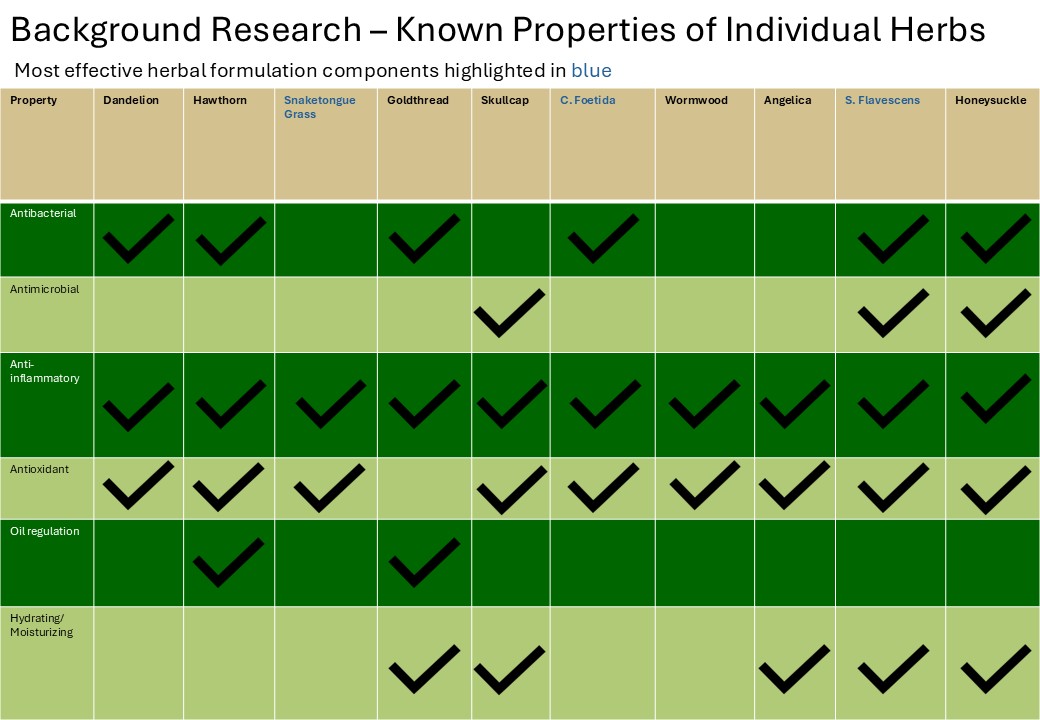

Background Information

Acne is a common skin disorder affecting 633 million people globally, yet can be difficult to treat and manage. Oil regulation, moisture absorption and moisture retention are all important factors in acne treatment. Western medicine targets direct symptoms and causes, but can be aggressive and difficult to sustain. CHM focuses on holistic and individualized treatments that address imbalances within the body and has many benefits, like whole body support and fewer harsh side effects. However, research on CHM is limited, especially as a topical treatment for acne.

Inspiration

I was motivated by my own experiences struggling with conventional acne treatments but seeing efficacy in alternative and traditional forms of treatment.

Objectives

Phase 1:

Evaluate and identify the most effective individual herbs.

Phase 2:

Develop, evaluate, and identify most effective herbal formulations based on Phase 1 results.

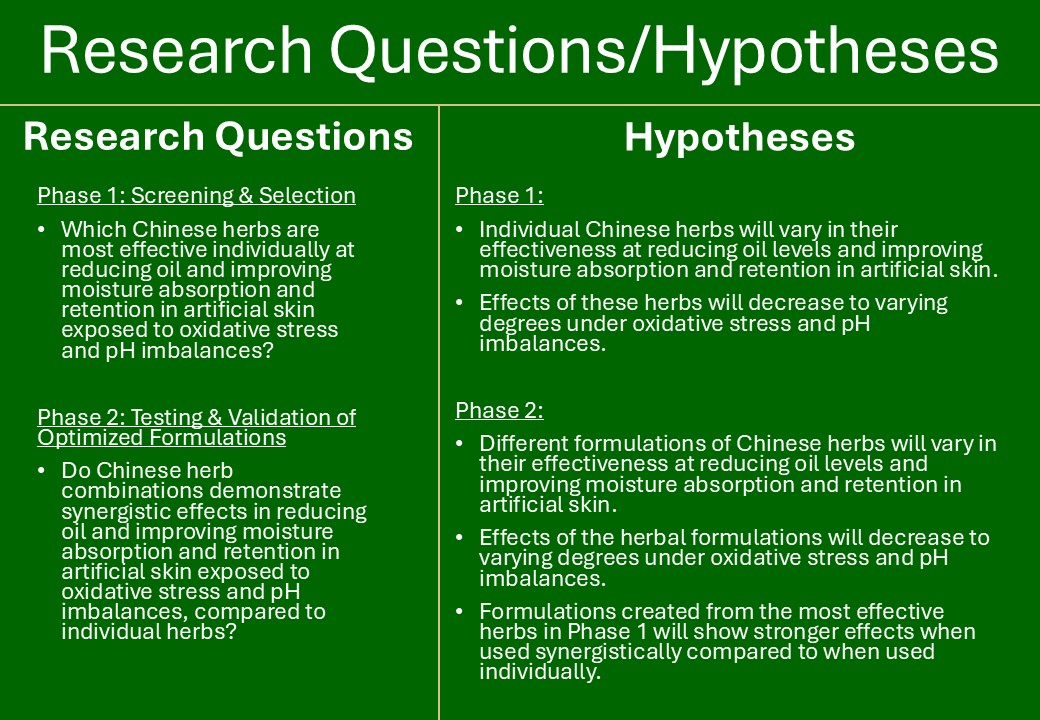

Hypotheses

Individual herbs and formulations will vary in their effectiveness at reducing oil levels and improving moisture absorption/retention, and their effectiveness will decrease to varying degrees under oxidative stress and pH imbalances.

Formulations created from the most effective herbs in Phase 1 will be more effective when used synergistically compared to individually.

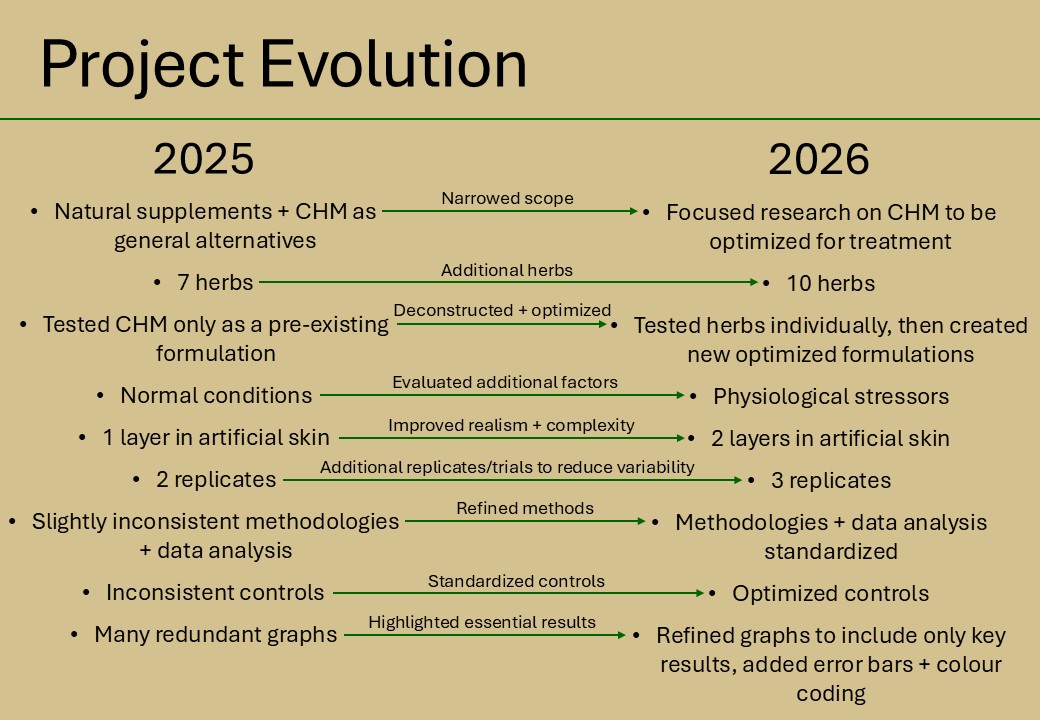

A similar experimental design from last year was refined to improve accuracy and efficiency while also maintaining consistency throughout the continuation.

Each phase involved an oil study to test oil levels on the surface of artificial skin over time and a moisture study to test water absorption and retention in artificial skin over time. All experimental groups had some type of physiological stressor induced (oxidative stress, low pH, high pH).

Controls

Positive control (concentrated acne serum)

Untreated control

Last year's herbal formulation

No stressor control

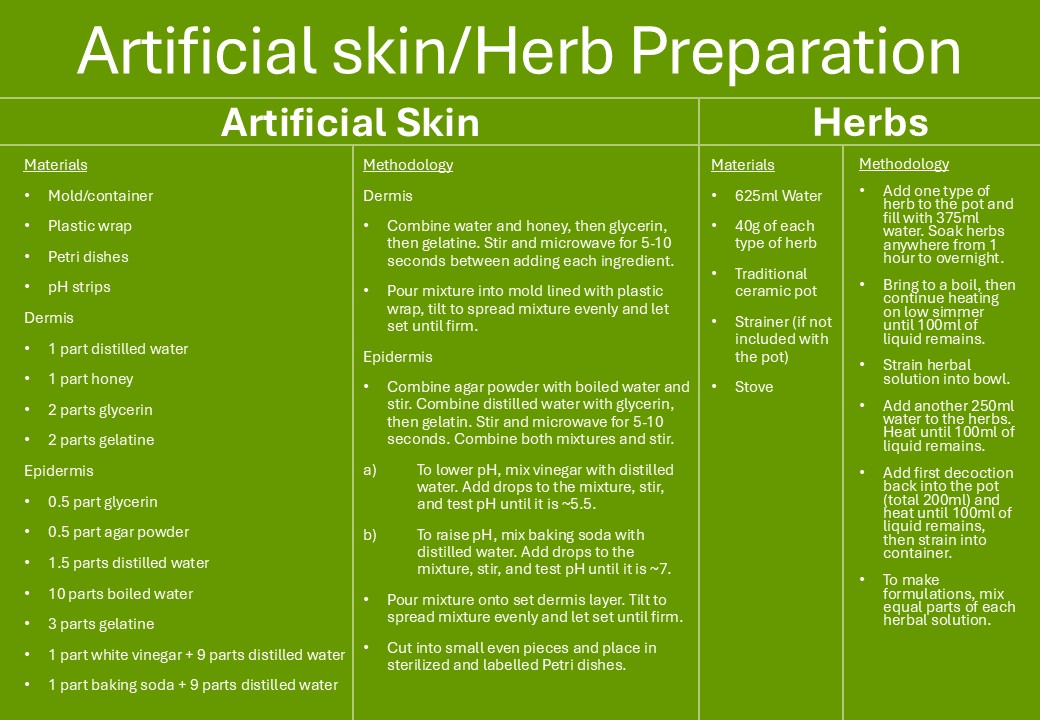

Preparation

2 layers of artificial skin (dermis + epidermis) were created using household ingredients, and lemon juice/baking soda was used to lower/raise the pH of the artificial skin (if applicable).

Each sample had a stressor induced either in the artificial skin itself for pH differences or using hydrogen peroxide on top to mimic oxidative stress.

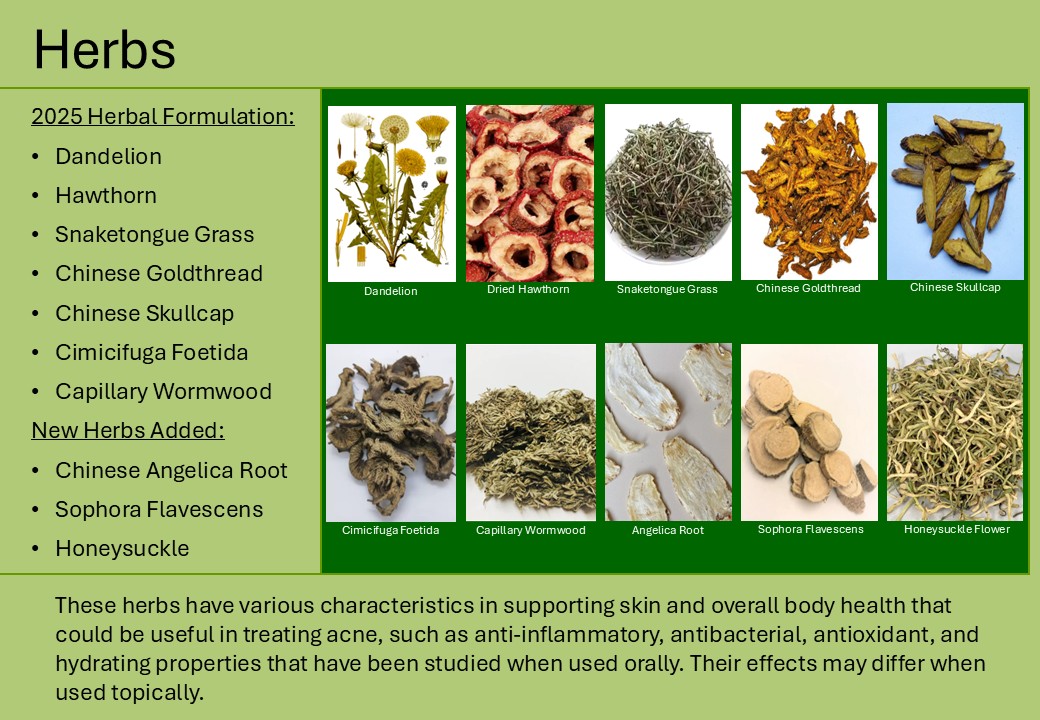

Herbs were boiled individually in water to create decoctions with a 0.4g/mL concentration for Phase 1. Solutions were then mixed in equal parts to create herbal formulations for Phase 2.

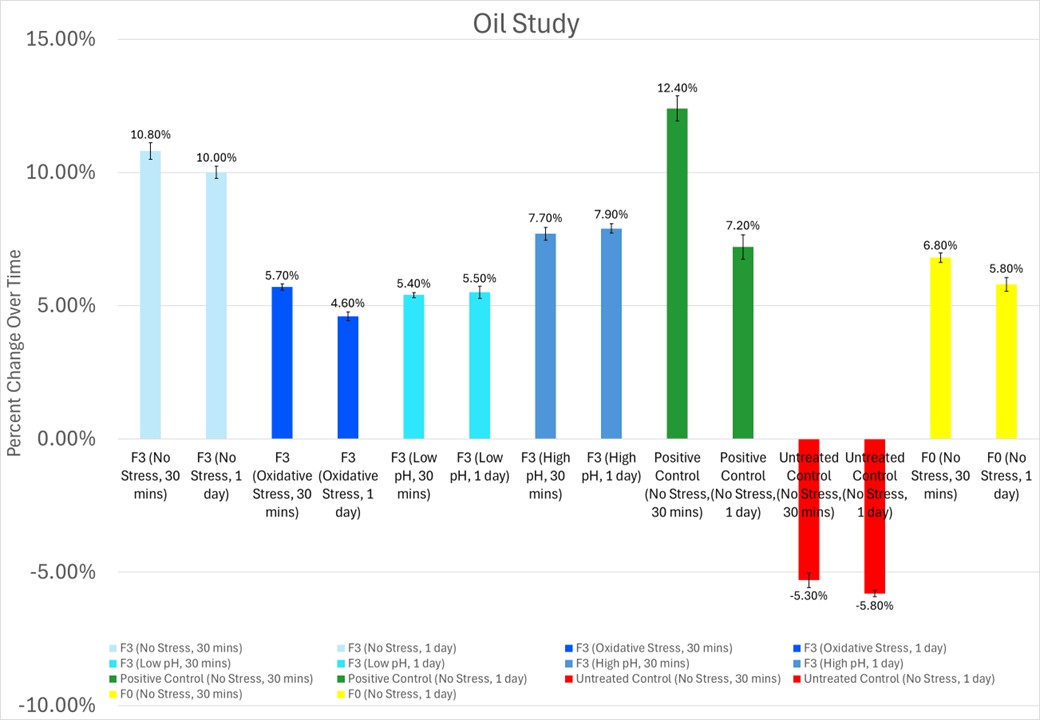

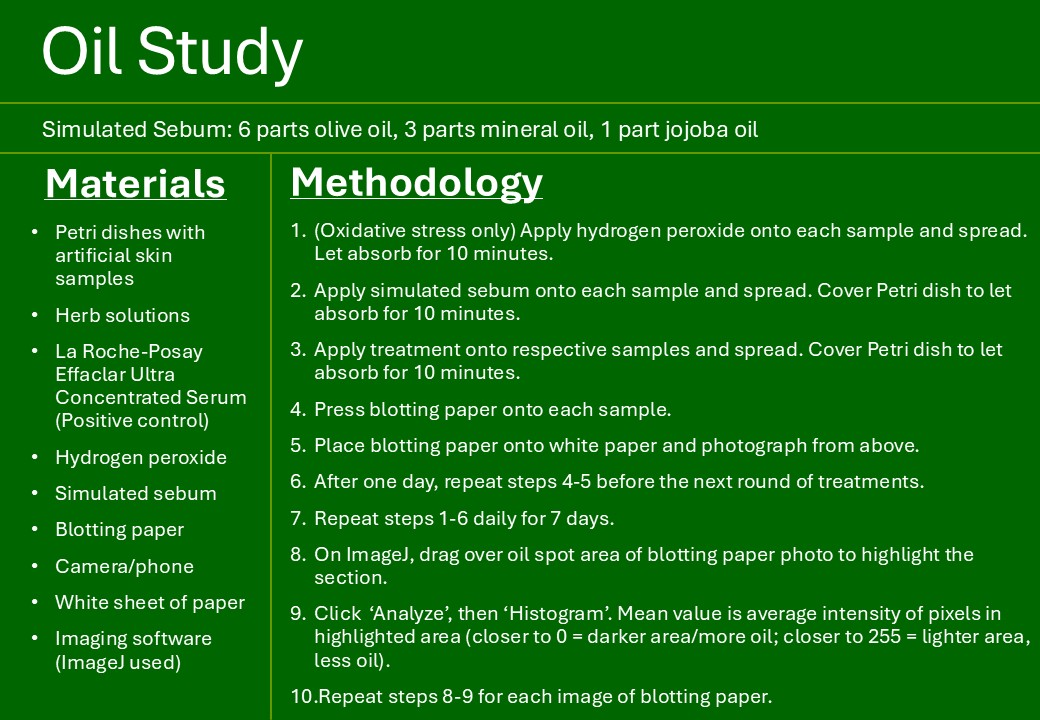

Oil study

Simulated sebum (olive oil, mineral oil, jojoba oil) was applied to samples and left to absorb before treatment application, which was absorbed as well. Blotting paper was pressed evenly onto the surface and a picture was taken. Image analysis was done to determine the pixel intensity of the blotting paper (higher pixel intensity value = less oil & vice versa).

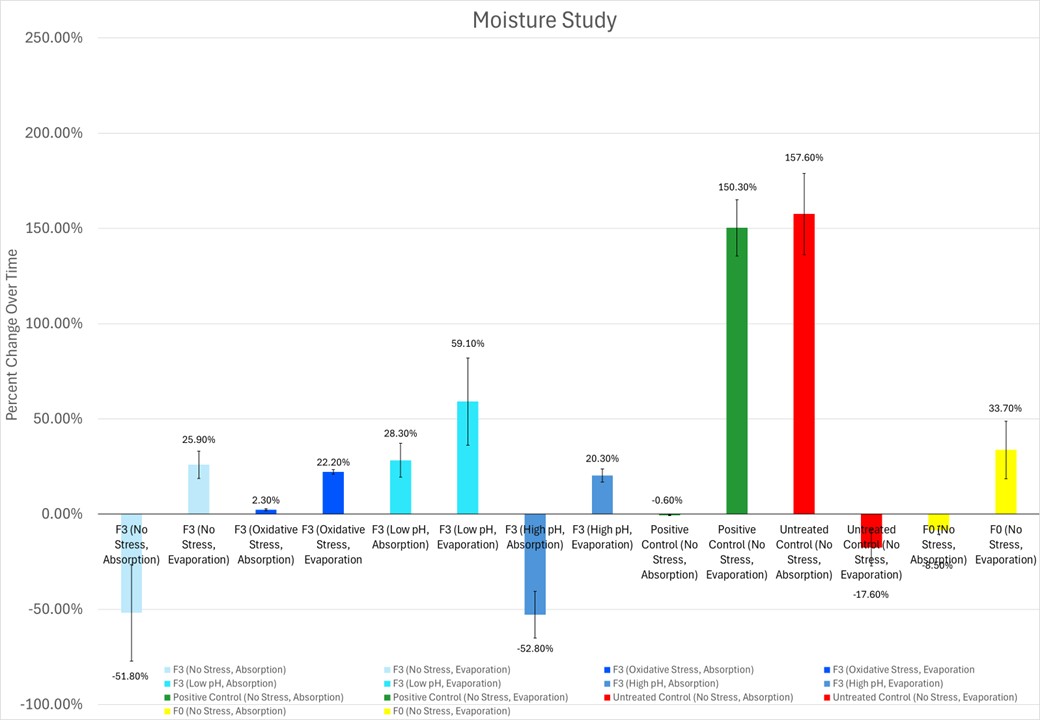

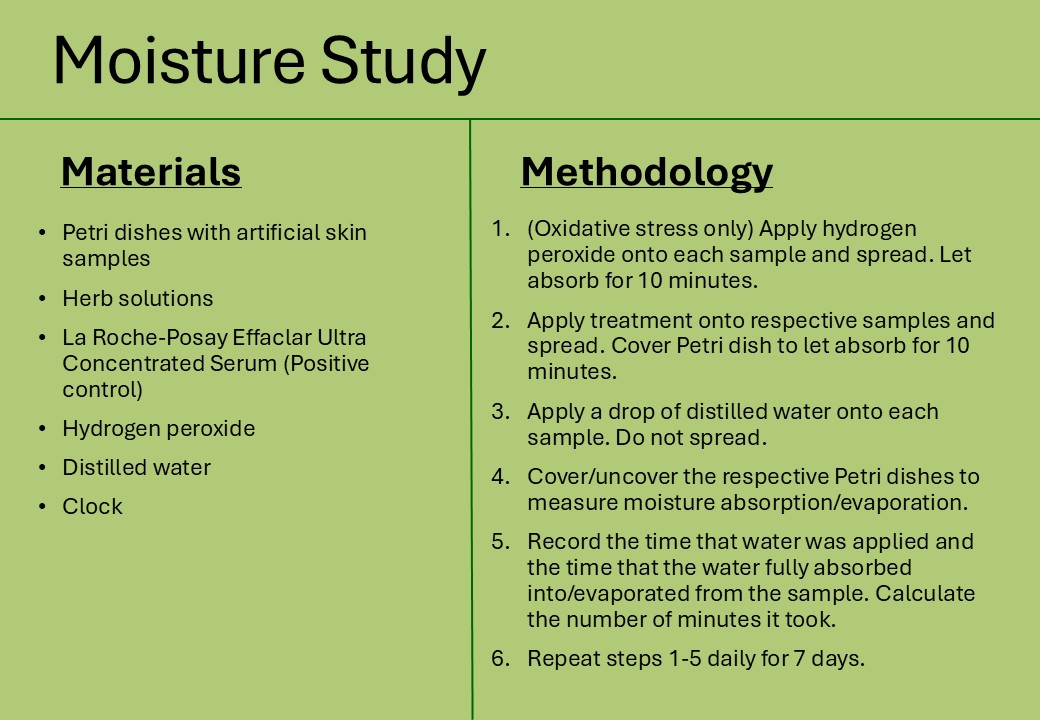

Moisture study

Treatments were applied to samples and left to absorb. A water droplet was applied in the center of the sample and its absorption/evaporation time from the skin was measured (less absorption time = improved absorption & vice versa; longer evaporation time = improved retention & vice versa)

In both studies, the process was repeated once daily for 7 days and each sample in Phase 2 had 3 trials.

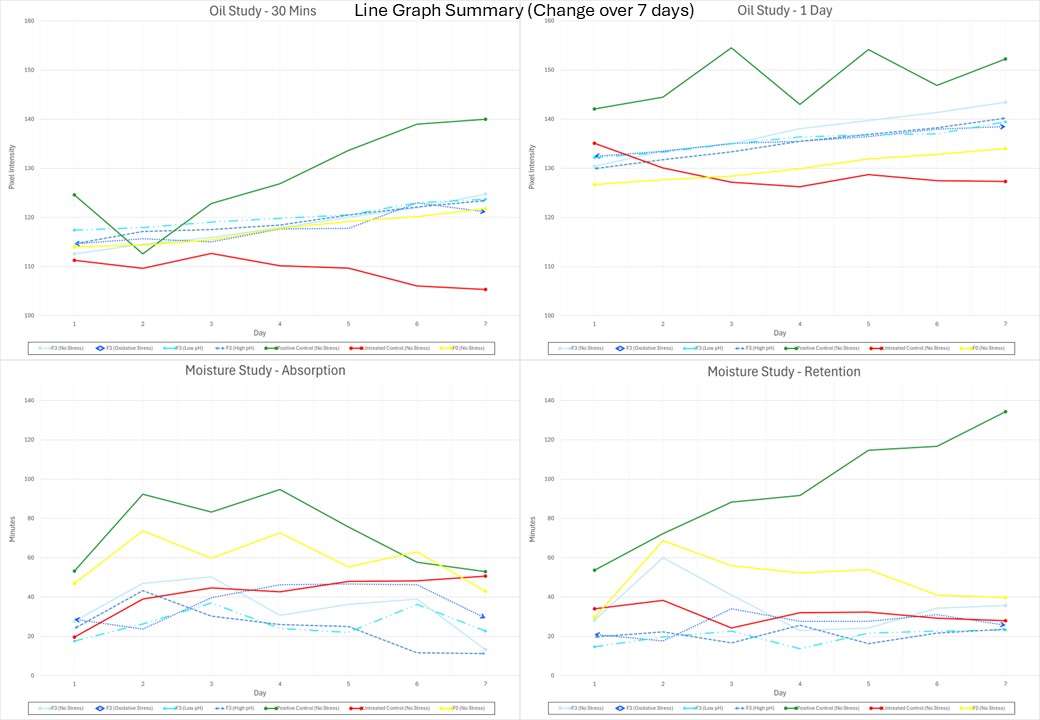

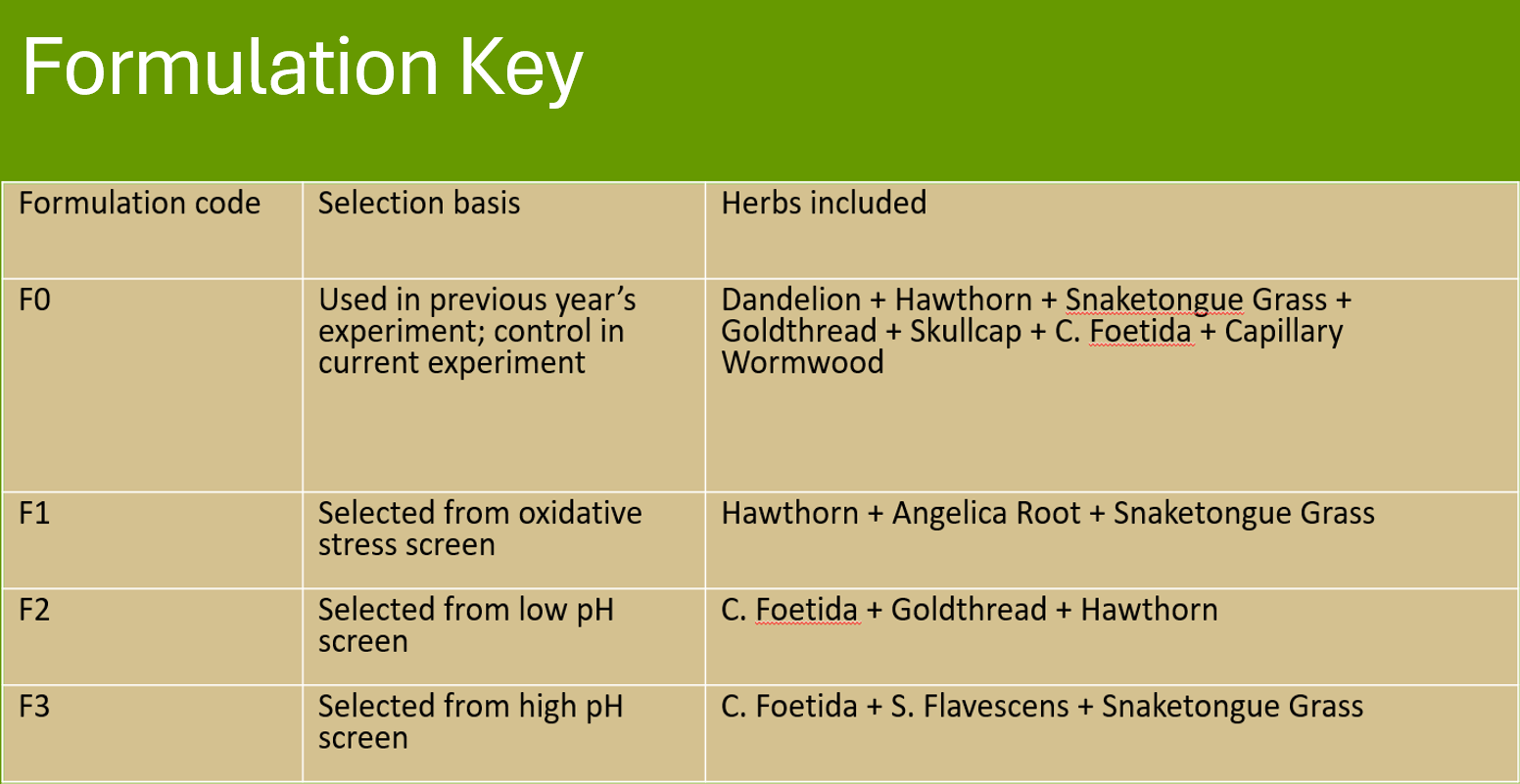

(Formulation key in figures above)

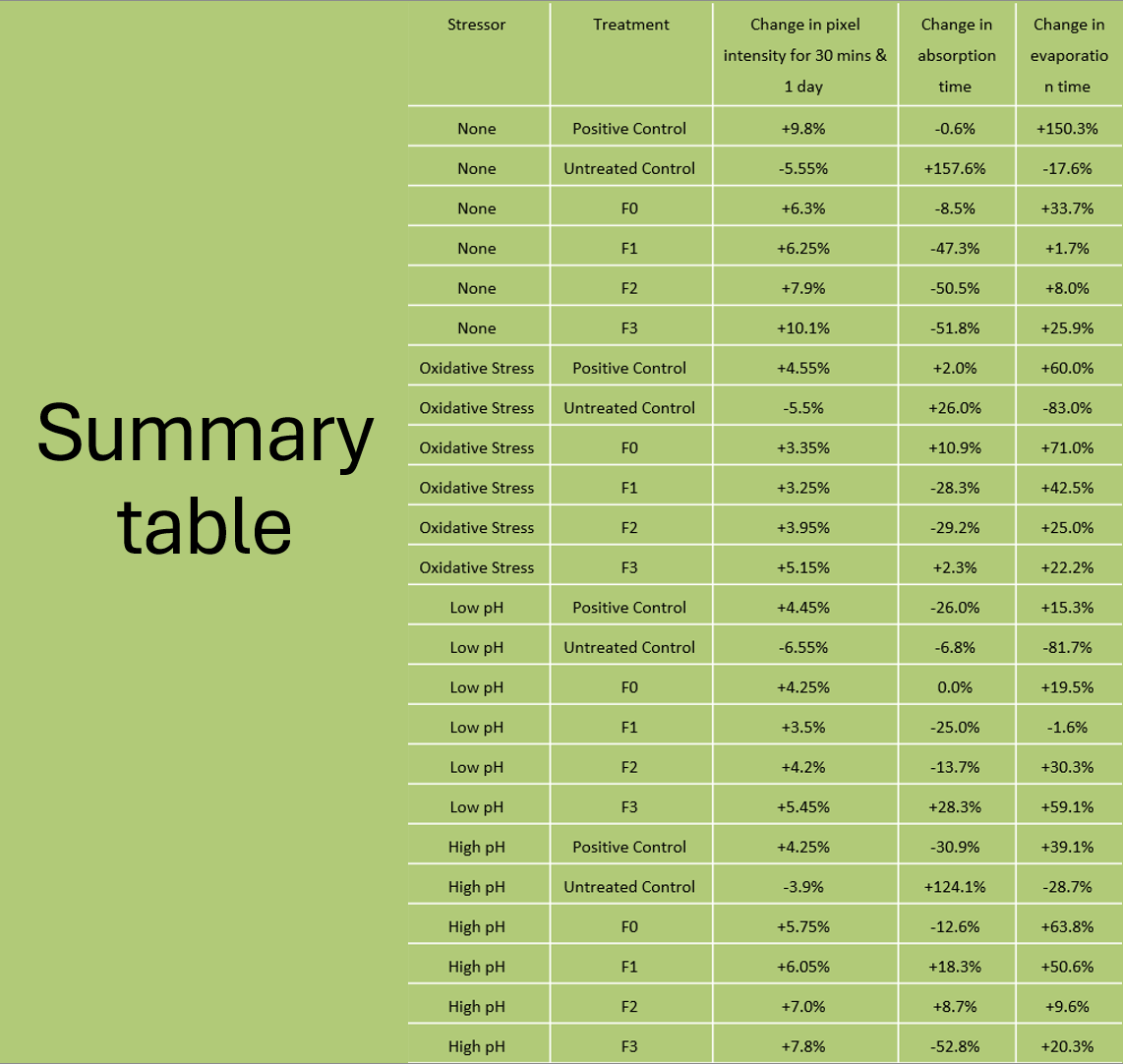

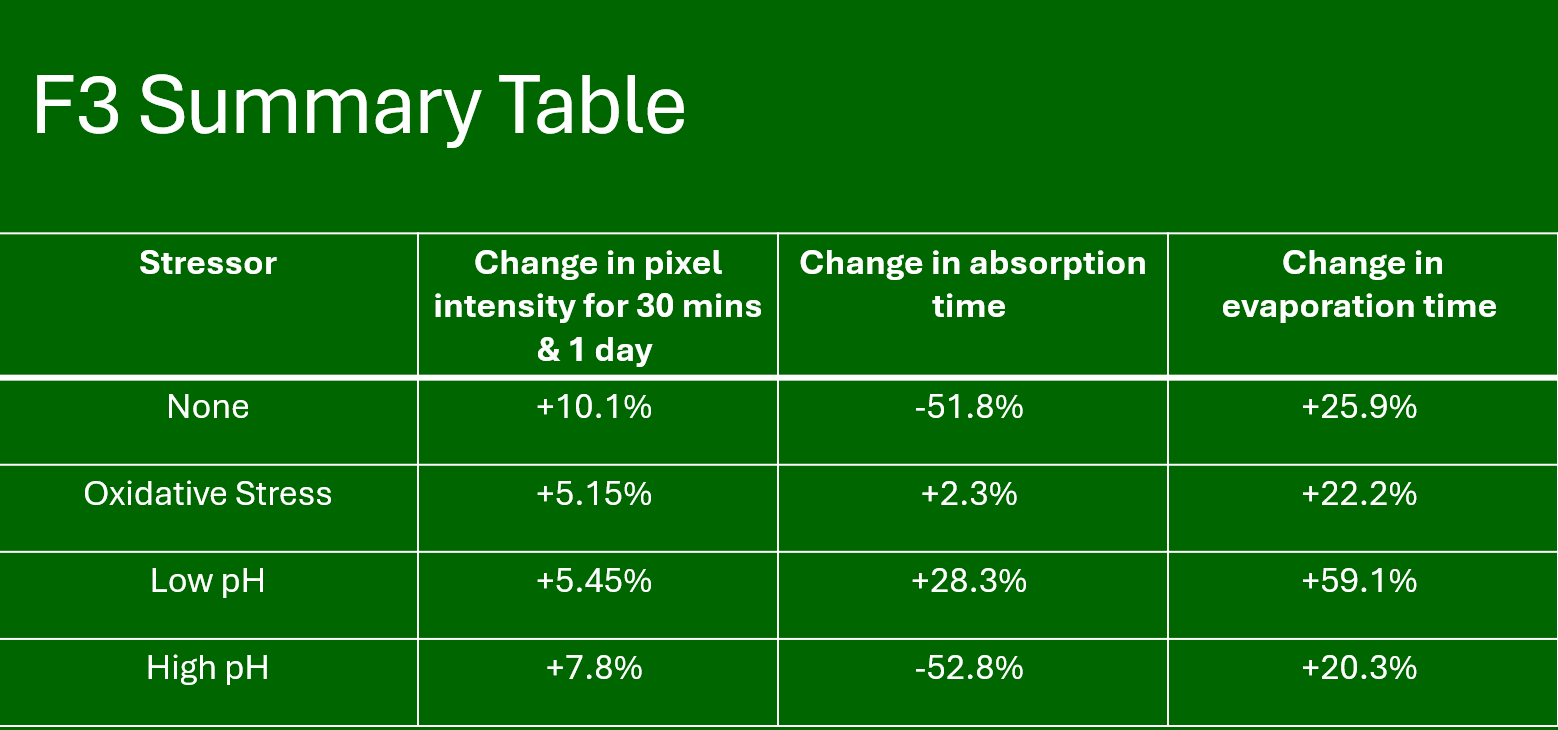

(Refer to tables above for detailed numerical values of results)

Averages across all 3 sample values for each experiment were calculated along with their standard deviation. The overall percent change in oil levels and moisture absorption/evaporation time was also calculated for each experiment from the average start and end values.

Phase 1

Hawthorn, Angelica Root, Snaketongue Grass, C. Foetida, Goldthread, and S. Flavescens were identified for strong oil and moisture regulating results under various stressors. C. Foetida and Snaketongue Grass appeared twice, suggesting they have wide applicability and strong stability.

Phase 2

Across all 3 metrics (oil regulation, moisture absorption/retention), F3 was most consistently effective. It was also shown to be similar to or more effective than the positive control. F2 was slightly more effective in most metrics even across various stressors than F1. F0 performed similarly to F1, with each having some aspects seeming more effective under different stressors and at different levels.

Formulations and treatments were generally more effective in regulating oil and improving moisture absorption/retention compared to the untreated control to varying degrees.

Stressors that worsened treatment efficacy varied between treatments and controls. In general, low pH worsened treatment efficacy the most, followed by oxidative stress, then high pH. This may be due to herbal compounds being sensitive and degrading under acidic conditions. Some herbs have antioxidant properties that may partially protect against oxidative stress. Basic conditions may be less disruptive to compounds.

Formulations created to maintain their performance most optimally under the stressor the herbs were most effective in initially (Phase 1) were predicted to be most effective in that respective stressor, and results were generally consistent with predictions.

Optimized formulations were generally more effective compared to the individual herbs that made up the formulations.

The formulations created from research in Phase 1 (F1, F2, F3) were generally more effective, even across different stressors, than F0.

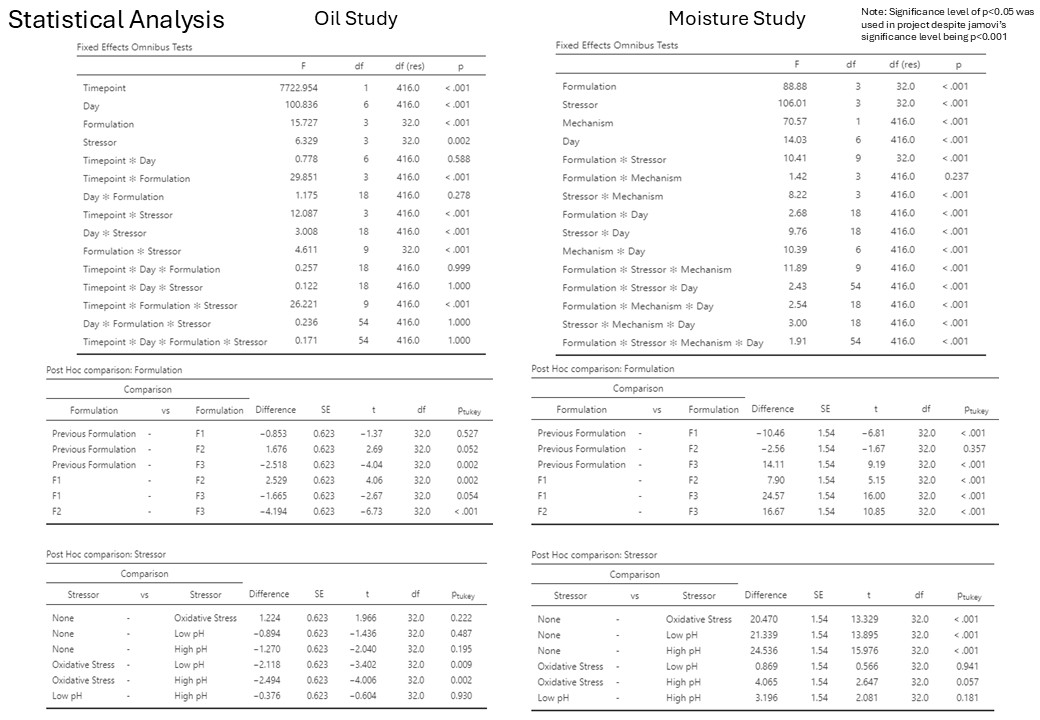

Statistical Analysis

A Linear Mixed Model (LMM) was used on Phase 2 results. An LMM analyzes data, taking into consideration both fixed effects (variables of interest) and random effects (variables representing random differences between samples). It separates real effect from randomness and calculates how different factors and their interactions affect results.

Notably, the formulation x stressor interaction was significant in both studies, confirming that the effectiveness of the formulation changes with the stressor.

In both studies, F3 was significant for almost all pairwise comparisons, meaning its effectiveness was likely not due to random chance, which is important considering that F3 was the most effective formulation overall.

Not all pairwise comparisons for the stressors in both studies were significant, meaning we cannot conclude that some stressors' effects were not due to random chance.

Overall, statistical analysis generally supported the trend that optimized formulations (F1, F2, F3) were more effective the original formulation (F0), particularly under stress conditions. Although not all pairwise comparisons reached significance, it does not necessarily invalidate observed results and trends, but rather that they warrant further investigation.

Conclusion

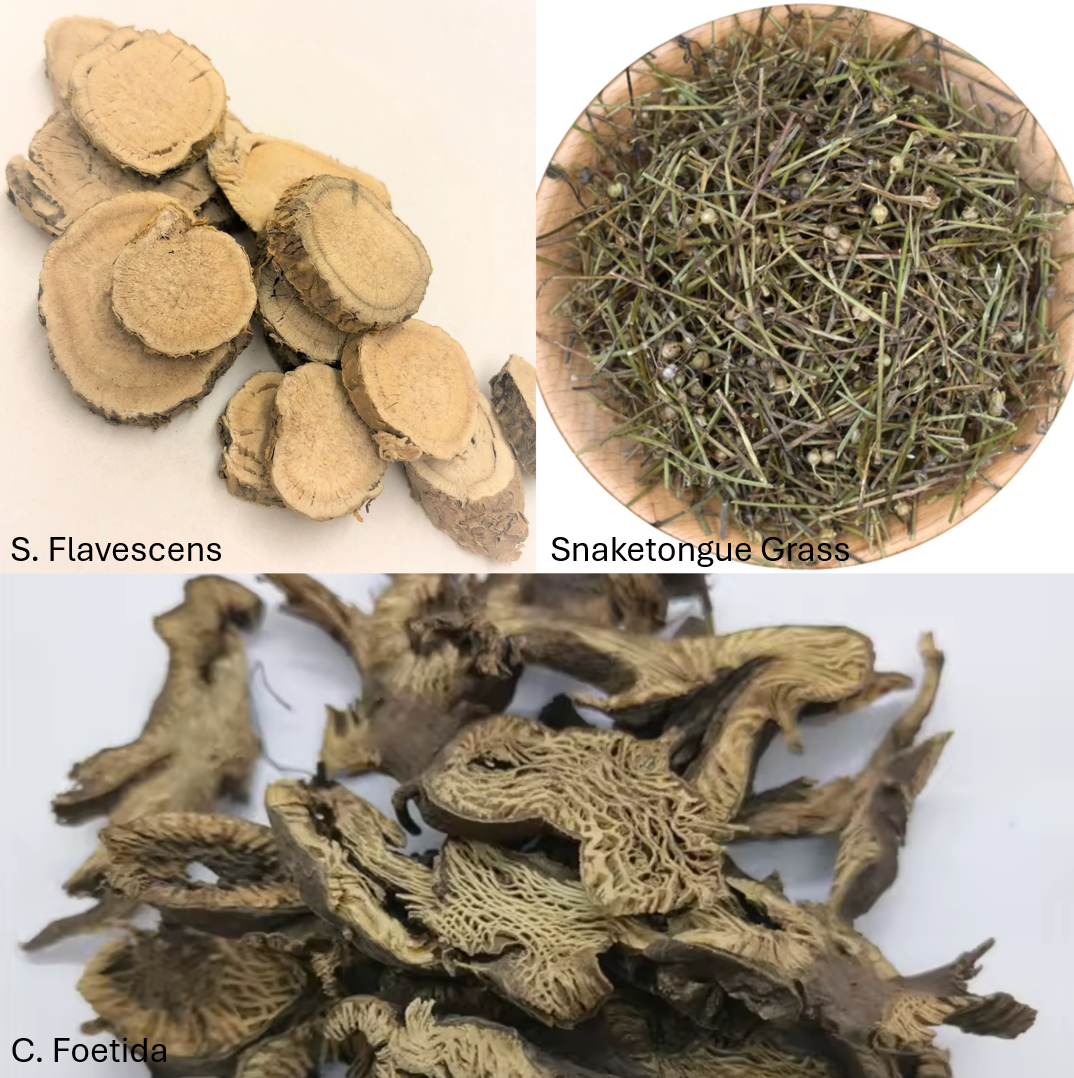

F3 (C. Foetida, S. Flavescens, Snaketongue Grass) was the most effective in reducing oil levels and improving both moisture absorption and retention under various stressors across both studies. These elements are extremely relevant to acne in that they are essential for healthy sebum production/regulation and a strong skin barrier.

The hypotheses in Phase 1 were supported, the results of which were used to help form hypotheses in Phase 2, which were also supported. The objective of the project was mainly to investigate and explore the effects of many different herbs and formulations equally than to focus on and validate a single treatment.

This year, the ideas, methods, and techniques were refined and ameliorated to optimize results, and the focus was on CHM specifically. The main changes were that the original formulation was separated into individual herbs and new herbs were added, then optimized synergistic formulations were created based off results, and were tested under various physiological stressors. While this project continued off my existing research, it addresses a completely new question that stemmed from my previous work.

Applications

This research can help people who struggle with acne to find an alternative, holistic, and less aggressive form of treatment. There is also very little research on CHM as a topical acne treatment, so these findings can be used as a foundation for future investigation and validation. The goal is to integrate both traditional and Western medicine as equally valuable forms of acne treatment to suit different needs and purposes.

Limitations/Errors

Artificial skin and simulated sebum do not fully replicate the complexity and characteristics of real human skin and sebum

Chinese herbal formulations are traditionally taken orally

Treatments were only tested for 1 week

Small methodological inconsistencies

Improvements/Further Research

Test additional environmental/physiological stressors

Test other herb formulations and ratios

Other quantitative and qualitative methods of evaluation

Analyze other factors that contribute to acne

Increase number of samples and trials

Biochemical mechanisms behind observed effects

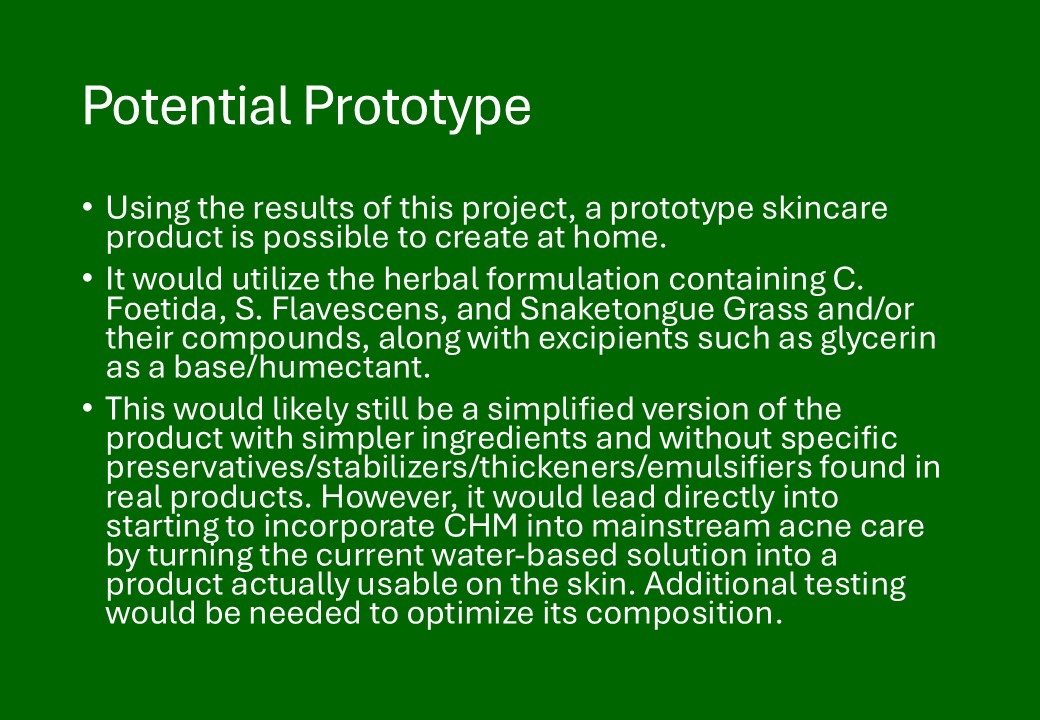

Developing a prototype acne product utilizing the herbal formulation found in results alongside skincare ingredients to be used on skin for acne treatment

A sincere thank you to:

My parents, for helping me buy supplies and ingredients, teaching me how to decoct herbs, providing ideas and input where they can, listening to my presentation, and for wholeheartedly supporting me with science fair.

WMSF for providing the opportunity to go to CWSF each year.

My friends and school for recognizing my achievements and supporting my endeavors.

2025 Project

Zhang, A. (2025). Alternative Acne Treatments: The Effects of Natural Supplements and Chinese Herbal Medicine. ProjectBoard; Youth Science Canada. https://partner.projectboard.world/ysc/project/alternative-acne-treatments-the-effects-of-natural-supplements-and-chinese-herbal-medicine

Journal Articles

Burnett, B. P., Jia, Q., Zhao, Y., & Levy, R. M. (2007). A medicinal extract of Scutellaria baicalensis and Acacia catechu acts as a dual inhibitor of cyclooxygenase and 5-lipoxygenase to reduce inflammation. Journal of Medicinal Food, 10(3), 442–451. https://doi.org/10.1089/jmf.2006.255

Chen, H. Y., Lin, Y. H., & Chen, Y. C. (2016). Identifying Chinese herbal medicine network for treating acne: Implications from a nationwide database. Journal of Ethnopharmacology, 179, 1–8. https://doi.org/10.1016/j.jep.2015.12.032

Chen, J., Liu, Y., Zhao Z., & Qiu, J. (2021). Oxidative stress in the skin: Impact and related protection. International Journal of Cosmetic Science, 43(5), 495–509. https://doi.org/10.1111/ics.12728

Dao, M., Kelsberg, G., & Louden, D. (2020). Potential harms of long-term acne treatment with oral antibiotics. Canadian Family Physician, 66(9), 669–670. https://pmc.ncbi.nlm.nih.gov/articles/PMC7491659/

Fan, M., Zhang, X., Song, H., & Zhang, Y. (2023). Dandelion (Taraxacum Genus): A Review of Chemical Constituents and Pharmacological Effects. Molecules, 28(13), 5022. https://doi.org/10.3390/molecules28135022

Kim, E. H., Shim, B., Kang, S., Jeong, G., Lee, J. S., Yu, Y. B., & Chun, M. (2009). Anti-inflammatory effects of Scutellaria baicalensis extract via suppression of immune modulators and MAP kinase signaling molecules. Journal of Ethnopharmacology, 126(2), 320–331. https://doi.org/10.1016/j.jep.2009.08.027

Krakauer, T., Li, B. Q., & Young, H. A. (2001). The flavonoid baicalin inhibits superantigen-induced inflammatory cytokines and chemokines. FEBS Letters, 500(1-2), 52–55. https://doi.org/10.1016/s0014-5793(01)02584-4

Li, B. Q., Fu, T., Gong, W. H., Dunlop, N., Kung, H., Yan, Y., Kang, J., & Wang, J. M. (2000). The flavonoid baicalin exhibits anti-inflammatory activity by binding to chemokines. Immunopharmacology, 49(3), 295–306. https://doi.org/10.1016/s0162-3109(00)00244-7

Li, J., Feng, S., Liu, X., Jia, X., Qiao, F., Guo, J., & Deng, S. (2022). Effects of Traditional Chinese Medicine and its Active Ingredients on Drug-Resistant Bacteria. Frontiers in Pharmacology, 13, 837907. https://doi.org/10.3389/fphar.2022.837907

Li, J., Zhang, X., Shen, X., Long, Q., Xu, C., Tan, C., Lin, Y. (2020). Phytochemistry and biological properties of isoprenoid flavonoids from Sophora flavescens Ait. Fitoterapia, 143. https://doi.org/10.1016/j.fitote.2020.104556

Guo, Y., Yin, T., Wang, X., Zhang, F., Pan, G., Lv, H., Wang, X., Orgah, J. O., Zhu, Y., Wu, H. (2017). Traditional uses, phytochemistry, pharmacology and toxicology of the genus Cimicifuga: A review. Journal of Ethnopharmacology, 27, 264-282. https://doi.org/10.1016/j.jep.2017.07.040

Wong, R. W., Hägg, U., Samaranayake, L., Yuen, M. K., Seneviratne, C. J., & Kao, R. (2010). Antimicrobial activity of Chinese medicine herbs against common bacteria in oral biofilm. A pilot study. International Journal of Oral and Maxillofacial Surgery, 39(6), 599–605. https://doi.org/10.1016/j.ijom.2010.02.024

Yoon, S. B., Lee, Y. J., Park, S. K., Kim, H. C., Bae, H., Kim, H. M., Ko, S. G., Choi, H. Y., Oh, M. S., & Park, W. (2009). Anti-inflammatory effects of Scutellaria baicalensis water extract on LPS-activated RAW 264.7 macrophages. Journal of Ethnopharmacology, 125(2), 286–290. https://doi.org/10.1016/j.jep.2009.06.027

Websites

Acne-X Topical. (2024, February 2). Sophora Flavescens (Kushen): Your Path to Acne-Free Skin. Retrieved June 21, 2025, from https://acnextopical.com/blogs/acne/sophora-flavescens-kushen-your-path-to-acne-free-skin

Acne-X Topical. (2024, February 14). The Power of Scutellaria Baicalensis (Baikal Skullcap) Extract in Skincare: Unveiling Its Wonders. Retrieved June 18, 2025, from https://acnextopical.com/blogs/acne/the-power-of-scutellaria-baicalensis-baikal-skullcap-extract-in-skincare-unveiling-its-wonders

AcuMedic. (n.d.). Acne. Retrieved June 16, 2025, from https://clinic.acumedic.com/can-we-help/condition/acne/

Averr Aglow Production. (2023, October 13). Hawthorn Berry and How It Helps Acne. Retrieved June 18, 2025, from https://averraglow.com/blogs/news/hawthorn-berry-and-how-it-helps-acne

Bassi, T. (2022, October 7). 6 Chinese Skullcap Benefits: Dosage & Safety. The Botanical Institute. Retrieved June 18, 2025, from https://botanicalinstitute.org/chinese-skullcap/

Better Health Channel. (2014, August 31). Chinese herbal medicine. Retrieved June 18, 2025, from https://www.betterhealth.vic.gov.au/health/conditionsandtreatments/chinese-herbal-medicine

Blake, K. (2024, January 7). Coptis Chinensis Root Extract: 5 Scientific Skin Benefits. Cosmotality. Retrieved June 18, 2025, from https://cosmotality.com/ingredients/coptis-chinensis-root-extract-skin-benefits/

Blake, K. (2024, January 26). Angelica Root Extract: 5 Scientific Skin Benefits. Cosmotality. Retrieved June 21, 2025, from https://cosmotality.com/ingredients/angelica-root-extract-skin-benefits/

Botanical Cube. (2023, September 26). Honeysuckle Flower Extract In Skin Care. Retrieved June 21, 2025, from https://www.botanicalcube.com/news/honeysuckle-flower-extract-in-skin-care-71346077.html

Chinese Herbs. (2020, September 22). Coptis General Facts. Retrieved June 18, 2025, from https://www.chinese-herbs.org/coptis-chinenses/

Cleveland Clinic. (2023, January 4). Acne. Retrieved June 16, 2025, from https://my.clevelandclinic.org/health/diseases/12233-acne

Cleveland Clinic. (2023, June 29). What Is Your Skin’s pH and Why Does It Matter? Retrieved June 22, 2025, from https://health.clevelandclinic.org/what-is-skin-ph

Deascal. (2024, October 15). Sophora Flavescens Root Extract: An In-Depth Look at Its Role in Cosmetics. Retrieved June 21, 2025, from https://www.deascal.com/ingredient-information/sophora-flavescens-root-extract/

Eastential. (2016, November 10). Acne - Western Medicine vs Chinese Medicine. Retrieved June 16, 2025, from https://www.eastential.com.au/news/2016/8/25/acne-western-medicine-vs-chinese-medicine

Ferguson, S. (n.d.). Ingredient Spotlight: Why the Many Skin Care Benefits of Honeysuckle are as Sweet as its Scent. The Klog. Retrieved June 21, 2025, from https://theklog.co/honeysuckle-skin-benefits/

Greensky Biological Tech. (2024, November 11). What is sophora flavescens root extract and why is it used on the skin? Retrieved June 21, 2025, from https://www.greenskybio.com/blog3/what-is-sophora-flavescens-root-extract-and-why-is-it-used-on-the-skin.html

Greensky Biological Tech. (2024, November 12). What is hawthorn extract and why is it used on the skin? Retrieved June 18, 2025, from https://www.greenskybio.com/blog3/what-is-hawthorn-extract-and-why-is-it-used-on-the-skin.html

Greensky Biological Tech. (2024, November 13). Sophora flavescens root extract: Benefits and consumption guidelines. Retrieved June 21, 2025, from https://www.greenskybio.com/CoixSeedExtract/sophora-flavescens-root-extract-benefits-and-consumption-guidelines.html

Greensky Biological Tech. (2024, December 19). Sophora flavescens Root Extract: A Versatile Ingredient for Multiple Applications. Retrieved June 21, 2025, from https://www.plantextractwholesale.com/blog3/sophora-flavescens-root-extract-a-versatile-ingredient-for-multiple-applications.html

Kootenay Columbia College. (2018, August 21). The Treatment of Acne with Chinese Medicine. Retrieved June 17, 2025, from https://kootenaycolumbiacollege.com/the-treatment-of-acne-with-chinese-medicine/

Lang, A. (2023, October 30). 9 Impressive Health Benefits of Hawthorn Berry. Healthline. Retrieved June 18, 2025, from https://www.healthline.com/nutrition/hawthorn-berry-benefits

McCoy, A. (n.d.). Ku Shen: Benefits, Side Effects, and Dosage. The Health Clique. Retrieved June 21, 2025, from https://thehealthclique.com/ku-shen-benefits-side-effects-and-dosage/

Medicinal Herbs. (2018, May 4). Dang Gui (Radix Angelica Sinensis): The Benefits, Dosage & Side Effects. Retrieved June 21, 2025, from https://medicinalherbals.net/dang-gui/

National Cancer Institute. (n.d.). Layers of the Skin. Retrieved August 25, 2025, from https://training.seer.cancer.gov/melanoma/anatomy/layers.html

National Institute of Arthritis and Musculoskeletal and Skin Diseases. (2023, July). Acne. Retrieved June 16, 2025, from https://www.niams.nih.gov/health-topics/acne

Naturopath Herbals. (2022, July 1). Baical Skullcap Benefits | Immune Balancing & Anti-Allergy. Retrieved June 18, 2025, from https://naturopathherbals.com/en-ca/blogs/herbal-guide/baical-skullcap-benefits-immune-balancing-anti-allergy

New Path Health and Wellness. (n.d.). Chinese Goldthread: A Timeless Herbal Remedy with Modern Benefits. Retrieved June 18, 2025, from https://www.newpathhw.com/post/chinese-goldthread-a-timeless-herbal-remedy-with-modern-benefits

Pedroja, Cammy. (2023, July 28). What Is Sebum and Why Does It Build Up on Skin and Hair? Healthline. Retrieved June 22, 2025, from https://www.healthline.com/health/beauty-skin-care/sebum

Redmond, M. (2024, April 3). Yin Chen: Benefits, Dosage, Side Effects, Drug Interactions, And Other Important Information. Nootropics Planet. Retrieved June 18, 2025, from https://nootropicsplanet.com/yin-chen/

Regan, K. (n.d.). Dandelion Root for Reduced Acne Symptoms. Our Everyday Life. Retrieved June 18, 2025, from https://oureverydaylife.com/110841-dandelion-root-acne.html

Serene Skin Lab. (2021, March 3). Benefits of the Honeysuckle Flower. Retrieved June 21, 2025, from https://sereneskinlab.com/blogs/beauty-tips/benefits-of-the-honeysuckle-flower

Simply and Naturally. (n.d.). Dandelion Root Extract For Acne. Retrieved June 18, 2025, from https://www.simplyandnaturally.com/dandelion-root-extract-for-acne/

Sreenivas, S. (2023, July 23). What to Know About Your Skin Barrier and How to Protect It. WebMD. Retrieved June 22, 2025, from https://www.webmd.com/skin-problems-and-treatments/skin-barrier-what-to-know

TCMLY. (n.d.). Bai Hua She She Cao (Oldenlandia Diffusa or Hedyotis Diffusa). Retrieved June 18, 2025, from https://tcmly.com/bai-hua-she-she-cao/

Tomorrowlabs. (2023, February 16). Angelica Root: The Ancient Herb Making a Comeback in Modern Skincare. Retrieved June 21, 2025, from https://tomorrowlabs.eu/blogs/news/angelica-root-the-ancient-herb-making-a-comeback-in-modern-skincare?srsltid=AfmBOoqUkoCVTdA_Khw9_Am7zxu6b4Sf9iLuFKZ4ZPtR_eM6nGqVcnmo

Truly Beauty. (2020, August 18). Honeysuckle Flower Extract for Skin: 5 of its Sweetest Benefits. Retrieved June 21, 2025, from https://www.trulybeauty.com/blogs/skincare/honeysuckle-flower-extract-for-skin-5-of-its-sweetest-benefits

Vadsmiya, H. (2017, October 5). 10 Effective Chinese Herbal Remedies for Acne. Plum Dragon Herbs. Retrieved June 21, 2025, from https://plumdragonherbs.com/blogs/news/10-effective-chinese-herbal-remedies-for-acne

Zhang, M. (2024, September 3). Sheng Ma (升麻): What Is It, Benefits, and Uses. Health Facts Time. Retrieved June 18, 2025, from https://healthfactstime.com/chinese-medicine/sheng-ma/

Zhang, M. (2025, March 8). Capillary Wormwood (Yin Chen): What It Is, Benefits, and More. Health Facts Time. Retrieved June 18, 2025, from https://healthfactstime.com/chinese-medicine/capillary-wormwood-yin-chen

Zilch Formulas. (2022, August 19). Does Chinese Medicine Work for Acne? Retrieved June 16, 2025, from https://shop.zilchformulas.com/blogs/news/does-chinese-medicine-work-for-acne?shpxid=028ce582-5a3c-4d80-829c-e11d135946b2

Images

Dried Goldthread. [Photograph]. vital.ly. Retrieved March 30, 2026, from https://www.vital.ly/trc/Goldthread/monograph=614/?srsltid=AfmBOopLwmLNcBqRutCFIJByZLyd5hKtf1xpHF882DQTZLvj3W3HXhEM

Dried Hawthorn. [Photograph]. Amazon.com. Retrieved March 30, 2026, from https://www.amazon.ca/Dried-Hawthorn-Slices-Shanzha-3-53oz/dp/B0DDL7LXW1?th=1

Dried Honeysuckle Flower. [Photograph]. Etsy.com. Retrieved March 30, 2026, from https://www.etsy.com/ca/listing/830282784/dried-honeysuckle-flowers-herbal-tea

Dried Snaketongue Grass. [Photograph]. Taobao.com. Retrieved March 30, 2026, from https://world.taobao.com/item/dFB5RWxrWFJ3enhMemJBeERXNFFRdz09.htm?spm=a21wu.10013406-ca.taglist-content.1.3c6148ab8qJlb8

The herborium. (2023, July 16). Angelica Root. [Photograph]. Retrieved March 30, 2026, from https://theherborium.com.au/blogs/journal/angelica-root-dang-gui-the-fertility-herb?srsltid=AfmBOooJBgpAENWnpdG-R9ieiBh82KwNznJqu4WpggoiYZoSRzHOJqOs

Köhler, H. A. (1887-1898). Taraxacum officinale. [Illustration]. Köhler's Medizinal-Pflanzen.

Ku Shen. [Photograph]. The Herb Depot. Retrieved March 30, 2026, from https://theherbdepot.ca/products/ku-shen-sophora-root

News Staff. (2016, April 11). Dried Chinese skullcap. [Photograph]. Sci.News. Retrieved March 30, 2026, from https://www.sci.news/biology/chinese-skullcap-scutellaria-baicalensis-anti-cancer-compounds-03775.html

Sheng Ma. [Photograph]. Alibaba.com. Retrieved March 30, 2026, from https://www.alibaba.com/product-detail/Sheng-Ma-High-Quality-Crude-Herb_1600396579597.html?spm=a2700.7724857.0.0.1c2939dbW9JVVI

Yin Chen. [Photograph]. The Herb Depot. Retrieved March 30, 2026, from https://theherbdepot.ca/products/mian-yin-chen-spring-capillary-wormwood

Videos

Yip, Edric. (2020, September 26). Tutorial on creating reusable artifical [sic] skin by gelatin-glycerol mould. [Video]. YouTube. Retrieved September 8, 2024, from https://youtu.be/Sy7Li49fKUY?si=x82VW2AH3owoqfRF

Applications Used

ImageJ (oil level analysis)

jamovi (data analysis)

ChatGPT (refining experimental design, data analysis and writing/wording)

Microsoft Excel (spreadsheets for organizing data, creating graphs)

Microsoft Word (logbook, references)

Microsoft PowerPoint (poster, ProjectBoard)
