Investigating the Combination of Hydrogel Scaffolds and Ultrasound Stimulation on Cartilage Injuries

Transcript:

Each year, over one million Canadians are affected by joint and cartilage-related conditions. Why? Because cartilage lacks a direct blood supply, forcing essential nutrients to diffuse slowly to damaged areas.

Current treatments help manage symptoms, but recovery is still often slow and prone to reinjury. So how can we improve nutrient transport and support faster healing?

In my project, I investigated whether combining a hydrogel-like scaffold with ultrasound could enhance nutrient diffusion in avascular tissue. I developed a tissue model and tested three conditions: no treatment, scaffold only, and scaffold with ultrasound. While the scaffold improved diffusion, the combined treatment produced the greatest and fastest nutrient movement. This is likely due to ultrasound-induced fluid motion, which enhances transport beyond passive diffusion.

These findings suggest that integrating structural and mechanical approaches may create a more favorable environment for healing, representing a promising step toward improving recovery and potentially contributing to future strategies for conditions like osteoarthritis.

Thank you.

Why Cartilage Injuries?

As a basketball player, I experienced a meniscus injury and saw firsthand how difficult it is to recover from cartilage tears. Even with treatment, the process was long, physically demanding, and isolating. This led me to question why healing takes so long and whether it could be improved.

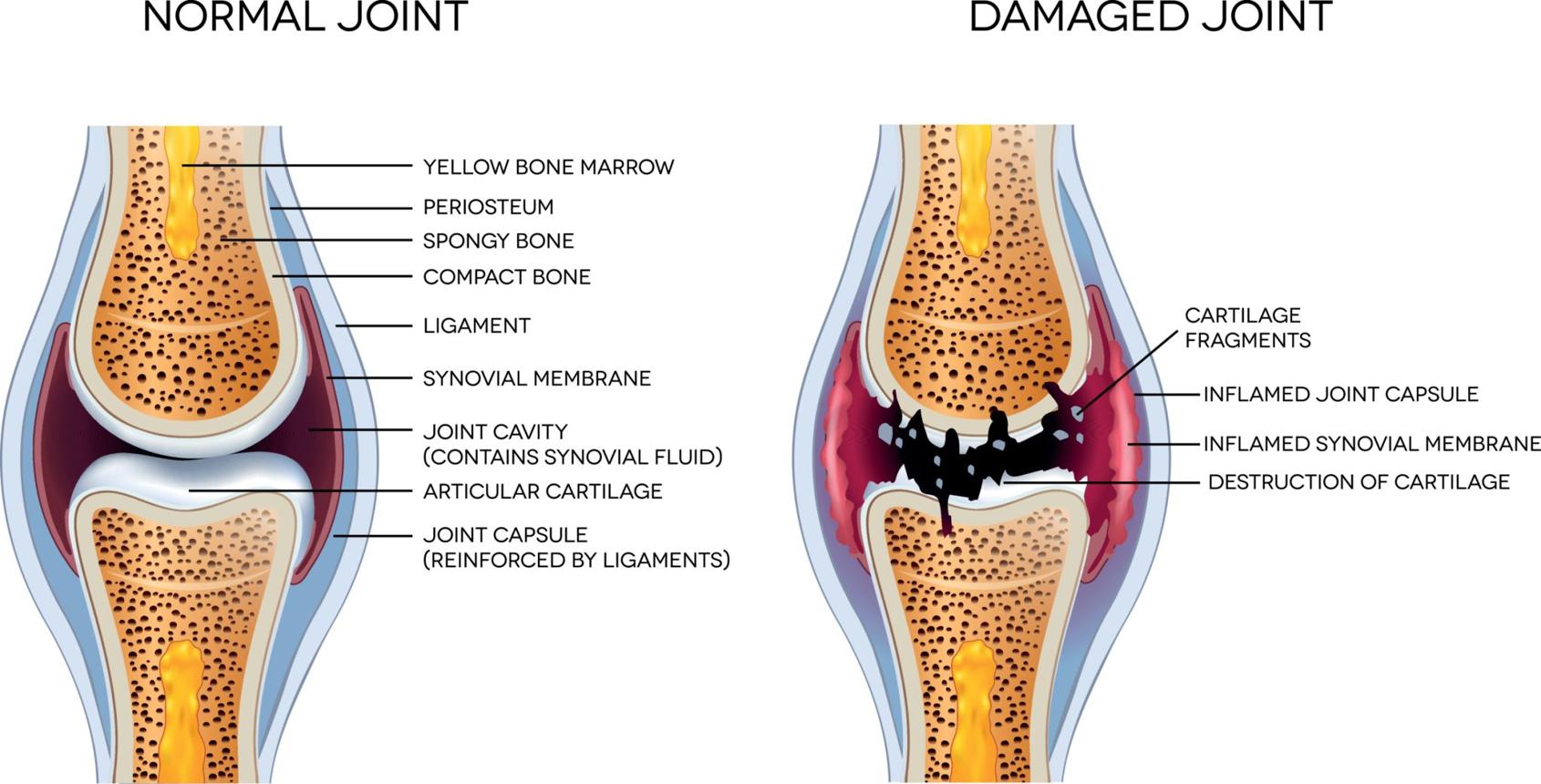

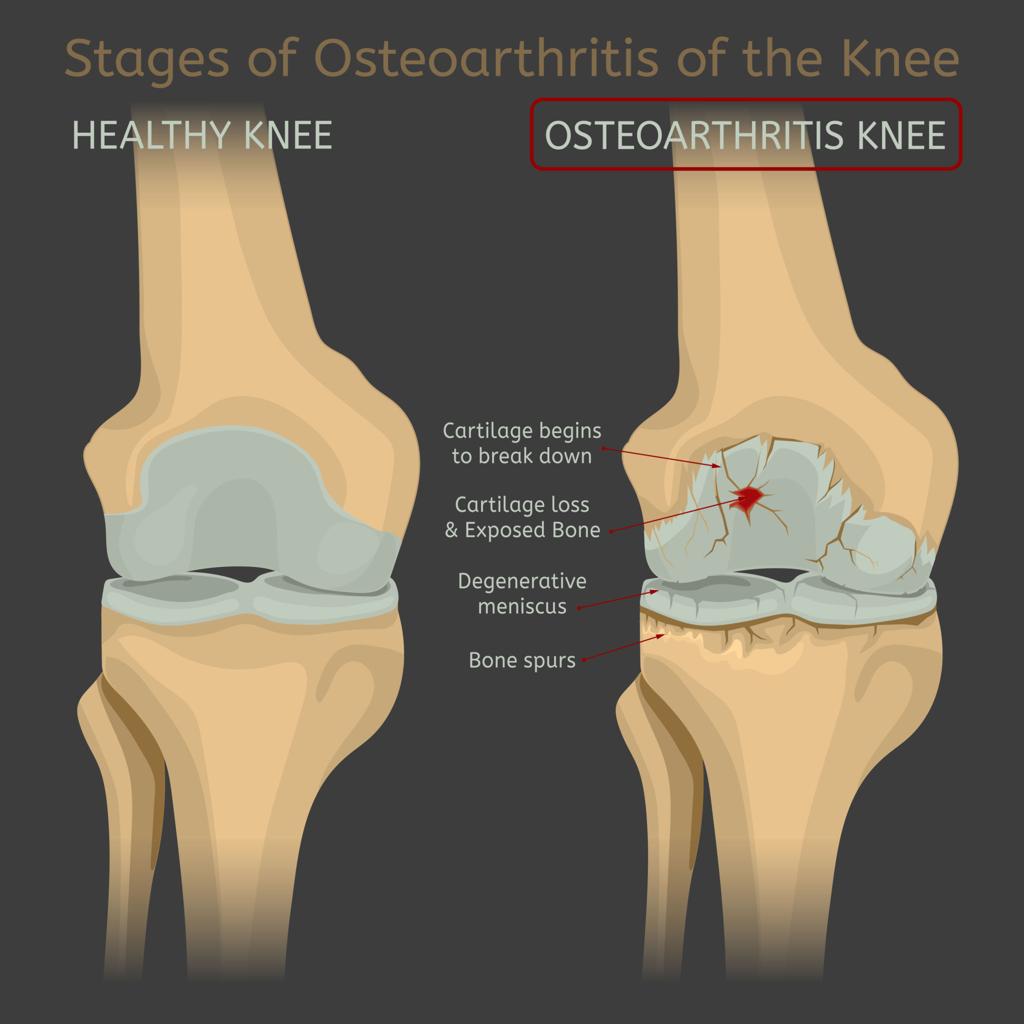

Cartilage is an avascular tissue, meaning it lacks a direct blood supply. As a result, essential nutrients cannot easily reach injured areas, leading to slow and often incomplete healing. Over time, this can lead to chronic pain, reduced mobility, and conditions such as osteoarthritis, affecting athletes, aging populations, and individuals recovering from joint injuries.

What is the Problem?

Current treatments, including physiotherapy and surgery, can be invasive, time-consuming, and do not directly address limited nutrient transport within cartilage. While hydrogels and therapeutic ultrasound exist, they are typically used separately and may not fully maximize their combined potential.

Purpose and Research Question?

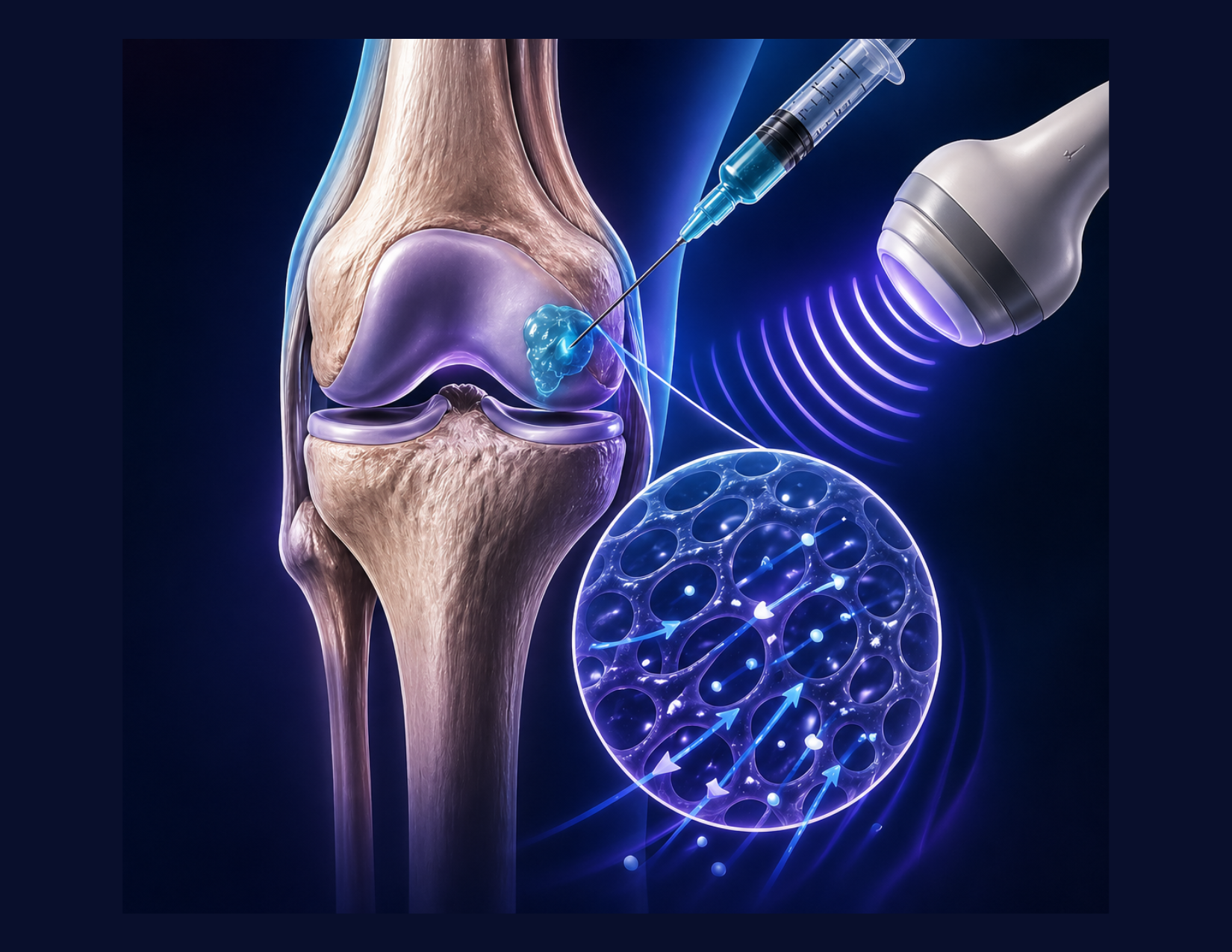

This project investigates whether combining a scaffold (hydrogel-like structure) with ultrasound can improve nutrient transport in avascular tissue. While hydrogels and therapeutic ultrasound are both used in medical applications, their integration to enhance nutrient transport in avascular tissue remains largely unexplored, forming the foundation of this investigation.

Research Question:

Can the combination of a scaffold and ultrasound enhance nutrient diffusion more effectively than either method alone?

What is the Impact of this Research?

Improving nutrient movement may support faster, less invasive recovery strategies, benefiting athletes and patients while contributing to future approaches for managing long-term joint conditions.

Background Research

Background research was conducted by reviewing scientific literature on cartilage biology, hydrogel scaffolds, and ultrasound-driven transport in avascular tissues. Relevant and trustworthy sources were identified by focusing on peer-reviewed studies, credible publications, and consistent findings across sources to ensure accuracy and reliability.

Experimental Design

To model avascular tissue, gelatin was used as a controlled medium to simulate a dense structure where nutrients must diffuse. A standardized incision was made in each sample to represent a cartilage injury.

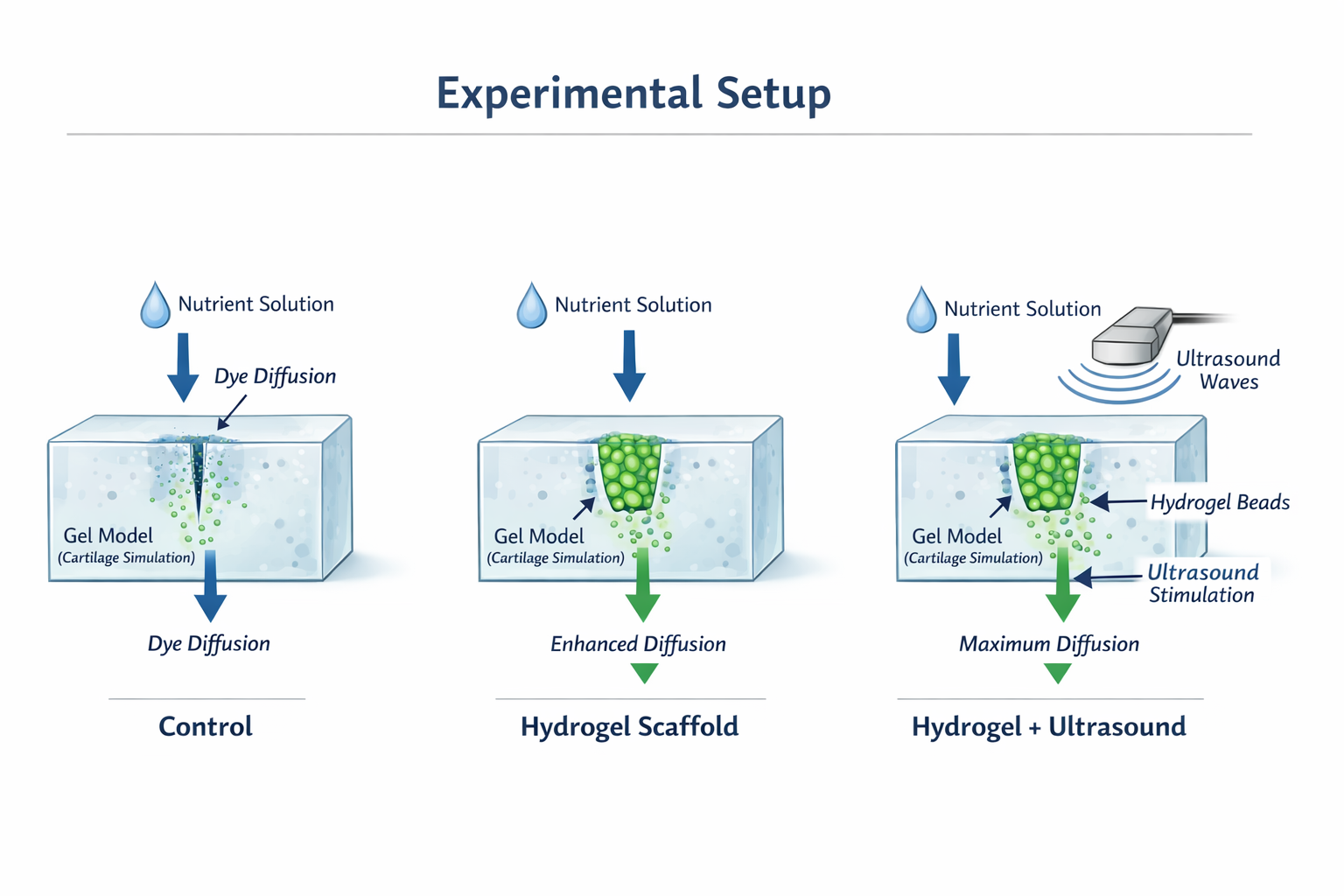

Three experimental conditions were tested:

Control: no scaffold or ultrasound

Scaffold only: sponge material used as a hydrogel analogue

Scaffold + ultrasound: scaffold combined with ultrasound treatment

Each condition was tested in five sets of three samples, and the results were averaged to improve reliability and reduce random error. The jars, used as molds for the samples, had varying heights and widths to ensure accurate results across different structures.

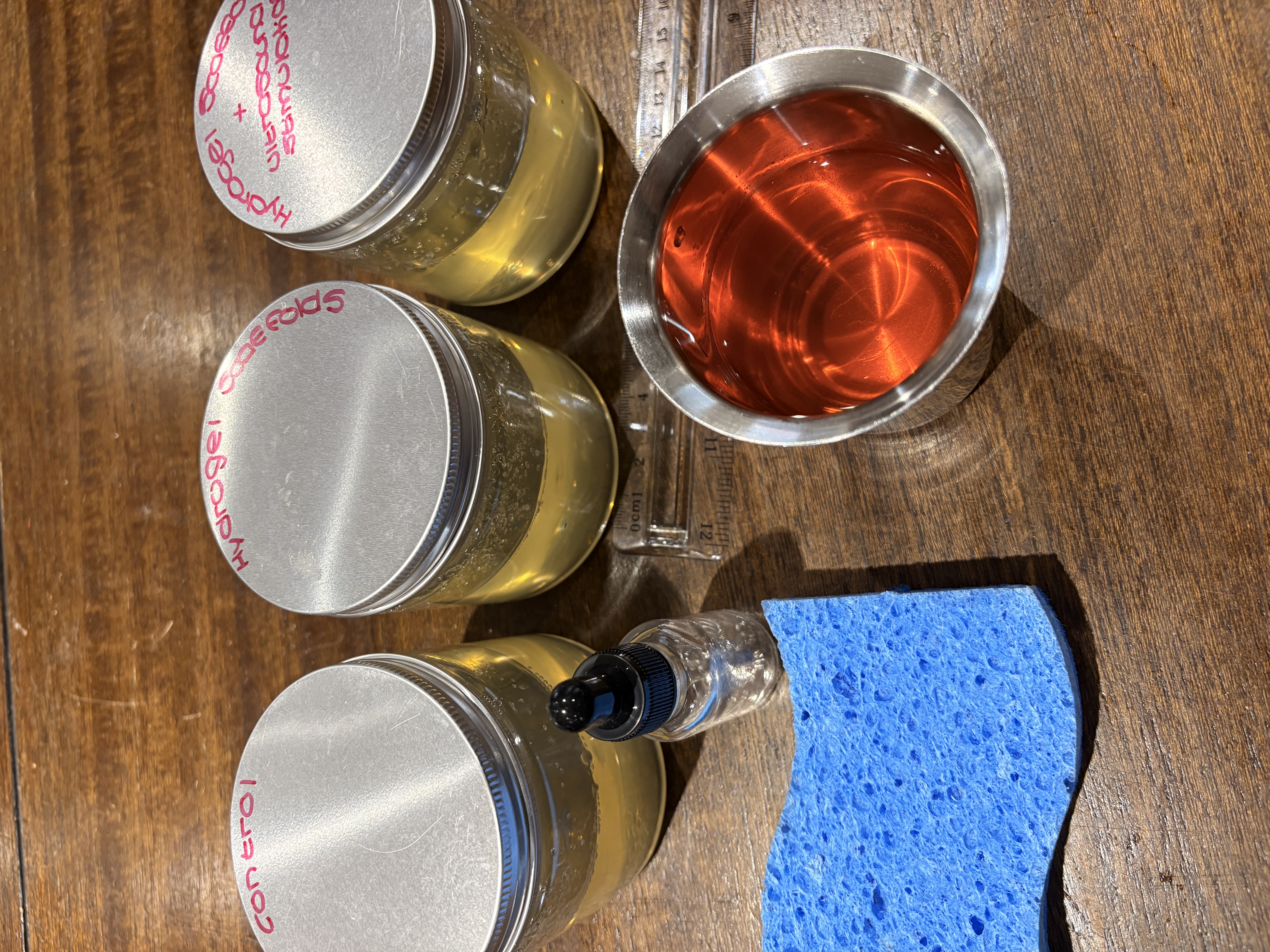

Materials Used

Gelatin (tissue analogue)

Sponge (scaffold analogue)

Ultrasound device

Dye solution (nutrient model)

Ruler (mm measurement)

Sample molds (various heights and widths)

Procedure and Data Collection

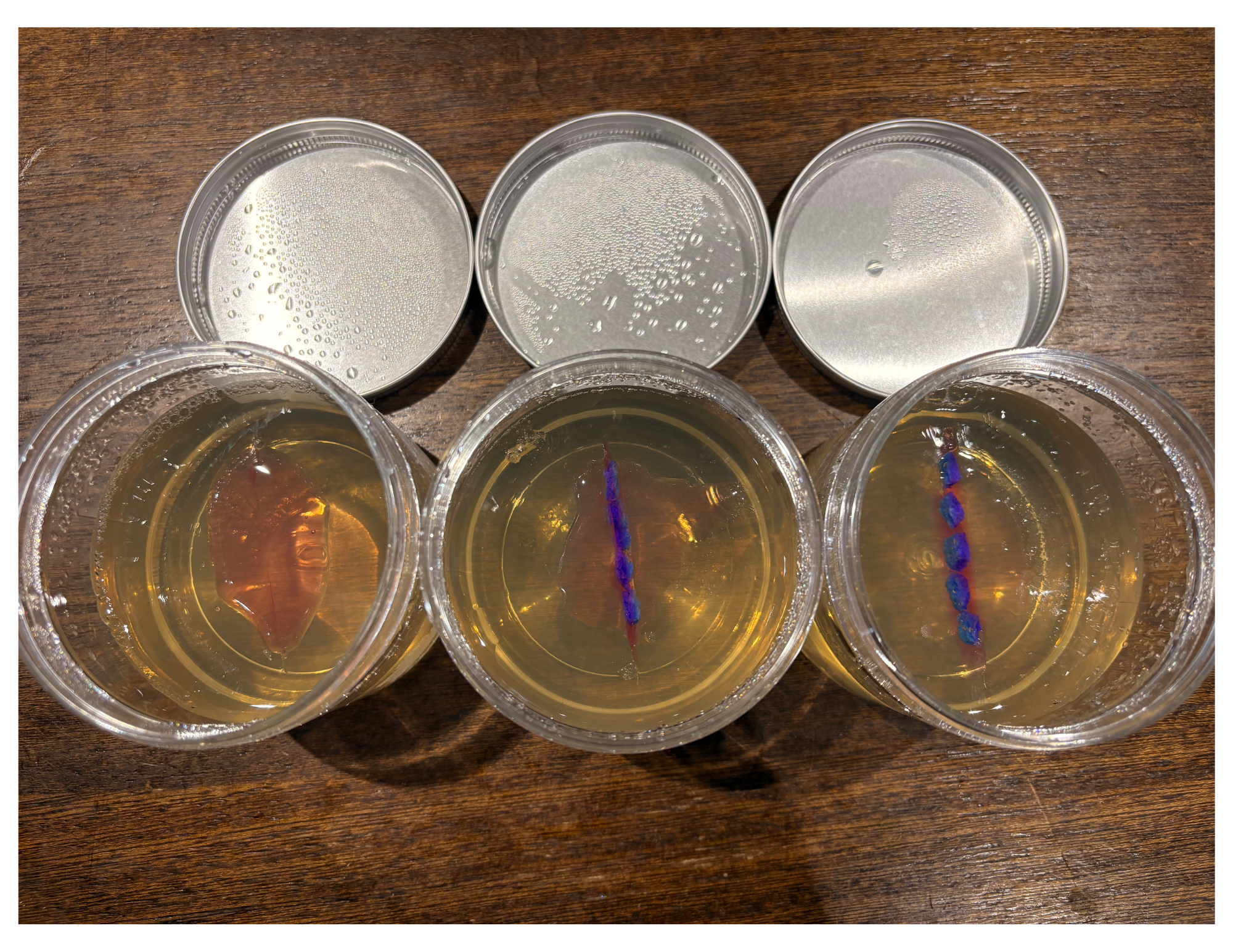

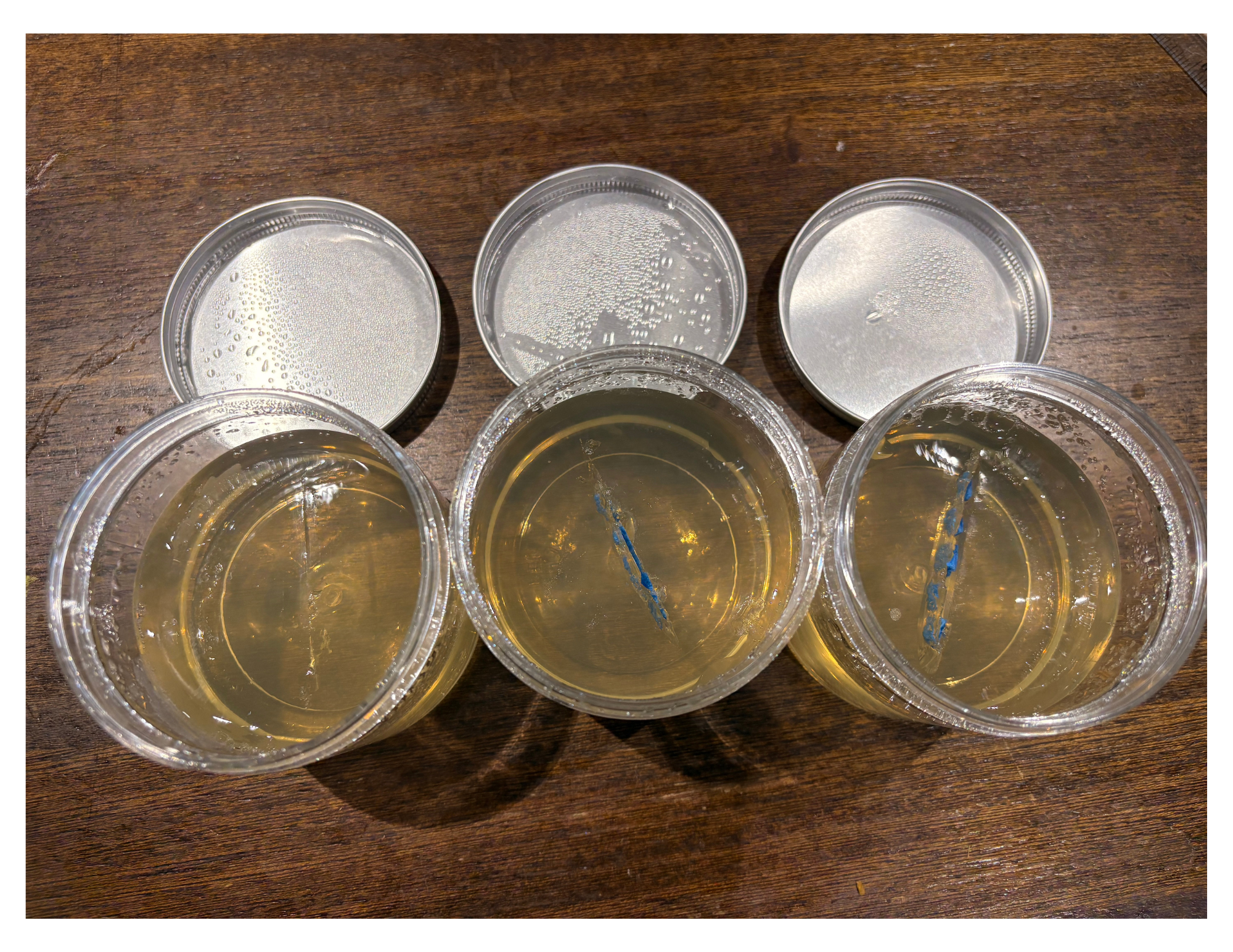

A dye solution was applied to each model to simulate nutrient transport. Diffusion distance was measured in millimeters at consistent time intervals.

To ensure valid comparisons:

Sample size and shape were standardized

Dye volume was kept constant

Time intervals were controlled

Ultrasound application was consistent across trials

Controlled Variables and Testing

The independent variable was the treatment condition, which included three groups: control (injury only), scaffold only, and scaffold combined with ultrasound. The dependent variable was diffusion distance.

Controlled variables included sample size and shape, dye volume, time intervals, and consistent ultrasound application, ensuring that any differences observed were due to the treatment conditions.

This simplified model allowed for focused analysis of transport behavior without the complexity of living systems.

Results

Nutrient diffusion increased over time across all experimental conditions, but clear differences were observed between groups. The control condition (no scaffold, no ultrasound) consistently showed the lowest diffusion at each time interval.

The addition of a scaffold alone increased diffusion distance, indicating that a porous structure improves passive nutrient transport. However, the scaffold + ultrasound condition demonstrated the greatest diffusion at all measured time points.

Across trials, the scaffold + ultrasound group showed both:

a greater overall diffusion distance

a faster rate of nutrient movement over time

This trend was consistent across all repetitions, supporting the reliability of the results.

Analysis

The improved performance of the scaffold group can be attributed to its porous structure, which provides pathways for fluid movement and retention.

The additional increase observed with ultrasound is likely due to acoustic streaming and microvibrations, which enhance fluid movement within the material. These effects reduce resistance to diffusion and promote more uniform nutrient distribution.

Together, these findings suggest that ultrasound enhances transport beyond passive diffusion, particularly when combined with a scaffold that supports fluid flow.

Graphical Interpretation

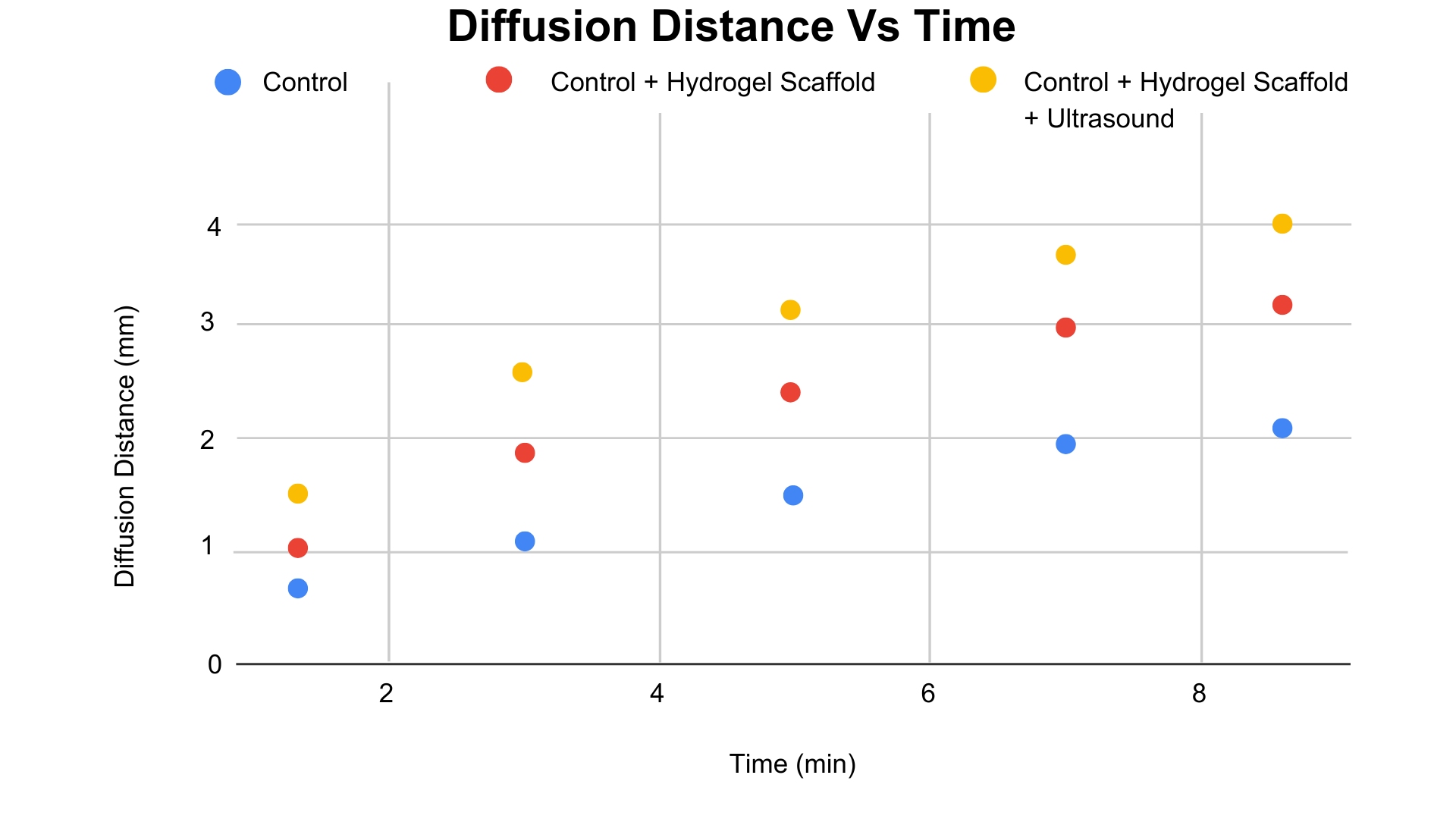

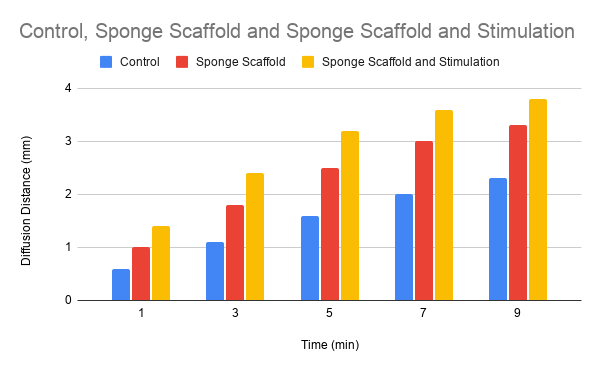

Results were summarized using graphs showing diffusion distance (mm) over time (min) for each condition. This method was chosen to clearly compare both:

total diffusion

rate of diffusion

Graphical representation allows for easy visualization of trends and differences among the three groups over time.

Key Findings

The combination of a scaffold and ultrasound resulted in the most effective nutrient transport, outperforming both the control and scaffold-only conditions.

Conclusion from Results

This study demonstrates a proof-of-concept transport mechanism, where combining structural support with mechanical stimulation significantly enhances nutrient movement in an avascular tissue model. These findings suggest that integrating a hydrogel scaffold with ultrasound stimulation may create a more favorable environment for cell survival, repair, and regeneration, although further biological testing is required.

Discussion and Implications

This study demonstrates that combining structural support with mechanical stimulation can significantly enhance nutrient transport in avascular tissue models. By improving diffusion, this approach addresses one of the primary limitations of cartilage healing: the inability to efficiently deliver essential molecules to damaged areas.

These findings suggest that integrating hydrogel scaffolds with ultrasound may help create a more supportive environment for cell survival and repair. While this study does not directly measure biological healing, it provides evidence that transport conditions, an essential factor in tissue regeneration, can be improved through combined methods.

Compared to current treatments, which often focus on physical repair or symptom management, this approach targets a fundamental limitation of cartilage: restricted nutrient access. Enhancing this process could support more effective recovery strategies that are less invasive and better aligned with the body’s natural healing mechanisms.

Broader Impact?

This research has potential applications in sports medicine, rehabilitation, and long-term joint health. Improving nutrient delivery may benefit athletes recovering from injury, as well as individuals at risk of degenerative conditions such as osteoarthritis.

Conclusion

Overall, this project highlights the importance of addressing transport limitations in avascular tissues and suggests that combining scaffold-based and ultrasound approaches may represent a promising direction for future cartilage repair strategies. Further research is required to evaluate biological effects and clinical feasibility.

Future Directions

This study can be extended by incorporating living cartilage cells (chondrocytes) to evaluate whether improved diffusion leads to measurable biological repair. Using clinically relevant hydrogels (e.g., collagen or alginate) instead of a scaffold analogue would improve biological accuracy.

Future work should also focus on optimizing ultrasound parameters, including frequency, intensity, and duration, to maximize transport while ensuring cell safety.

Additionally, testing this approach in more complex tissue models or under mechanical loading conditions would better simulate real joint environments and evaluate its potential for clinical application.

I would like to sincerely thank my science fair mentors and coordinators, Mr. Jonathan Pittman and Mr. Adam Rhodes, for their guidance and support throughout this project. Their feedback helped refine my research question and improve the clarity of my design and presentation.

I am grateful for my teachers, guiding mentors, and regional fair judges who offered advice on the experimental design and encouraged me to think critically about my results and their limitations. A special thank you to Ms. Sameraa Jomha, Chana Trudel, and Tatianna Malmquist, the individuals who gave me the courage to ask “why.”

Lastly, I would like to thank my friends and family for their constant encouragement and support throughout this process, as well as my Slave Lake community for their unwavering presence and kindness.
