Metabolic Priming of Hordeum vulgare for Enhanced Feed Efficiency

Transcript:

Ruminant livestock are surprisingly inefficient digesters. A significant portion of hay energy never gets absorbed, and is locked inside plant cell walls by a lignin barrier their own enzymes cannot penetrate. That undigested material ferments in the hindgut, producing methane.

Synthetic enzyme supplements exist to help, but they're expensive and completely prohibited for organic-certified farms under Canadian law. So I asked whether the barley plant itself could solve this.

When barley germinates, it naturally produces hydrolytic enzymes, and research shows abiotic stress amplifies that response. My question was: does stressing seedlings throughout germination produce measurably elevated enzymatic activity?

I grew four treatment groups, processed the harvested seedlings into a slurry, and ran an in-vitro hydrolysis assay against alfalfa hay at ruminant body temperature, which then became the foundation for SmartSprout, a system that grows higher-enzyme barley fodder by simply changing what goes into the irrigation water. No new equipment, no synthetic inputs. Thank you.

Purpose:

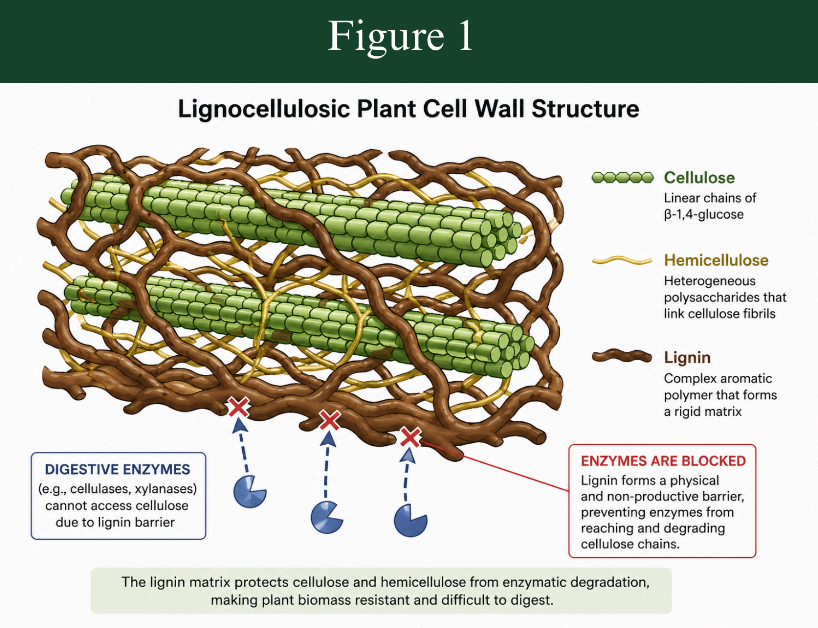

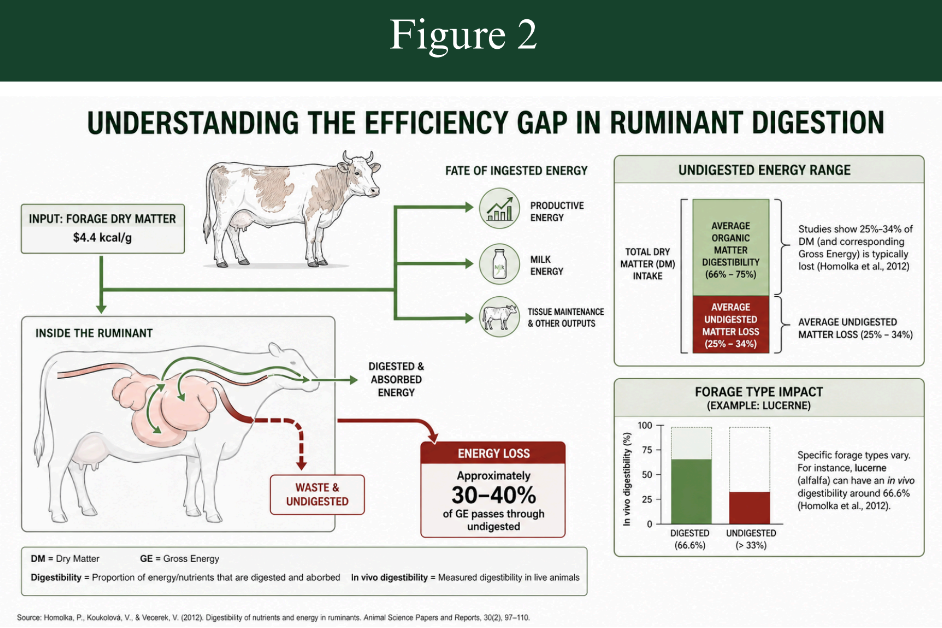

The tough lignin barrier in plant cell walls prevents digestion (Figure 1), causing Canadian livestock farmers to lose up to 30-40% of the nutritional energy in hay (Figure 2).This undigested material not only wastes hundreds of dollars per animal annually, but also ferments in the gut, producing methane, a greenhouse gas 28 times more potent than carbon dioxide. This inefficiency is becoming more critical as hay prices continue to rise across Canada (Figure 3), increasing the economic pressure on farmers to extract more usable energy from every kilogram of feed.

Question:

Currently, the only solution for farmers is to purchase expensive synthetic enzyme supplements, which are banned for organic-certified farms in Canada. This project asked: could the barley plant itself be the solution? Germinating barley naturally produces digestive enzymes to break down its own starch reserves. Research shows that mild environmental stress during germination can amplify this response. The central question was whether growing barley seedlings in various water conditions could trigger this stress response and produce a measurably more effective biological enzyme supplement, using simple and affordable materials.

Beneficiaries:

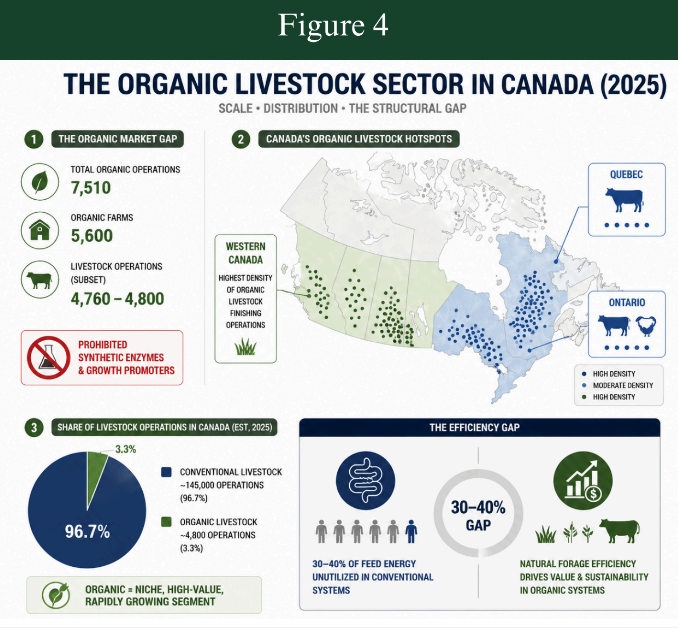

Conventional livestock farmers gain a lower-cost alternative to synthetic supplements. Organic-certified producers, approximately 4,800 operations in Canada currently excluded from enzyme use, gain a viable biological option (Figure 4). The environment benefits through reduced methane emissions from improved feed utilization.

Hypothesis:

Stressed barley seedlings will upregulate hydrolytic enzyme production and increase hay breakdown significantly in an in-vitro enzymatic assay as compared to non-stressed controls.

Background Research:

Research was built on peer-reviewed journals in plant physiology and animal nutrition, including published studies on gibberellic acid enzyme pathways in germinating cereals and validated in-vitro digestion protocols. Sources were selected based on journal reputation, reproducibility of methodology, and whether findings had been cited by subsequent independent research.

Experimental Design:

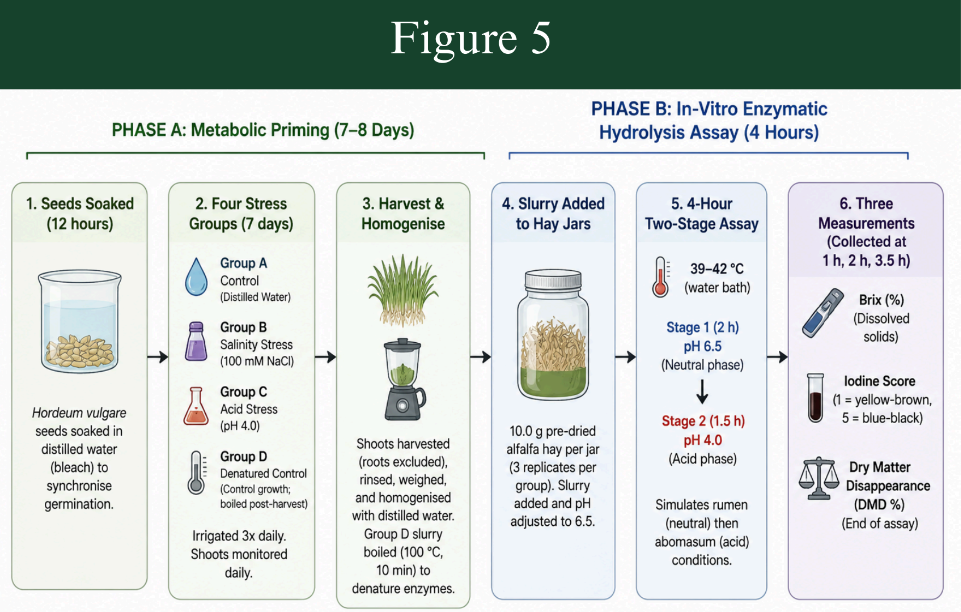

The experiment ran across two phases. Phase A grew four groups of barley seedlings under 3 different water conditions for eight days. Phase B tested how well each group's seedlings broke down hay in a controlled digestion simulation (Figure 5).

Materials:

Key materials included Hordeum vulgare seeds, distilled water, sodium chloride, food-grade acetic acid, alfalfa hay, mason jars, a roaster pan,, an optical refractometer, Lugol's iodine solution, and a kitchen scale accurate to 0.1 grams.

Procedure:

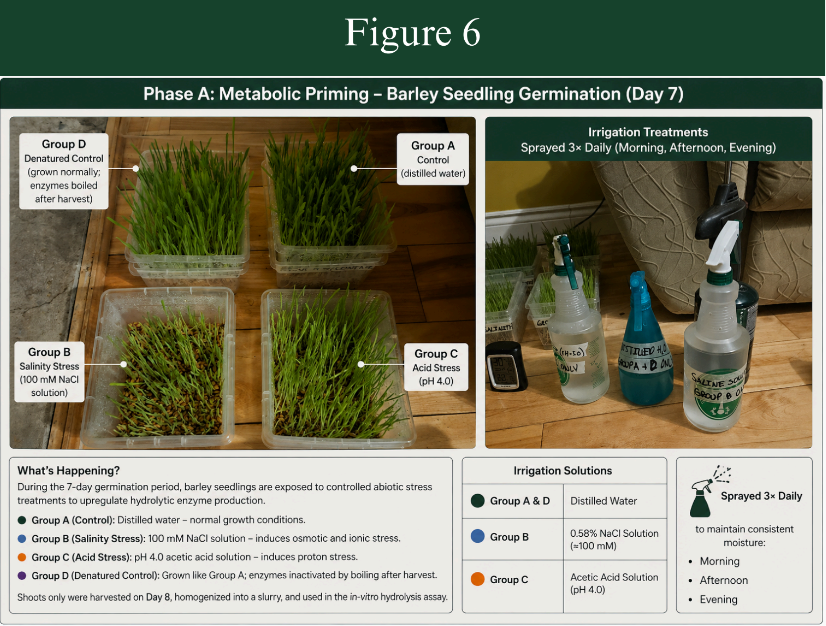

Four groups were grown simultaneously: Group A received plain distilled water throughout. Group B received salt water at 100 mM concentration. Group C received pH 4.0 acid solution for the entire eight-day period which directly models the SmartSprout commercial application. Group D was grown identically to Group A, then boiled after harvest to destroy all enzymes while keeping its nutritional content intact (Figure 6). After harvest, seedlings were blended into a liquid slurry and added to pre-weighed portions of alfalfa hay in sealed jars inside a 39-42°C water bath for four hours (Figure 7).

Data collection:

Measurements were taken at Hours 1, 2, and 3.5. Dissolved solids were measured using a refractometer, starch breakdown was assessed via iodine colour scoring (1-5 scale), and final dry mass was used to calculate digestibility. Each group included three replicates (12 trials total).

Controlling Variables:

Hay mass, slurry volume, water bath temperature, incubation duration, and measurement timing were held constant across all 12 jars throughout the experiment.

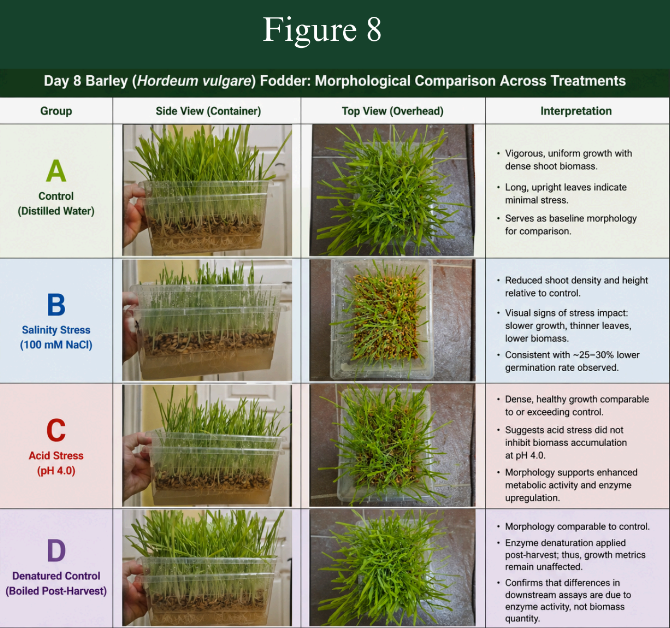

Phase A Overview:

Group A (control) showed stable and uniform germination under distilled water conditions. Group B (salinity stress) exhibited reduced germination rates and weaker seedling growth, while Group C (acid stress) maintained near-control germination but showed signs of metabolic stress. Group D followed control growth conditions but was enzymatically inactivated after harvest to isolate enzyme effects in Phase B (Figure 8).

Phase B Overview:

Three independent measurements were collected across the four-hour assay. All three ranked the treatment groups in the same order: acid stress highest, salinity stress second, unstressed control third, boiled control lowest. Consistency across three separate measurement types is the primary basis for confidence in the findings.

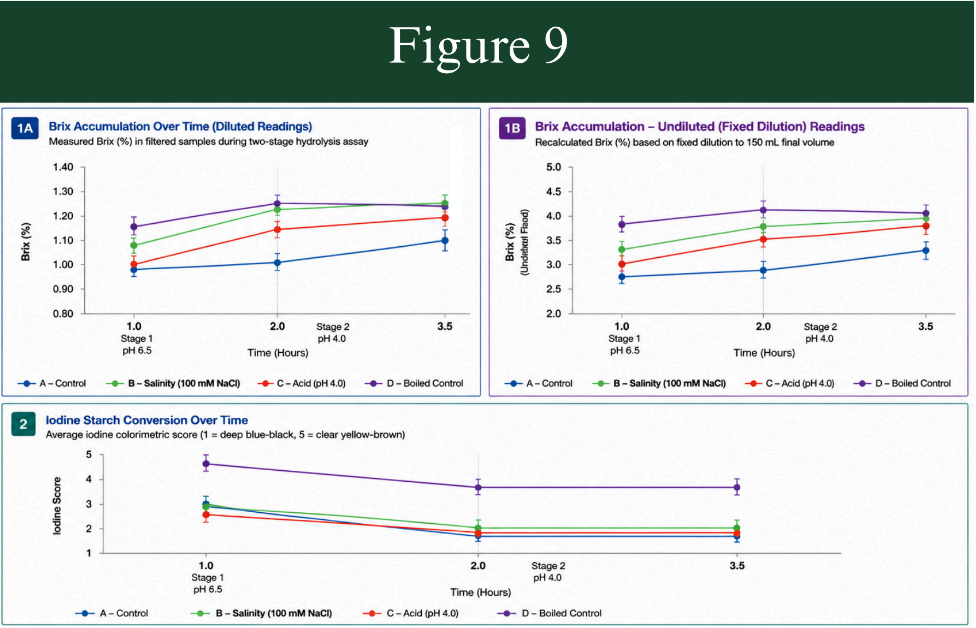

Dissolved Solids:

From Hour 1 to Hour 3.5, total dissolved solids accumulation ranked Group C first, Group B second, Group A third, and Group D last. Group D began with the highest reading of any group at Hour 1 due to boiling rupturing cell membranes and releasing intracellular sugars immediately. However its reading flatlined from Hour 2 to Hour 3.5. Without active enzymes, no new dissolved products were being generated from the hay. Groups B and C continued accumulating throughout all four hours, consistent with active enzymatic breakdown of starch and protein (Figure 9).

Dry Matter Disappearance:

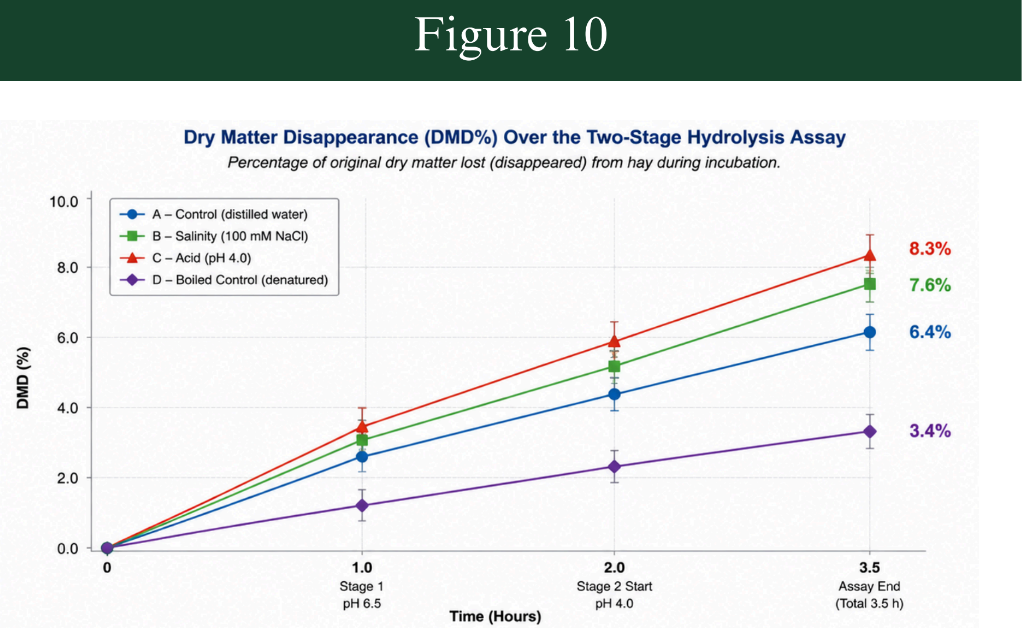

Dry matter disappearance measured what percentage of pre-weighed alfalfa hay was broken down during the simulated digestion period. Group C, the acid-stressed seedlings, achieved 8.3% dry matter disappearance, a 29.7% relative improvement over the unstressed control at 6.4%. Group B, the salt-stressed seedlings, achieved 7.6%, an 18.8% relative improvement (Figure 10). Variation between the three replicates within each group was less than 0.2 percentage points, indicating consistent results within groups.

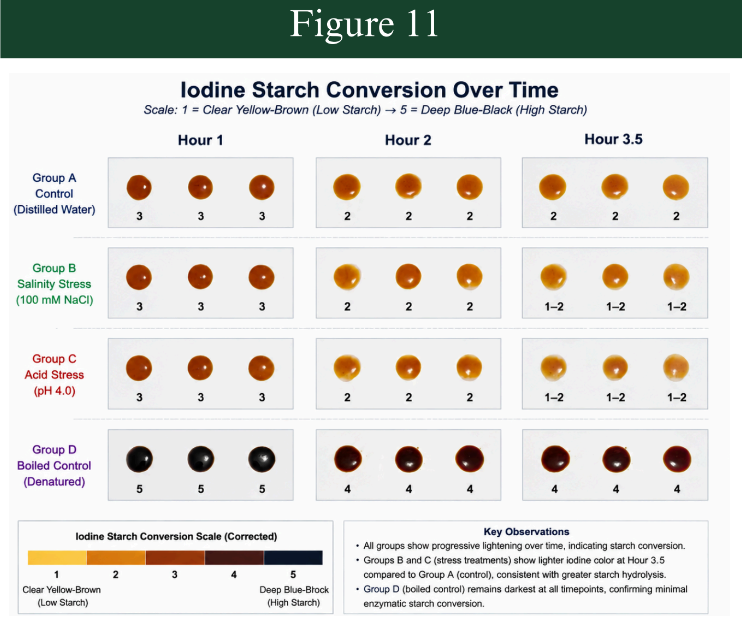

Starch Conversion:

The iodine starch test showed progressive colour lightening across all groups throughout the assay, indicating ongoing starch conversion. Group D maintained the darkest blue-black reaction at all timepoints, consistent with minimal starch breakdown. Groups B and C showed marginally lighter readings than Group A at equivalent timepoints (Figure 11). The colour differences were subtle due to the high ratio of liquid volume to hay mass used in the assay, which diluted the detectable starch signal. The iodine results are treated as corroborating evidence supporting the primary dry matter disappearance finding rather than as standalone proof.

Boiled Control:

Group D produced the most important result in the dataset. Despite containing identical nutritional content to Group A, the same proteins, sugars, and minerals,  it achieved only 3.4% dry matter disappearance. That is nearly half the digestibility of the unstressed control, achieved with equivalent organic matter and zero functioning enzymes. This result isolates enzyme activity as the specific variable responsible for the differences between groups. By subtracting Group D's 3.4% as the non-enzymatic baseline, the enzyme-specific contribution of each group is directly calculable: Group A's enzymes contributed 3.0 percentage points, Group B's contributed 4.2, and Group C's contributed 4.9. Acid-stressed seedlings produced 63% more enzyme-driven digestion than the unstressed control.

SmartSprout Application:

Continuous acid stress during barley germination enhanced hydrolytic enzyme activity, producing the strongest in-vitro digestibility response across all treatment groups. The rank order (C > B > A > D), combined with the reduction in the heat-denatured control, confirms that these improvements are driven by enzymatic catalysis rather than nutrient content alone.

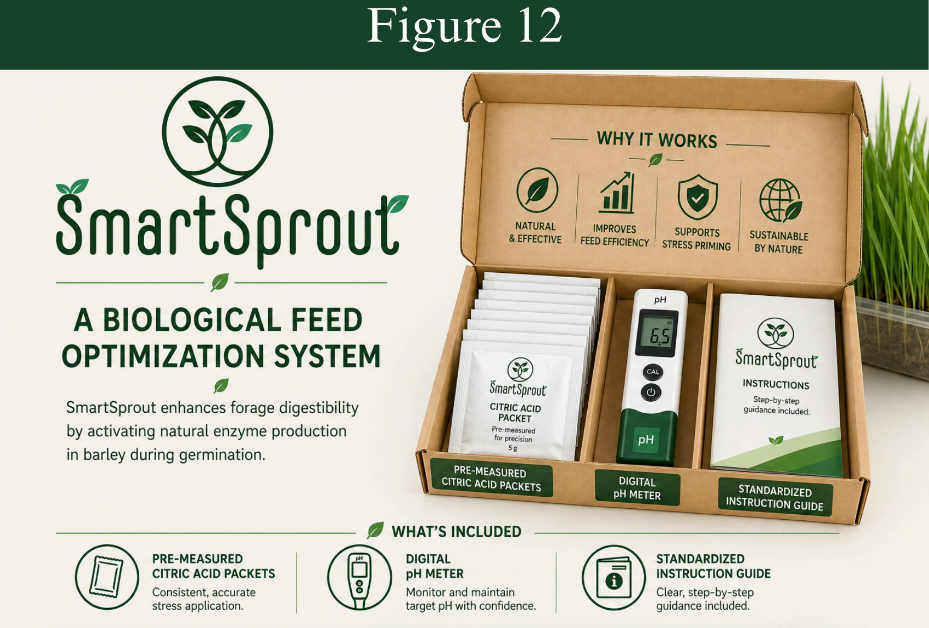

SmartSprout translates this mechanism into a farm-ready system. The product consists of pre-measured citric acid sachets, a digital pH meter, and usage guidelines, allowing farmers to induce controlled acid stress during the barley germination phase (Figure 12). When added to hydroponic irrigation reservoirs, the solution maintains a consistent pH (~4.0), triggering enzyme upregulation throughout the growth cycle (Figure 13).

This method produces barley fodder rich in natural enzymes that support the animal’s digestive process when both feeds are consumed together. The barley provides enzymes that become active in the rumen, where they assist the breakdown of fibrous material like hay. For Canadian farms already using hydroponic fodder systems, this can reduce feed requirements, saving ~1.3 kg of hay per cow per day, or ~$120 per cow each year at current hay prices.

With operating costs under $25 per month and no need for refrigeration or additives, SmartSprout provides a low-cost, scalable alternative to commercial enzyme supplements. It is designed to fit directly into existing hydroponic systems, allowing farms to adopt it without major changes and see immediate economic benefits, while its compatibility with organic production systems also makes it a practical option for improving feed efficiency.

Further Research:

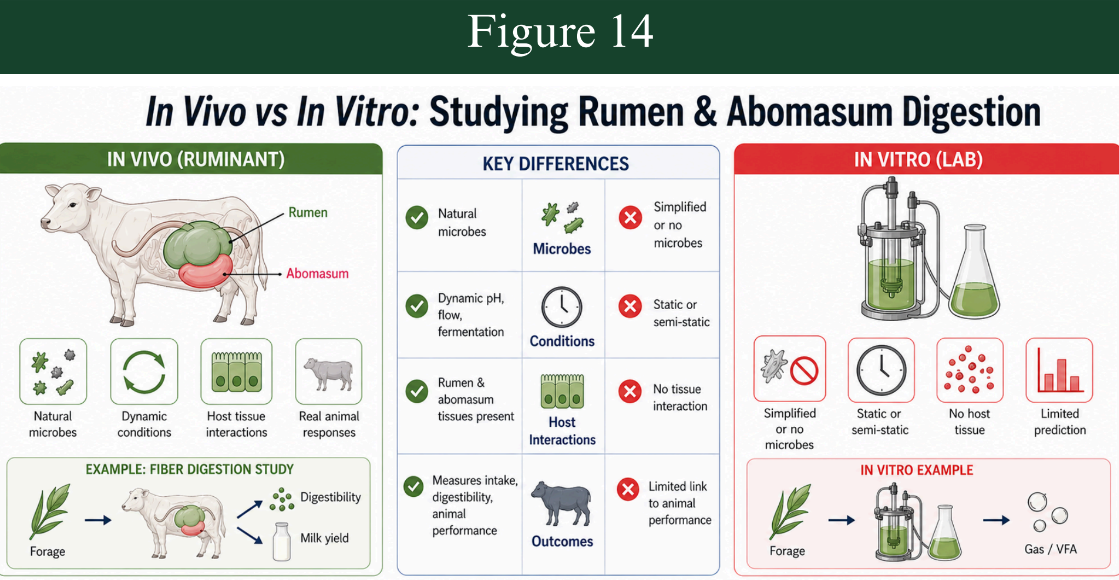

Next steps focus on moving from in-vitro results to real-world testing (Figure 14). The most important validation is an in-vivo feeding trial where ruminants are given hay supplemented with stress-primed barley seedlings that would measure whether the improved enzymatic activity observed in the lab translates into higher feed efficiency, better weight gain, and improved milk production. It would also allow direct observation of changes in animal health and digestion over time. Alongside performance metrics, rumen samples could be analysed to confirm changes in fibre breakdown. These trials would determine whether the system is effective at farm scale.

Special Thanks To:

Dr. Ken Wilson (Dean), and the Faculty of Science, Ontario Tech University, for sponsoring me and providing me with the opportunity to go to the Canada-Wide Science Fair.

Ms. Olaveson, (Coordinator for the Durham Regional Science Fair). and Ms. Jennifer Mackinnon, (CWSF delegate), who helped to guide me through the process of completing the project board and registration.

Judges at the Durham Regional Science Fair who gave amazing feedback and constructive criticism about my project.

My Port Perry High School teachers, including Ms. Nicholishen and Mr. Bailey who have been so supportive and helpful in giving me opportunities to further my learning of science and business!

Finally, another huge thank-you to my parents for all their support and advice!

References:

[1] Fincher, G. B. (1989). Molecular and cellular biology associated with endosperm mobilisation in germinating cereal grains. Annual Review of Plant Physiology and Plant Molecular Biology, 40, 305–346. https://doi.org/10.1146/annurev.pp.40.060189.001513

[2] Gubler, F., Kalla, R., Roberts, J. K., & Jacobsen, J. V. (1995). Gibberellin-regulated expression of a myb gene in barley aleurone cells: Evidence for Myb transactivation of a high-pI α-amylase gene promoter. The Plant Cell, 7(11), 1879–1891. https://doi.org/10.1105/tpc.7.11.1879

[3] Jacobsen, J. V., Pearce, D. W., Poole, A. T., Pharis, R. P., & Mander, L. N. (2002). Abscisic acid, phaseic acid and gibberellin contents associated with dormancy and germination in barley. Physiologia Plantarum, 115(3), 428–441. https://doi.org/10.1034/j.1399-3054.2002.1150313.x

[4] Morita, A., Yanagisawa, O., Takatsu, S., Maeda, S., & Hiradate, S. (2008). Mechanism for the detoxification of aluminium in roots of tea plant (Camellia sinensis (L.) Kuntze). Phytochemistry, 69(1), 147–153. https://doi.org/10.1016/j.phytochem.2007.07.007

[5] Woodger, F. J., Jacobsen, J. V., & Gubler, F. (2004). Gibberellin action in germinated cereal grains. In P. J. Davies (Ed.), Plant hormones: Biosynthesis, signal transduction, action! (3rd ed., pp. 221–240). Springer.

[6] Ma, Y., Wang, P., Wang, M., Sun, M., Gu, Z., & Yang, R. (2019). GABA mediates phenolic compounds accumulation and the antioxidant system enhancement in germinated hulless barley under NaCl stress. Food Chemistry, 270, 593–601. https://doi.org/10.1016/j.foodchem.2018.07.092

[7] Munns, R., & Tester, M. (2008). Mechanisms of salinity tolerance. Annual Review of Plant Biology, 59, 651–681. https://doi.org/10.1146/annurev.arplant.59.032607.092911

[8] Tester, M., & Davenport, R. (2003). Na⁺ tolerance and Na⁺ transport in higher plants. Annals of Botany, 91(5), 503–527. https://doi.org/10.1093/aob/mcg058

[9] Zhu, J. K. (2001). Plant salt tolerance. Trends in Plant Science, 6(2), 66–71. https://doi.org/10.1016/S1360-1385(00)01838-0

[10] Koyama, H., Kawamura, A., Kihara, T., Hara, T., Takita, E., & Shibata, D. (2000). Overexpression of mitochondrial citrate synthase in Arabidopsis thaliana improved growth on a phosphorus-limited soil. Plant and Cell Physiology, 41(9), 1030–1037. https://doi.org/10.1093/pcp/pcd029

[11] Lager, I., Andréasson, O., Dunbar, T. L., Andreasson, E., Escobar, M. A., & Rasmusson, A. G. (2010). Changes in external pH rapidly alter plant gene expression and modulate auxin and elicitor responses. Plant, Cell & Environment, 33(9), 1513–1528. https://doi.org/10.1111/j.1365-3040.2010.02161.x

[12] Shavrukov, Y., & Hirai, Y. (2016). Good and bad aspects of aluminium toxicity and resistance in plants. Journal of Experimental Botany, 67(1), 21–33. https://doi.org/10.1093/jxb/erv425

[13] Brodkorb, A., Egger, L., Alminger, M., Alvito, P., Assunção, R., Ballance, S., Bohn, T., Bourlieu-Lacanal, C., Boutrou, R., Carrière, F., Clemente, A., Corredig, M., Dupont, D., Dufour, C., Edwards, C., Golding, M., Karakaya, S., Kirkhus, B., Le Feunteun, S., … Recio, I. (2019).

INFOGEST static in vitro simulation of gastrointestinal food digestion. Nature Protocols, 14, 991–1014. https://doi.org/10.1038/s41596-018-0119-1

[14] Mertens, D. R. (1997). Creating a system for meeting the fiber requirements of dairy cows. Journal of Dairy Science, 80(7), 1463–1481. https://doi.org/10.3168/jds.S0022-0302(97)76075-2

[15] Pell, A. N., & Schofield, P. (1993). Computerized monitoring of gas production to measure forage digestion in vitro. Journal of Dairy Science, 76(4), 1063–1073. https://doi.org/10.3168/jds.S0022-0302(93)77435-4

[16] Zhang, S., de Jonge, L., de Vries, S., & Gerrits, W. J. J. (2025). Quantifying protein digestion kinetics of feed ingredients using a modified in vitro incubation assay. Journal of Animal Science. https://doi.org/10.1093/jas/skaf190

[17] Shen, R., & Xue, J. (2022). How does starch structure impact amylolysis? Review of current strategies for starch digestibility study. Foods, 11(9), 1223. https://doi.org/10.3390/foods11091223

[18] Moza, P., & Gujral, H. S. (2016). Starch digestibility and glycemic index of gluten-free flours. LWT – Food Science and Technology, 74, 144–149. https://doi.org/10.1016/j.lwt.2016.07.038

[19] Beauchemin, K. A., Colombatto, D., Morgavi, D. P., & Yang, W. Z. (2003). Use of exogenous fibrolytic enzymes to improve feed utilization by ruminants. Journal of Animal Science, 81(14 Suppl 2), E37–E47. https://doi.org/10.2527/animalsci2003.0021x

[20] Ipharraguerre, I. R., & Clark, J. H. (2003). Usefulness of ionophores for lactating dairy cows: A review. Animal Feed Science and Technology, 106(1–4), 39–57. https://doi.org/10.1016/S0377-8401(03)00065-8

[21] Van Soest, P. J. (1994). Nutritional ecology of the ruminant (2nd ed.). Cornell University Press.

[22] Johnson, K. A., & Johnson, D. E. (1995). Methane emissions from cattle. Journal of Animal Science, 73(8), 2483–2492. https://doi.org/10.2527/1995.7382483x

[23] Beauchemin, K. A., Henry Janzen, H., Little, S. M., McAllister, T. A., & McGinn, S. M. (2010). Life cycle assessment of greenhouse gas emissions from beef production in western Canada: A case study. Agricultural Systems, 103(6), 371–379. https://doi.org/10.1016/j.agsy.2010.03.008

[24] Annison, G., & Choct, M. (1991). Anti-nutritive activities of cereal non-starch polysaccharides in broiler diets and strategies minimizing their effects. World's Poultry Science Journal, 47(3), 232–242. https://doi.org/10.1079/WPS19910024

[25] Himmel, M. E., Ding, S. Y., Johnson, D. K., Adney, W. S., Nimlos, M. R., Brady, J. W., & Foust, T. D. (2007). Biomass recalcitrance: Engineering plants and enzymes for biofuels production. Science, 315(5813), 804–807. https://doi.org/10.1126/science.1137016

[26] Canadian General Standards Board. (2020). Organic production systems: General principles and management standards (CAN/CGSB-32.310-2020). Government of Canada. https://publications.gc.ca/collections/collection_2020/ongc-cgsb/P29-32-310-2020-eng.pdf

[27] Canadian Food Inspection Agency. (2022). Canada organic regime: Permitted substances lists. Government of Canada. https://inspection.canada.ca/en/food-labels/organic-products/standards

[28] Agriculture and Agri-Food Canada. (2024). Crop and livestock market outlook. Government of Canada. https://agriculture.canada.ca/en/agricultural-production/market-outlook-report

[29] Statistics Canada. (2024). Farm input prices: Fertilizer and feed prices (Table 32-10-0103-01). Government of Canada. https://www150.statcan.gc.ca/t1/tbl1/en/tv.action?pid=3210010301

[30] Dalhousie University Agri-Food Analytics Lab. (2025). Canada's food price report 2025 (15th ed.). https://cdn.dal.ca/content/dam/dalhousie/pdf/sites/agri-food/EN%20-%20Food%20Price%20Report%202025.pdf

[31] Canadian Organic Trade Association. (2023). Canadian organic market report 2023. https://www.organictrade.com/research-and-reports/

[32] Statistics Canada. (2022). Census of agriculture: Organic farming in Canada (Catalogue no. 95-640-X). Government of Canada. https://www150.statcan.gc.ca/n1/pub/95-640-x/2022001/article/00002-eng.htm

[33] Environment and Climate Change Canada. (2022). Pan-Canadian framework on clean growth and climate change: Fourth annual synthesis report on the status of implementation. Government of Canada. https://publications.gc.ca/collections/collection_2022/eccc/En4-394-2022-eng.pdf

[34] Environment and Climate Change Canada. (2023). Reducing methane emissions from Canada's oil and gas sector and agriculture. Government of Canada. https://www.canada.ca/en/environment-climate-change/services/climate-change/greenhouse-gas-emissions/reducing-methane.html

[35] Intergovernmental Panel on Climate Change. (2021). Climate change 2021: The physical science basis. Contribution of Working Group I to the Sixth Assessment Report. Cambridge University Press. https://doi.org/10.1017/9781009157896

[36] DSM Animal Nutrition. (2023). Ronozyme: Enzyme solutions for animal feed. https://www.dsm.com/anh/products-and-solutions/enzymes.html

[37] AB Vista. (2023). Feed enzyme technology and applications. https://www.abvista.com/feed-enzymes

[38] Sobur, K. A., & Ghosh, P. P. (2025). Hydroponic fodder: A sustainable solution for enhancing livestock nutrition and productivity. Journal of Agricultural Research and Sciences, 2(2). https://www.genesispcl.com/articles/vol-2-issue-2/jars-25-22-0005/

[39] United Nations Development Programme & Republic of Rwanda. (2021). Cost-benefit analysis of hydroponic fodder: Feasibility, sustainability, and scalability in Eastern Rwanda. UNDP.

[40] Lipka, B., & Kwarteng, I. (2023). Driving Canada's agriculture innovation with strategic capital. Farm Credit Canada. https://www.fcc-fac.ca/en/reports/canadian-agriculture-innovation-investment-report

[41] Lugol, J. G. A. (1829). Researches on the use of iodine in medicine. As cited in: Bauer, J. D., Ackermann, P. G., & Toro, G. (1974). Clinical laboratory methods (8th ed.). C.V. Mosby Company.
