Innovative Overspeed Protection Mechanism for VAWTs

Hi, my name is Owen, and my project is building my own model of a Harmony Wind Turbine. My project works to make clean energy for the 200,000 people in Canada who lack access to energy. I got inspired for this project when I was looking through cool energy topics and I found a group of people who were building a Harmony Wind Turbine that could basically run 24/7. I wanted to build my own model, using their ideas and combining them with mine. So I did, and here’s the final result (shows model). So after I built my model, I started testing to see if my model was actually efficient at furling and generating power. The results were good. My model proved it could furl the blades efficiently to reach its target rpm, but power output was a bit low because it was tiny. In the future, I plan to work on creating a bigger model to increase power output.  Thank you!

Around 200,000 people in Canada live in off-grid or remote areas where access to reliable electricity is limited. Many of these communities depend on diesel generators, which are costly, require frequent maintenance, and contribute to environmental pollution. This lack of consistent power can make everyday activities—such as heating, communication, and using basic tools—more difficult, highlighting the need for a more sustainable and dependable energy solution.

To address this issue, I wanted to create a clean energy system that is both reliable and low-maintenance, making it suitable for remote locations. My goal was to design something that could consistently generate power without requiring frequent repairs or complex infrastructure.

During my research, I discovered the Harmony Wind Turbine, an innovative design that improves on traditional wind turbines by adapting to changing wind conditions. One of its key features is a blade-closing mechanism that helps prevent the turbine from spinning too quickly in strong winds, reducing the risk of damage and improving efficiency.

Inspired by this concept, I decided to investigate how the Harmony Wind Turbine works and develop my own version. Through this project, I aimed to create a practical and sustainable energy solution that could help provide more consistent power for off-grid communities.

My procedure focused on designing, building, and testing a working prototype of my wind turbine model. The majority of the process involved 3D modeling each individual component and then producing those parts using a 3D printer. This allowed me to customize the design and make adjustments as needed throughout the project. Once the parts were printed, I assembled them using screws and other basic fasteners to ensure the structure was stable and secure. My overall design was largely based on a full-scale version created by a group that originally inspired my project, and I adapted their ideas to fit a smaller, functional model.

Before building, I conducted background research to better understand how the full-sized turbine works and to identify ways to improve my version. This included researching more efficient motors, better materials, and design features that could increase performance and durability. This research helped guide my design decisions and allowed me to make more informed choices when selecting components.

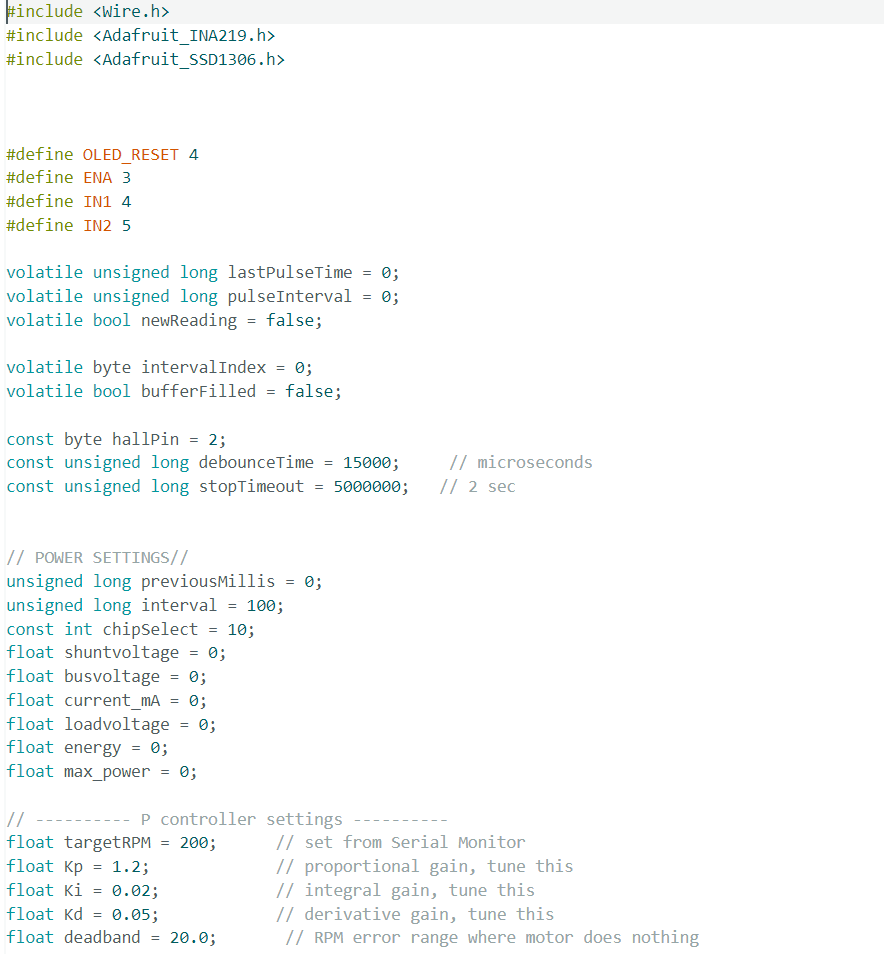

To test my model, I used several methods to measure its performance. I tracked the rotations per minute (RPM) using a magnet sensor connected to an Arduino, which gave me accurate data on how fast the turbine was spinning. I also measured the amount of power being generated to evaluate its efficiency. In addition, I observed and recorded how well the furling mechanism worked, especially under higher wind speeds, to ensure it improved stability and reduced stress on the turbine.

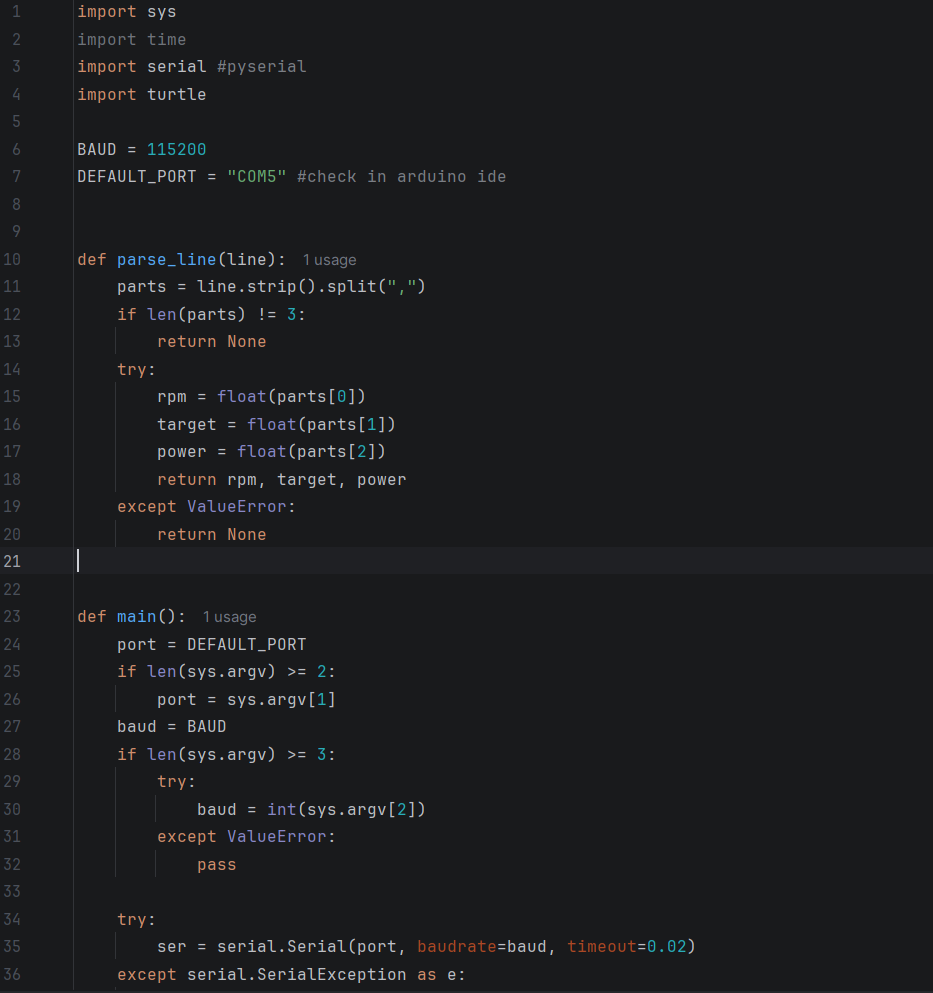

Most of the materials used in my project were 3D printed, but I also incorporated purchased components such as metal poles for structural support and an Arduino setup for data collection and control. To control variables during testing, I used motors to simulate consistent wind conditions and relied on Arduino code to ensure accurate and repeatable measurements.

My project focuses on designing and testing an improved version of a Harmony Wind Turbine. The main goal of my design is to create a wind turbine that can operate efficiently in both low and high wind conditions while also being stable and safe in extreme weather. Traditional wind turbines often face challenges such as overspeeding in strong winds or producing limited energy in low winds, so my project aims to address both of these issues through an adaptive design.

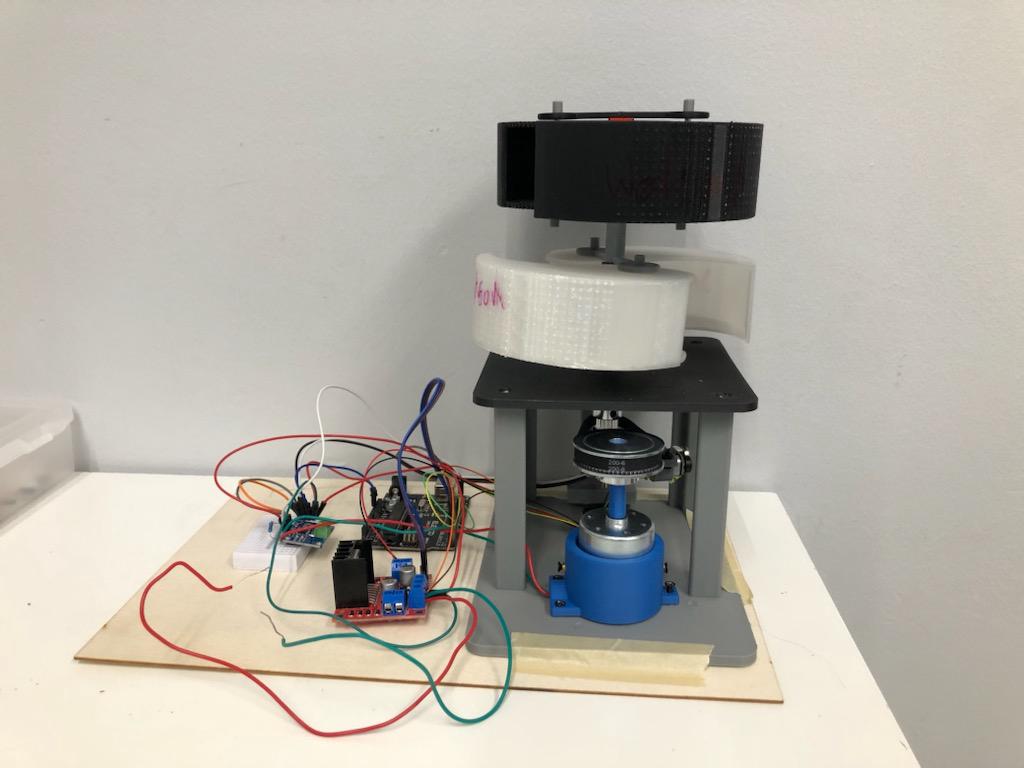

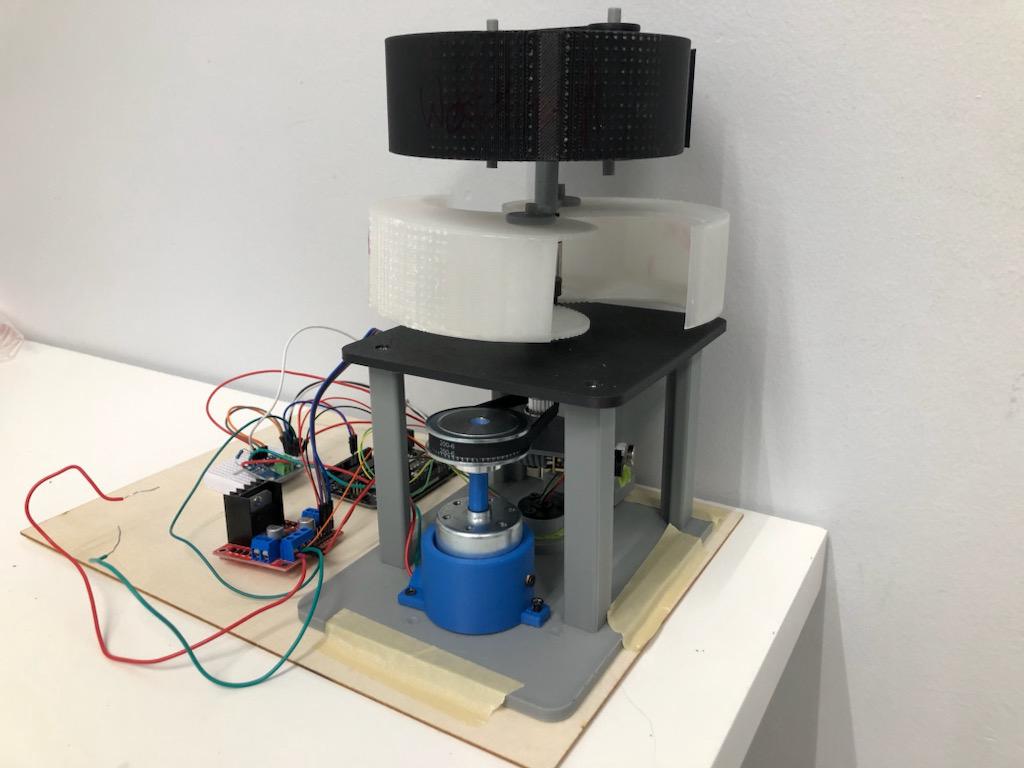

The key feature of my turbine is a blade-closing or furling mechanism. This system is designed to automatically adjust the position of the blades when wind speeds become too high. By reducing the surface area exposed to the wind, the turbine slows down and prevents damage caused by excessive rotational speed. To achieve this movement, my prototype uses a worm motor that controls the furling system with precision. This allows the turbine to maintain a target RPM and stay stable even when wind conditions change quickly.

In addition to the furling system, my design also includes vertical blades that help improve performance in low wind conditions. These blades are more responsive to weaker airflow, allowing the turbine to begin generating power at lower speeds compared to traditional designs. This combination of vertical blade design and adaptive control gives the turbine a wider operating range, making it more versatile in different environments.

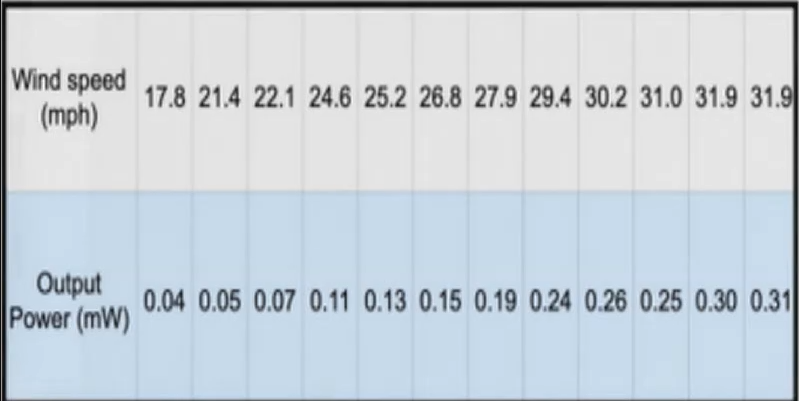

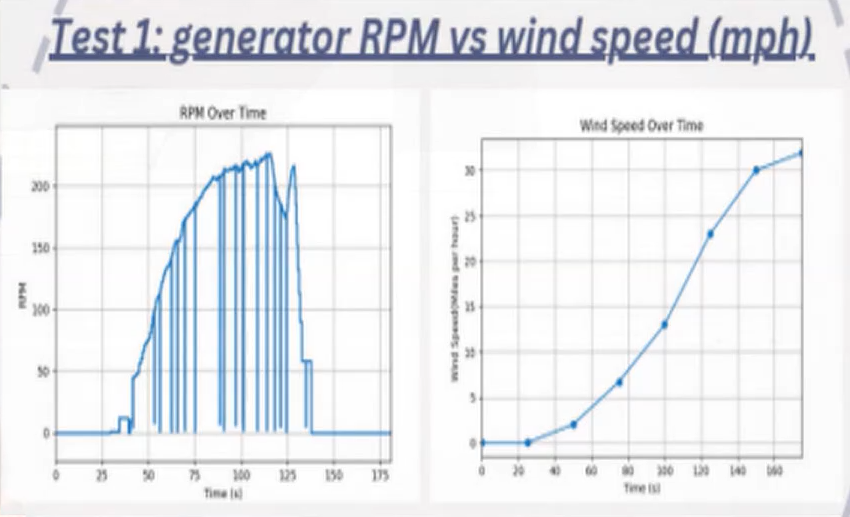

Another important aspect of my project is testing and data collection. I measured how the turbine performs at different wind speeds and recorded its power output over time. This data was organized using graphs to better understand the relationship between wind speed, rotational speed, and energy generation. These results help show how effectively the furling system maintains stability while still allowing the turbine to generate power.

Overall, my project explores how a small-scale wind turbine can be improved through mechanical design and smart control systems. The goal is to create a model that is both efficient and safe, with potential for future scaling and real-world application in sustainable energy systems.

Some conclusions I can draw from my results are that my model is highly successful in demonstrating the core idea behind my design. The tests show that it can efficiently generate clean energy, making it a promising solution for the roughly 200,000 people living in off-grid areas. One of its strongest features is its ability to operate in a wide range of wind conditions. My model can begin spinning and producing energy in wind speeds as low as 1 mph, which is important for areas with light or inconsistent wind. At the same time, it can also handle very high wind speeds because of its furling mechanism, which helps the turbine adjust its position to maintain balance and reduce the risk of damage or mechanical failure.

From these results, I also learned some important limitations of my design. Due to its small size, my model does not produce a large amount of energy, which would limit its effectiveness in real-world applications. However, this is expected for a prototype and gives me a clear direction for future improvements.

The next steps for my project focus on improving both performance and real-world application. I plan to build a larger, more durable model to better simulate real wind conditions and collect more accurate data. I also want to refine the blade-closing mechanism so it responds more smoothly to changes in wind speed while maintaining energy efficiency. Another goal is to test this system on horizontal-axis wind turbines (HAWTs) to see if it can be applied to common designs. Overall, I aim to create a wind turbine that is both efficient and safe, especially in high wind conditions.

I'd like to say thanks to my parents, who supported me and my project the entire time. I'd also like to say thanks to my dad's friend, who helped me do all the dangerous stuff like using a soldering station to melt metal into place.

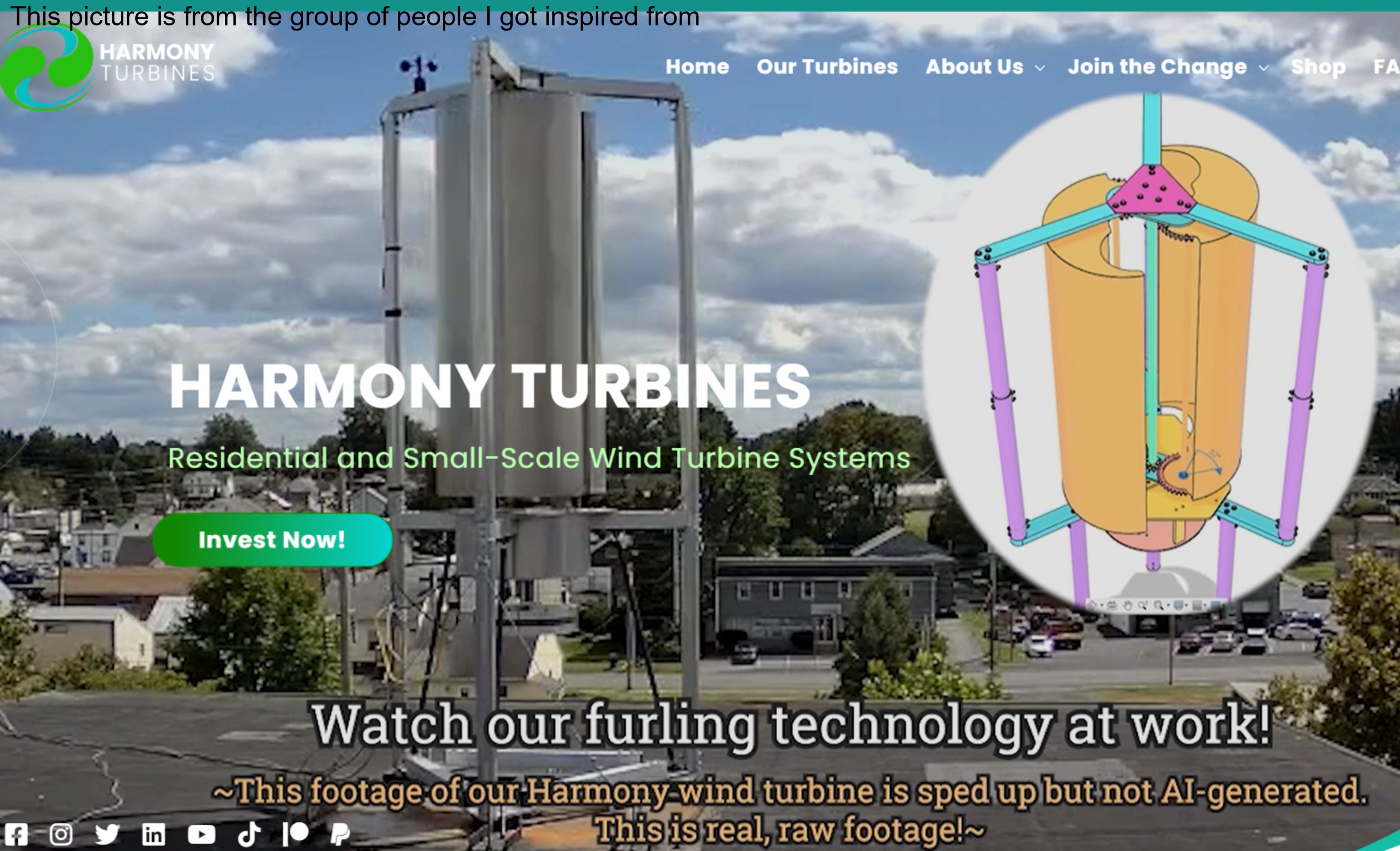

My inspiration: Harmony Turbines

I used some AI to create images for this
