In Silico Diabetes Management and Prediction: A Personalized Hybrid Physics-ML System

Problem

1. Global Diabetes Statistics:

Major global crisis affecting over 830 million people

Leading cause of deaths: 3.4 million annual deaths; every 9 seconds, 1 person dies

Causing USD 1 trillion in healthcare costs

2. Personal Motivation:

Family/relatives history

3. Significant Product Gap:

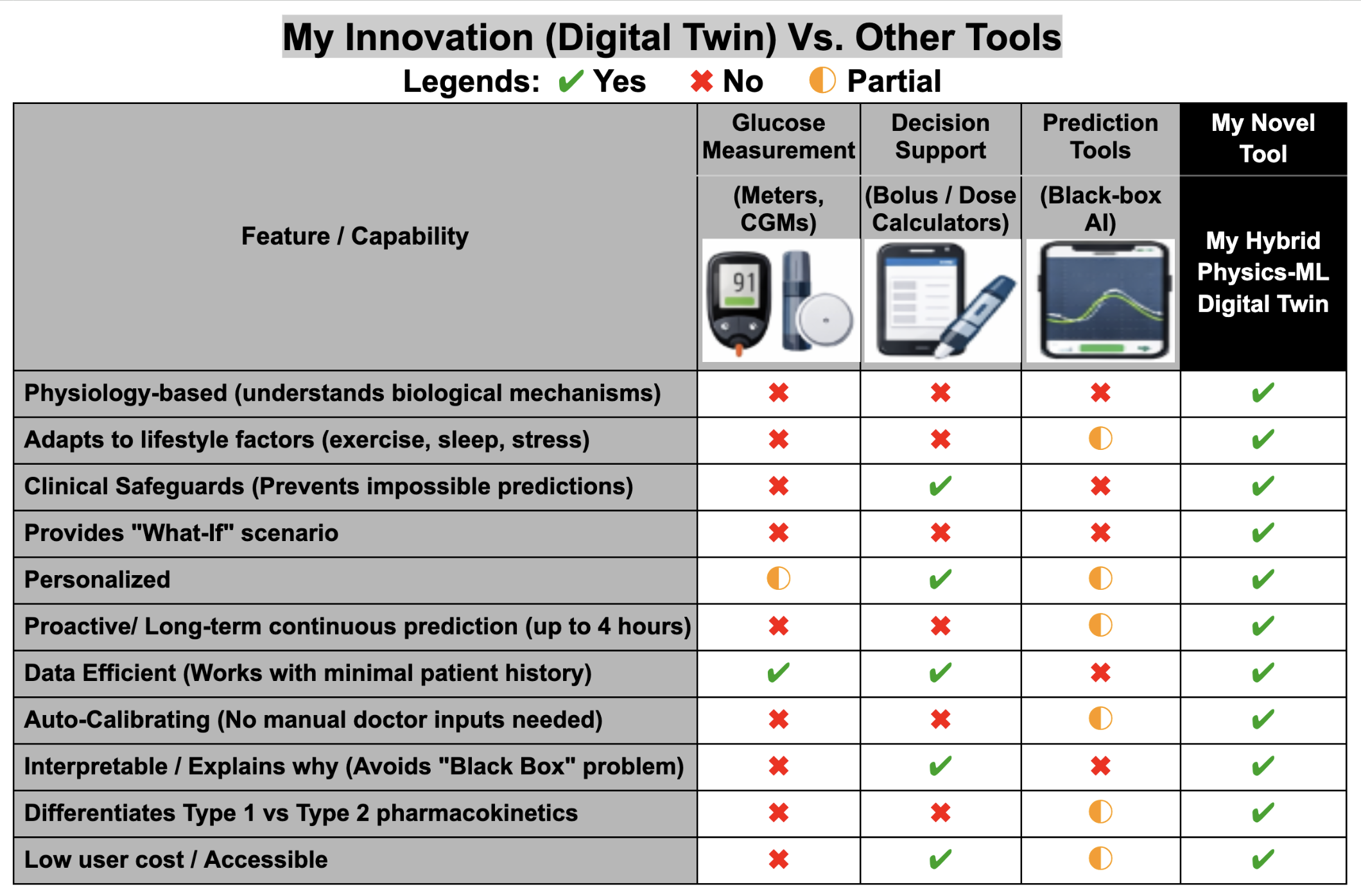

There are three kinds of tools, but they have significant limitations (attached table):

Glucose Measurement Tools: Fingerstick meters, CGMs (Continuous Glucose Meters) – no forecasting & guidance

Decision Support Tools: Bolus/dose calculators – fixed static rules

Prediction Tools: Black-box AI – purely data-driven

Solution

(Attached table)

I created a novel hybrid physics-ML system that solves all these limitations and provides many more innovative features. Unlike other tools that remain reactive – they respond to glucose changes already underway rather than anticipating them, my system is the only tool that combines real-time physiological interpretability, patient-specific personalization, and "what-if" planning for proactive rather than reactive correction, in one accessible system.

My system will also be very useful in hospital settings, where inpatients with diabetes experience significant metabolic disruption relative to their usual baseline. These inpatients are on reactive sliding-scale insulin, but my proactive tool that predicts based on each patient's physiology, history, and current clinical state, will help nurses and doctors better manage inpatient hospitalizations.

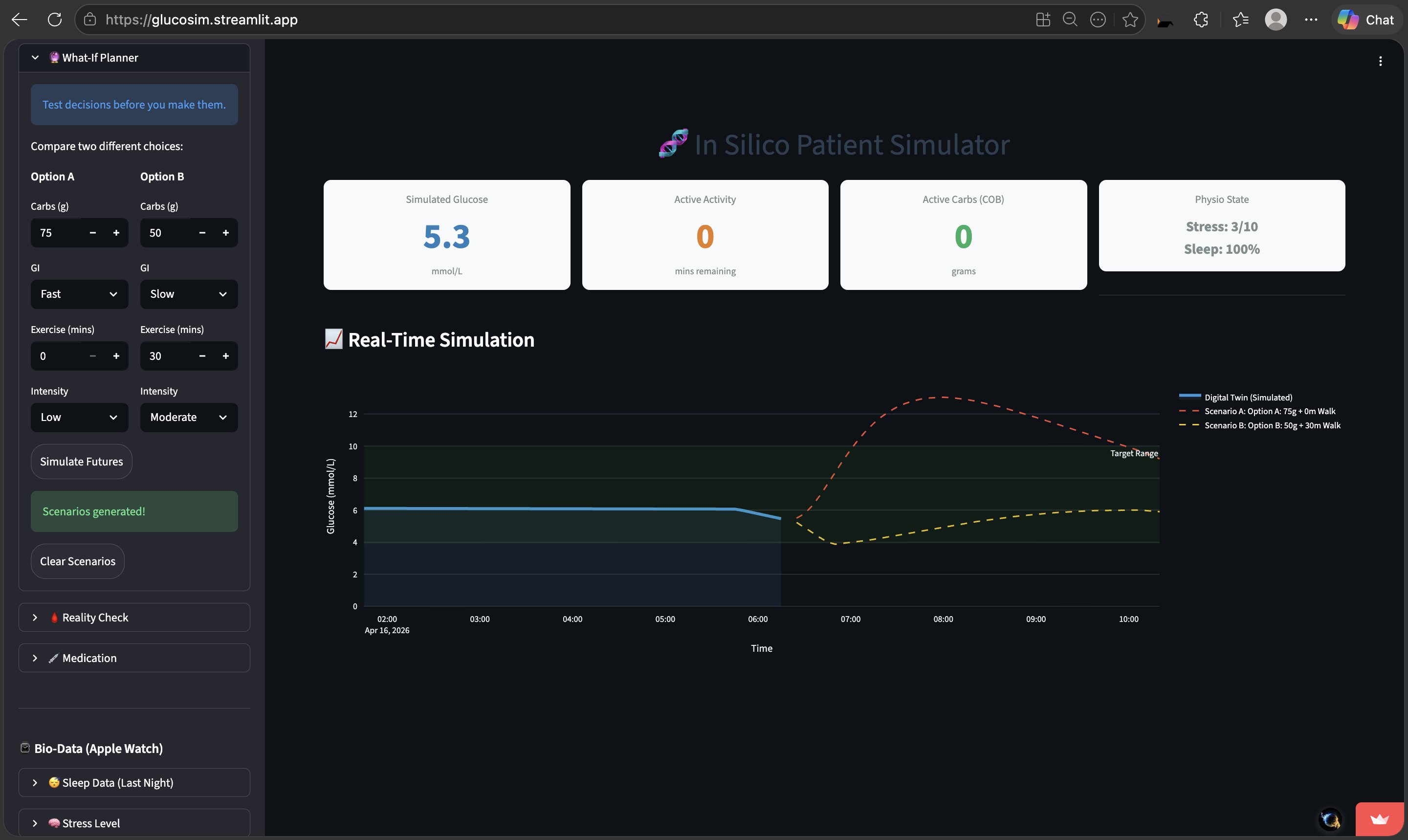

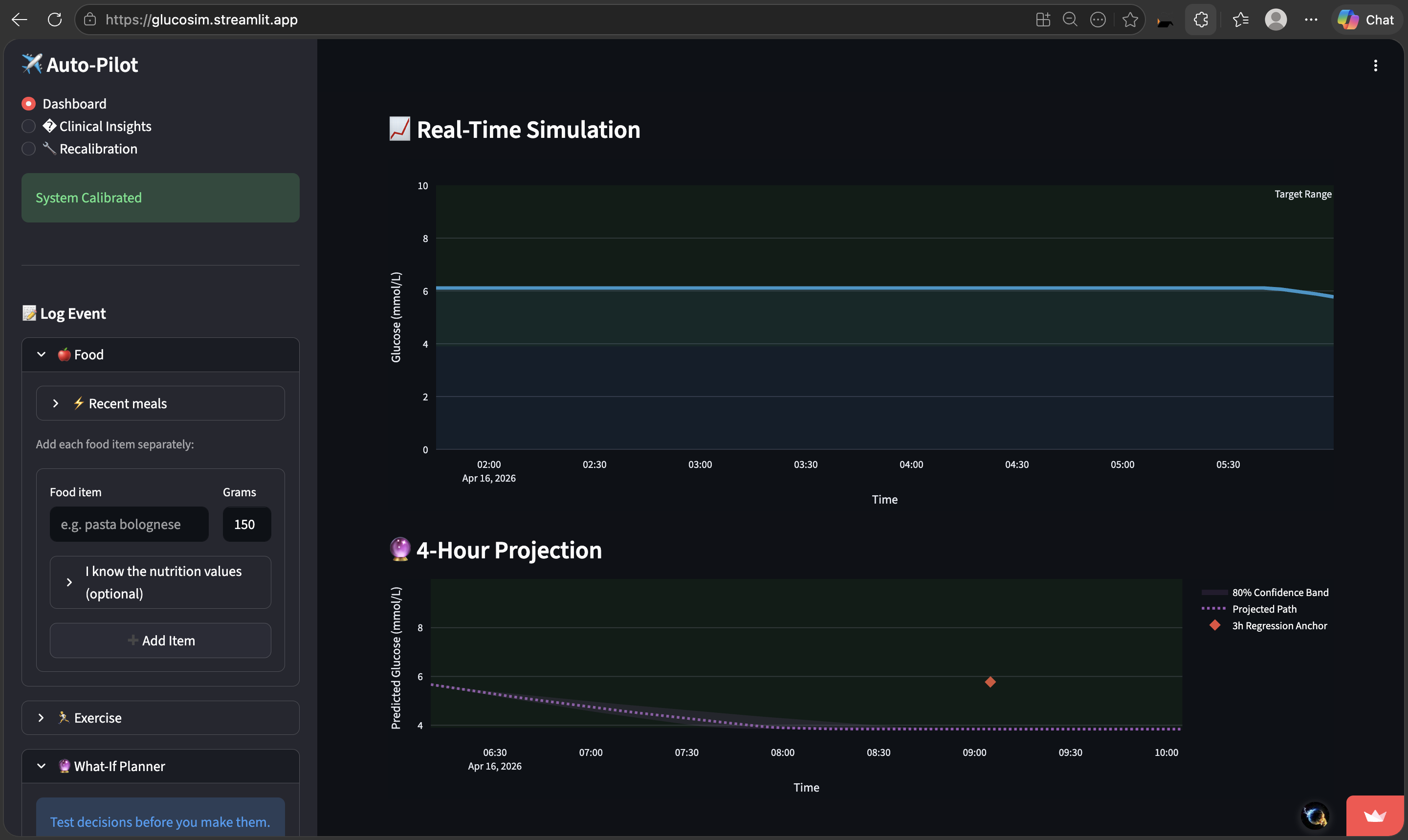

Website:

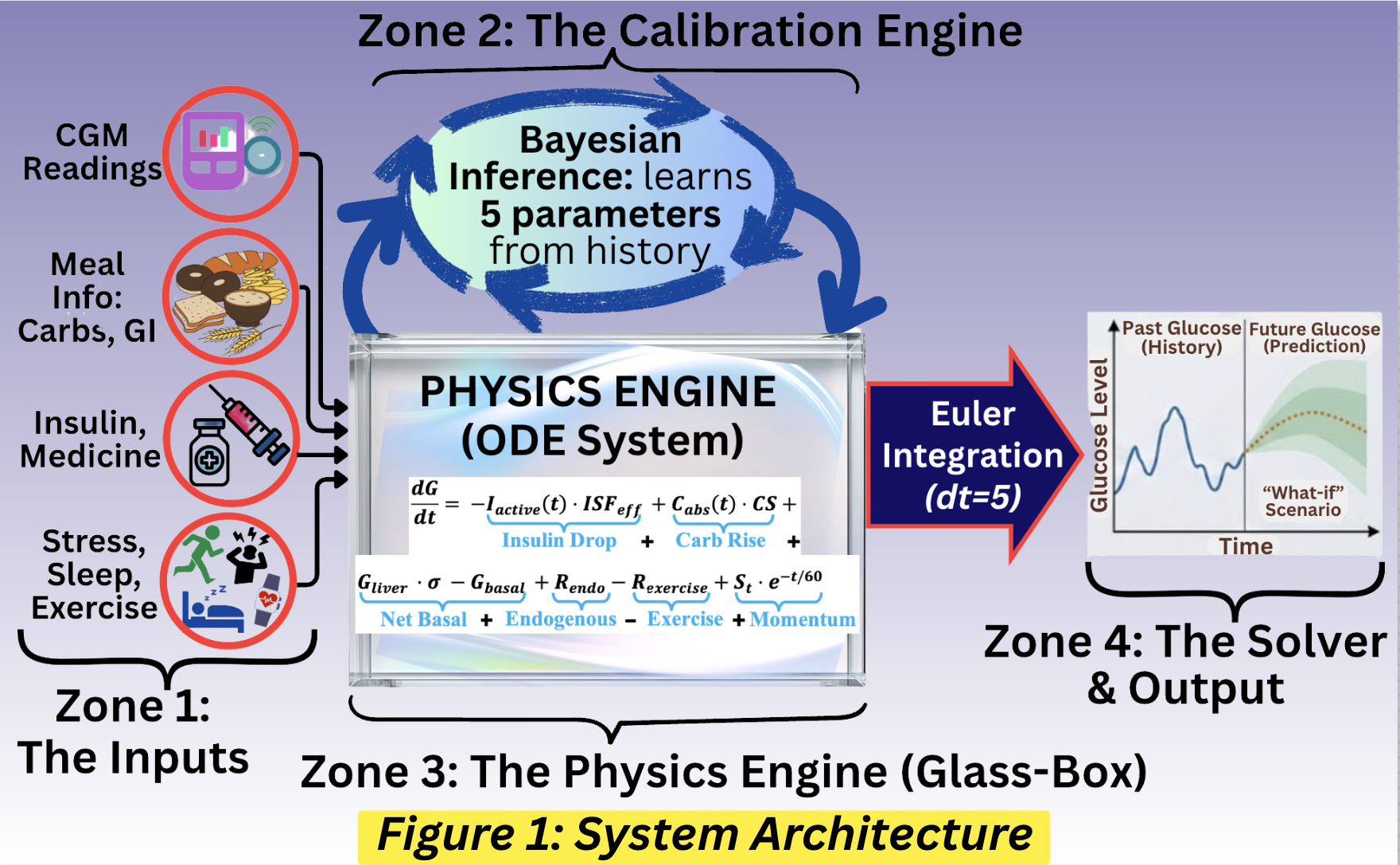

(Attached figures)

Users just input basic data – food, exercise, medication, stress, and sleep – for a couple of days for calibration. Then my system delivers highly accurate, clinically safe predictions, and it also provides "what-if" scenarios for safe planning by simulating different combinations of food & exercise.

Zone 1 – Signal Processing

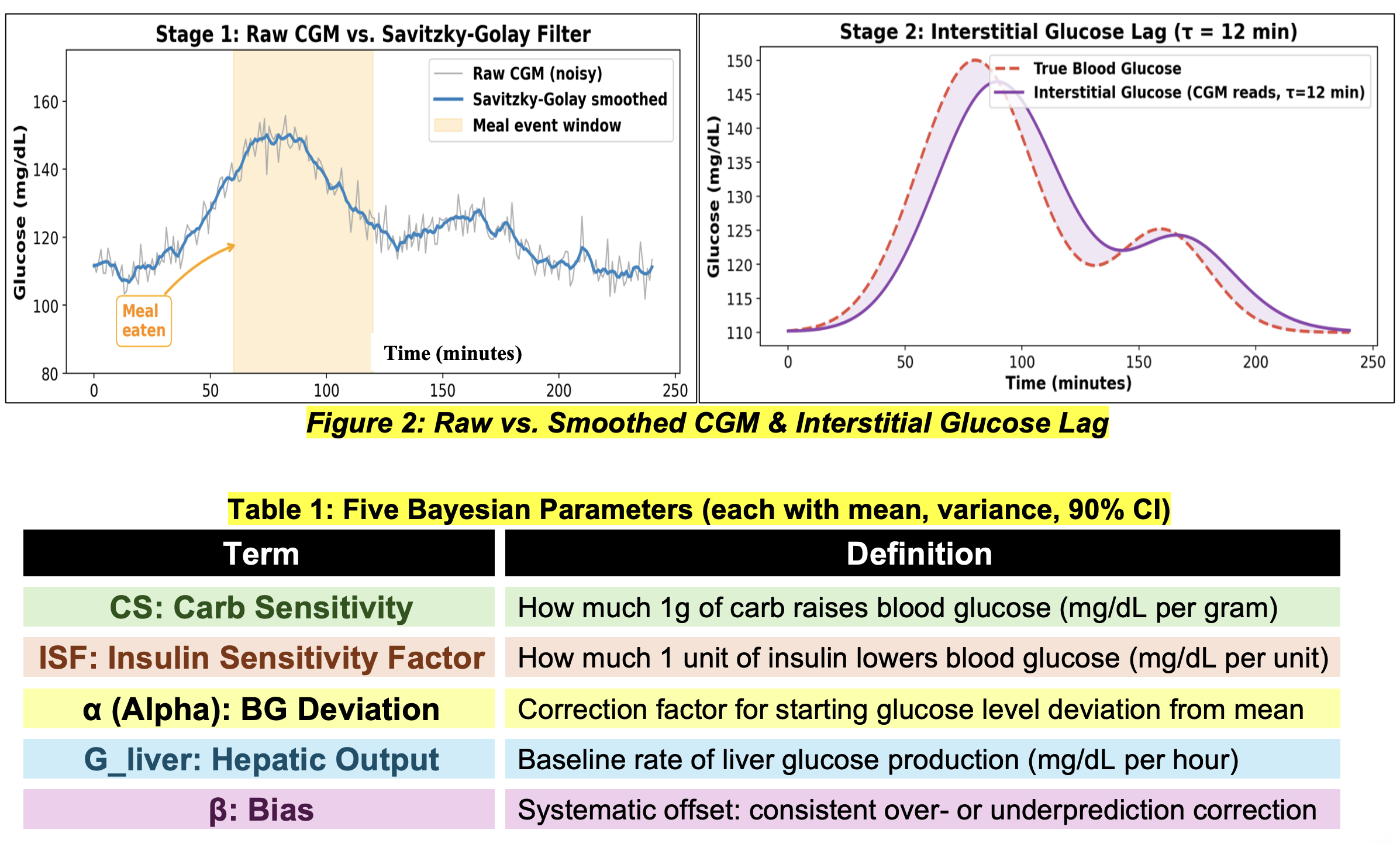

(Figure-2)

Stage 1 (Sensor Noise Removal): A Savitzky-Golay filter smooths noise while preserving true glucose peaks

Stage 2 (Interstitial Lag): A first-order equation corrects the glucose delay

Stage 3 (Pre-Meal Slope): A linear regression over the last 6 readings computes the pre-meal slope, projected into each prediction

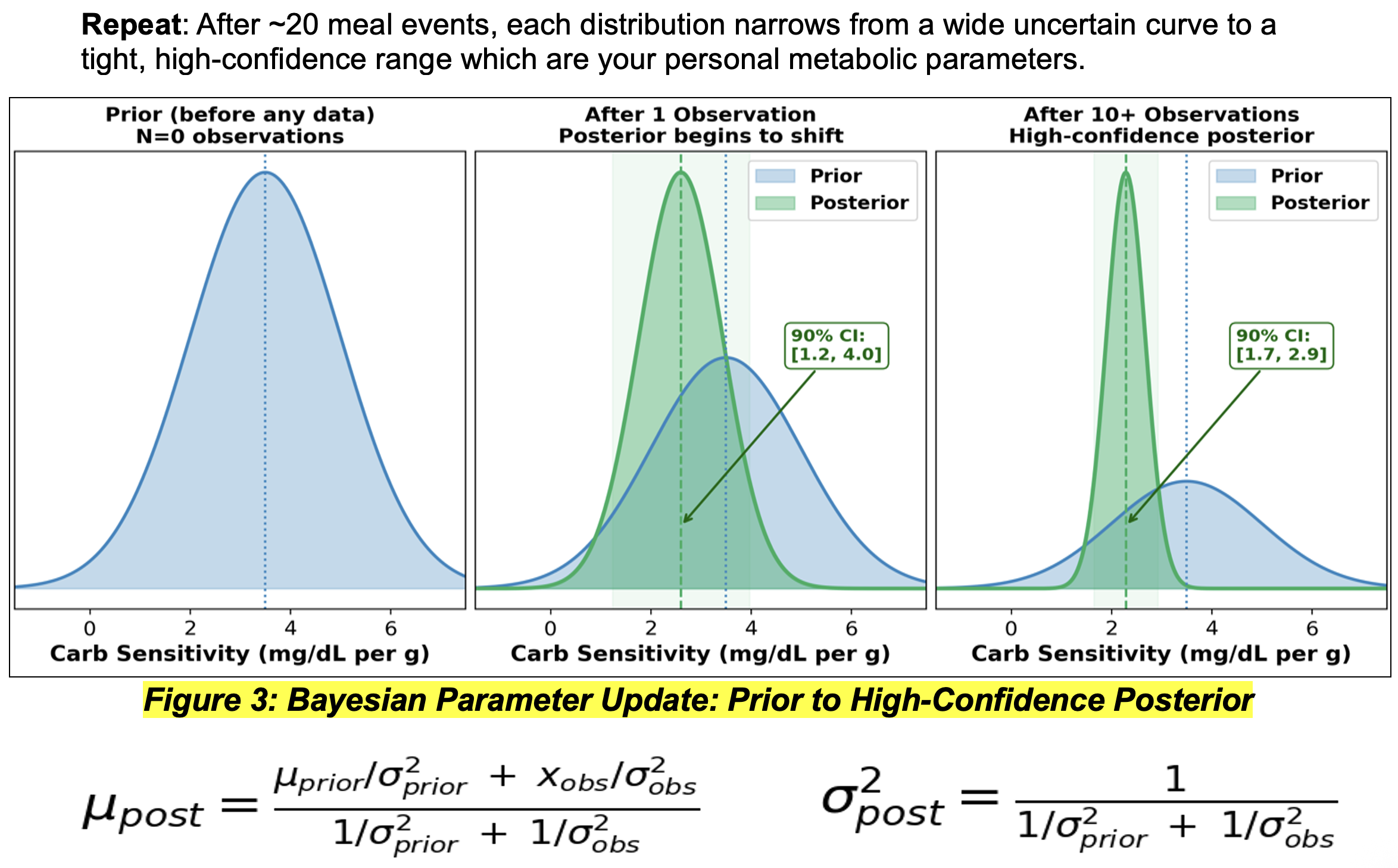

Zone 2 – Calibration Engine

(Table-1 & Figure-3)

It solves the inverse problem: given your meal history & glucose changes, what are your personal biological constants? Five parameters: CS, ISF, Alpha, Hepatic Output, & Bias, are stored as probability distributions.

Filter: Meal events are cleaned with a two-pass MAD outlier filter (2.5σ then 1.5σ).

Estimate: A regression finds CS & 𝛂 that best explain post-meal changes; fasting windows estimate liver output separately.

Update: Each estimate merges with the prior via a precision-weighted Bayesian update.

Zone 3 – Physics Engine

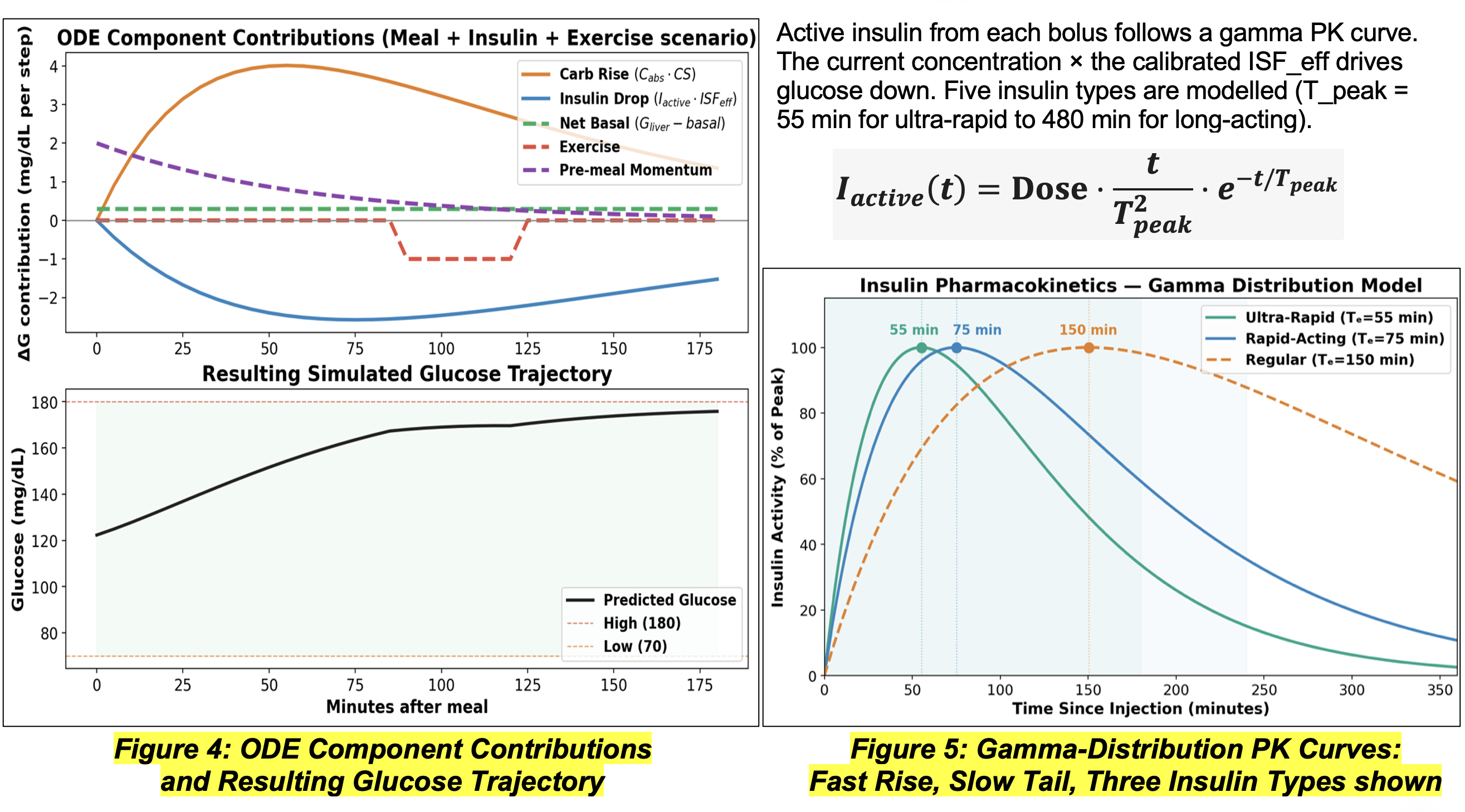

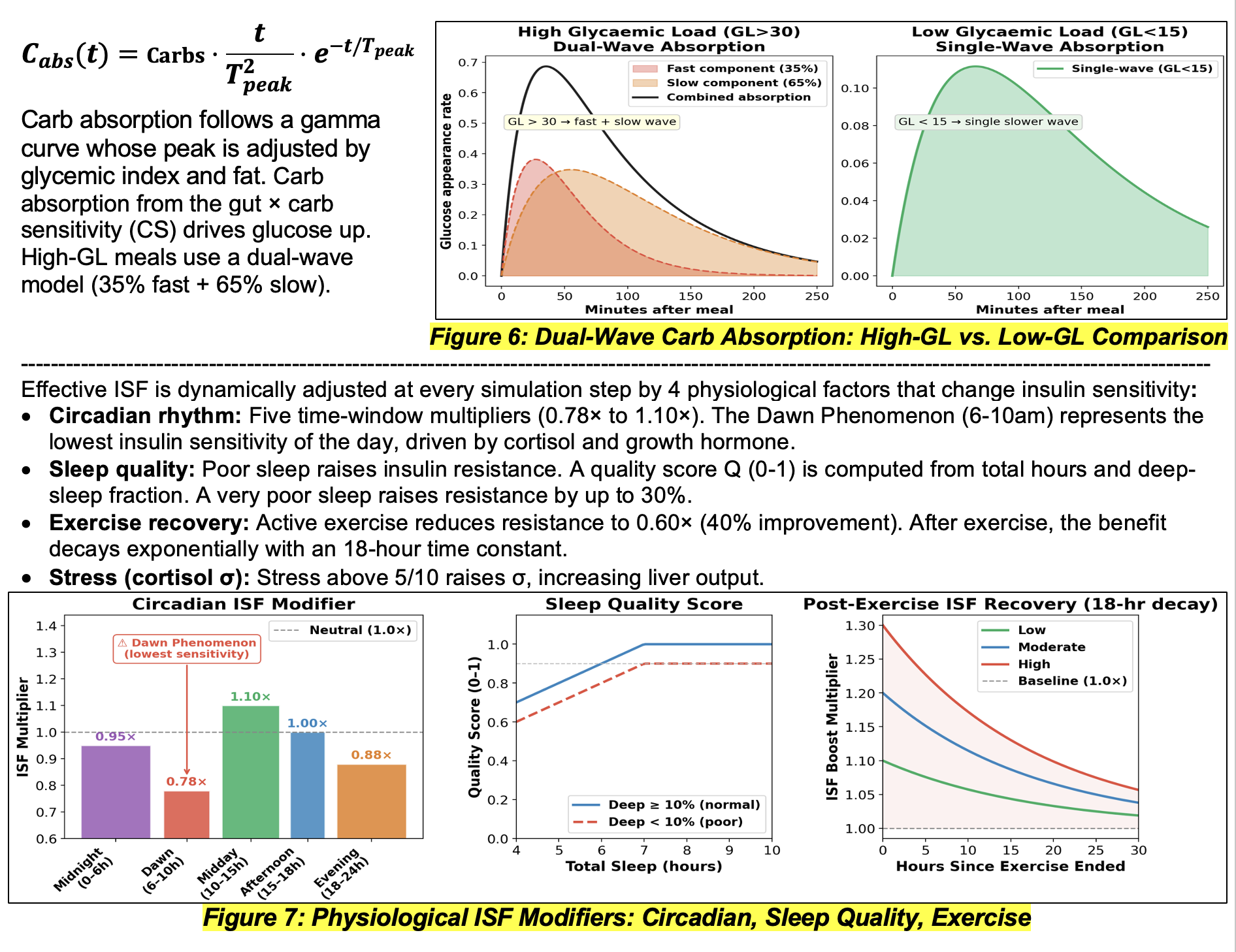

(More details: Figure 4-7 & Table-2)

This is my main equation (shown below) – an ODE modelling glucose flux across six biological processes. ISF is dynamically adjusted every step by four factors: circadian rhythm, sleep quality, post-exercise recovery, & stress cortisol. Five insulin types and six drug classes are modelled, each on a different ODE component.

Zone 4 – Solver & Prediction

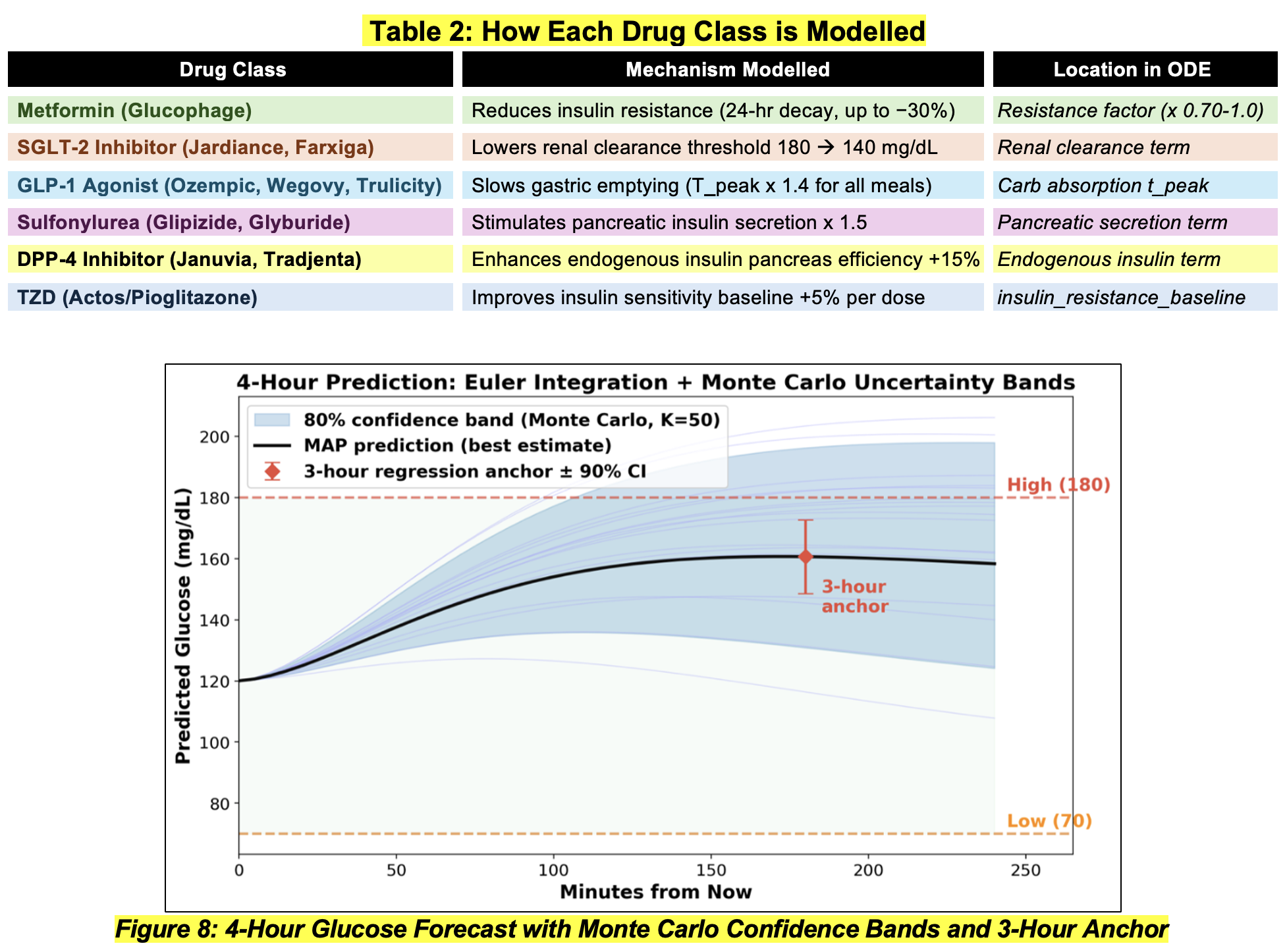

(Figure-8)

The ODE is solved numerically using Euler's method (Δt = 5 min): dG/dt is computed every step from active boluses, meals, exercise, & medication effects, then projected forward 4 hours. 50 parameter sets are sampled from the Bayesian posteriors, yielding 80% confidence band. An independent 3-hour anchor cross-checks the Euler trajectory.

Validation Methodology

Validated against actual CGM data across four independent studies: three real-world clinical datasets (MetaboNet, CGMacros, GlucoBench) & an in-person patient dataset (NN)

Large sample size of 19,290 post-prandial meal events across 2,858 diverse patients (Type-1 & Type-2), varying HbA1c & CGMs

Per-patient split: initial meal events calibrate the system; & later events form the blind test set

Overall Performance

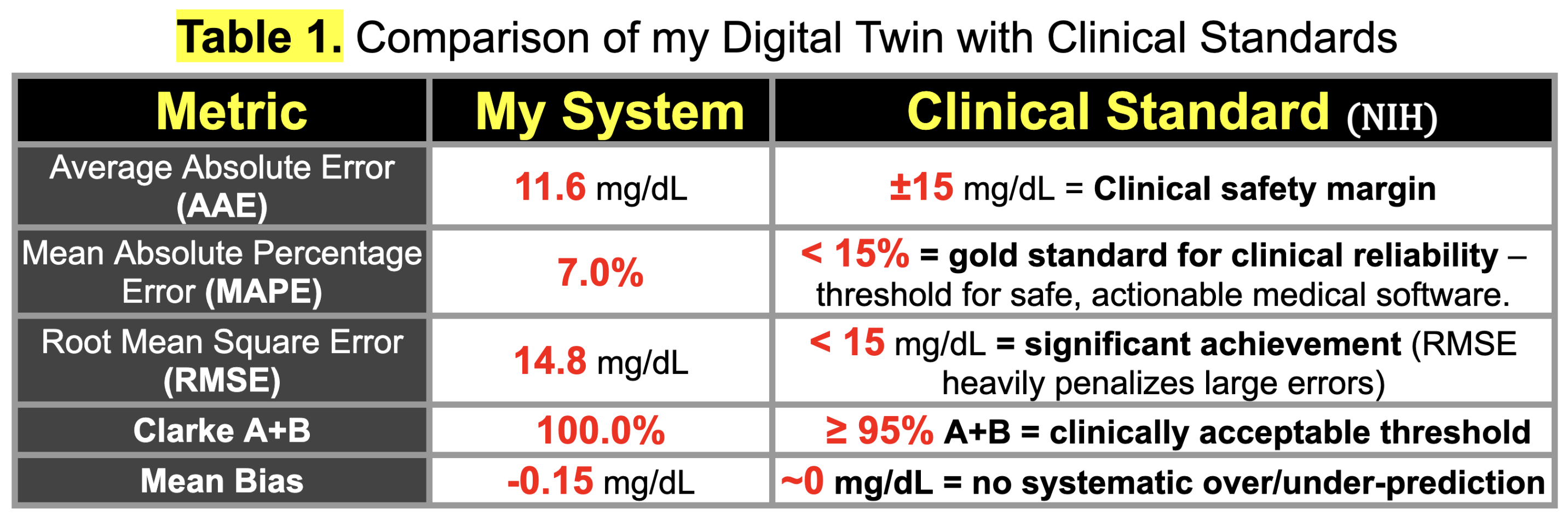

(Table-1)

My system achieved clinically-safe, strong retrospective predictive accuracy.

My system's AAE of 11.6 mg/dL beats the ±15 mg/dL NIH clinical safety margin

My MAPE of 7.0% is less than half the gold standard threshold of <15%, for safe, actionable medical software

My RMSE of 14.8mg/dL falls under <15mg/dL threshold – a significant achievement because RMSE heavily penalizes large errors

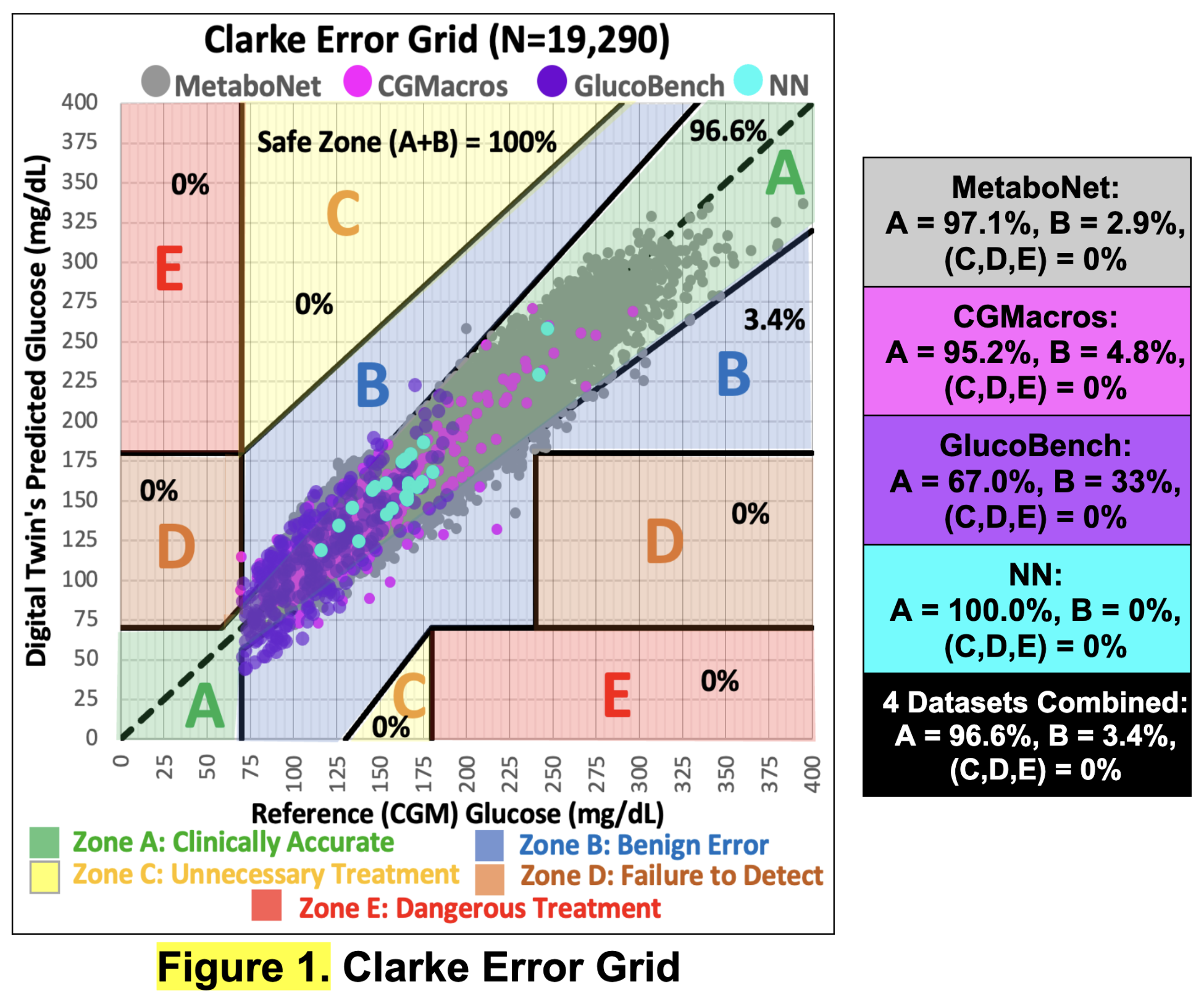

Clarke Error Grid Analysis

(Figure-1)

It is the gold standard for assessing clinical safety of blood glucose prediction models. It divides predictions into five zones based on how an error would impact patient treatment:

Zone A is clinically accurate

Zone B is benign

Zones C, D, & E represent increasingly dangerous errors

The clinical threshold is ≥ 95% Zone A+B. All 19,290 of my predictions achieved Zone A (96.6%) & Zone B (3.4%), with 0 predictions in Zones C, D, or E. All my predictions are 100% clinically safe.

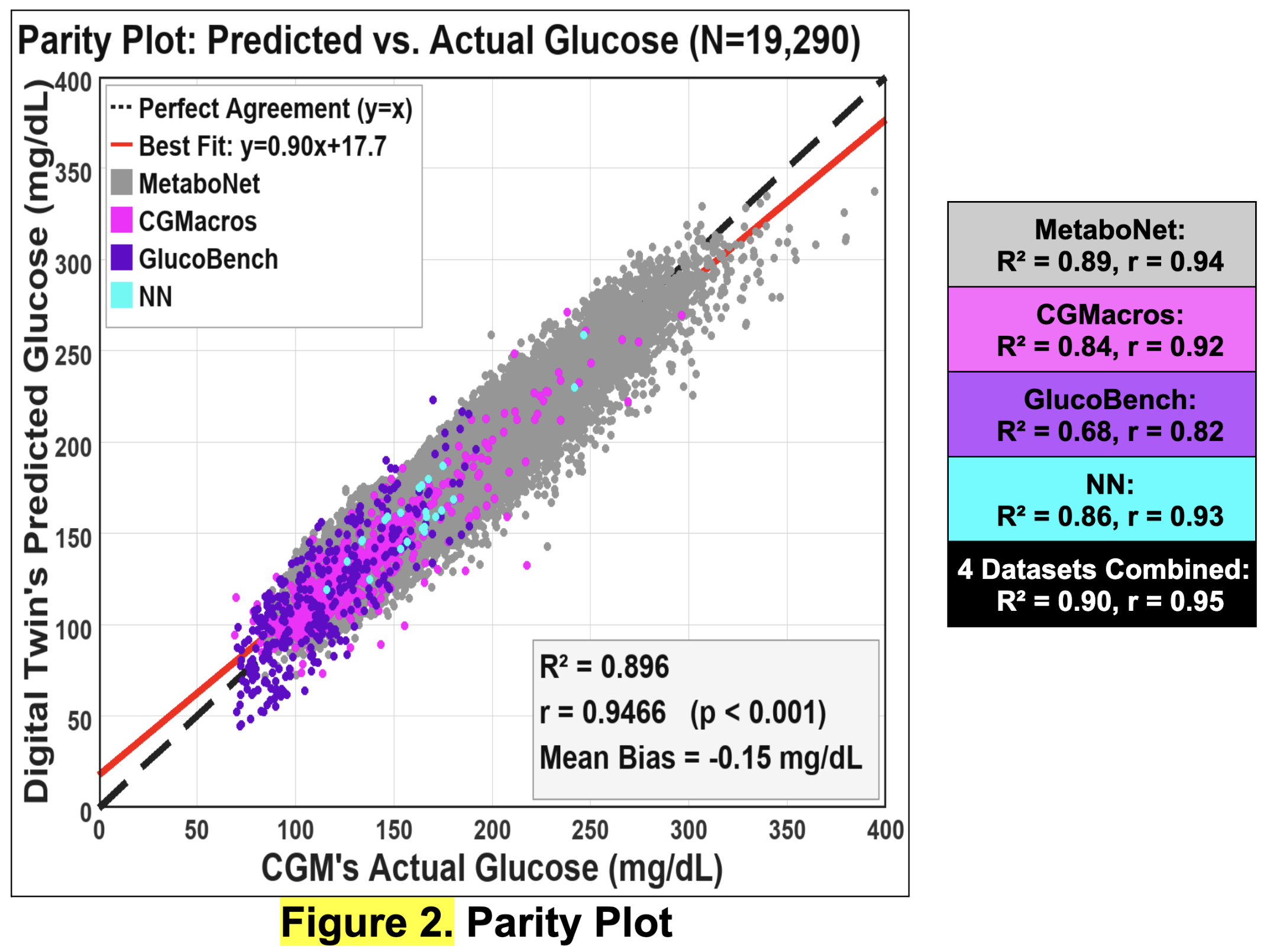

Parity Plot Analysis

(Figure-2)

It shows tight clustering along the perfect agreement line (y = x), yielding R² = 0.896, meaning 90% of the complex variance in human glucose in the measured CGM values is captured by my system

Pearson Correlation r = 0.9466 (p < 0.001) confirms a very strong positive linear relationship between my system's predictions & actual reality

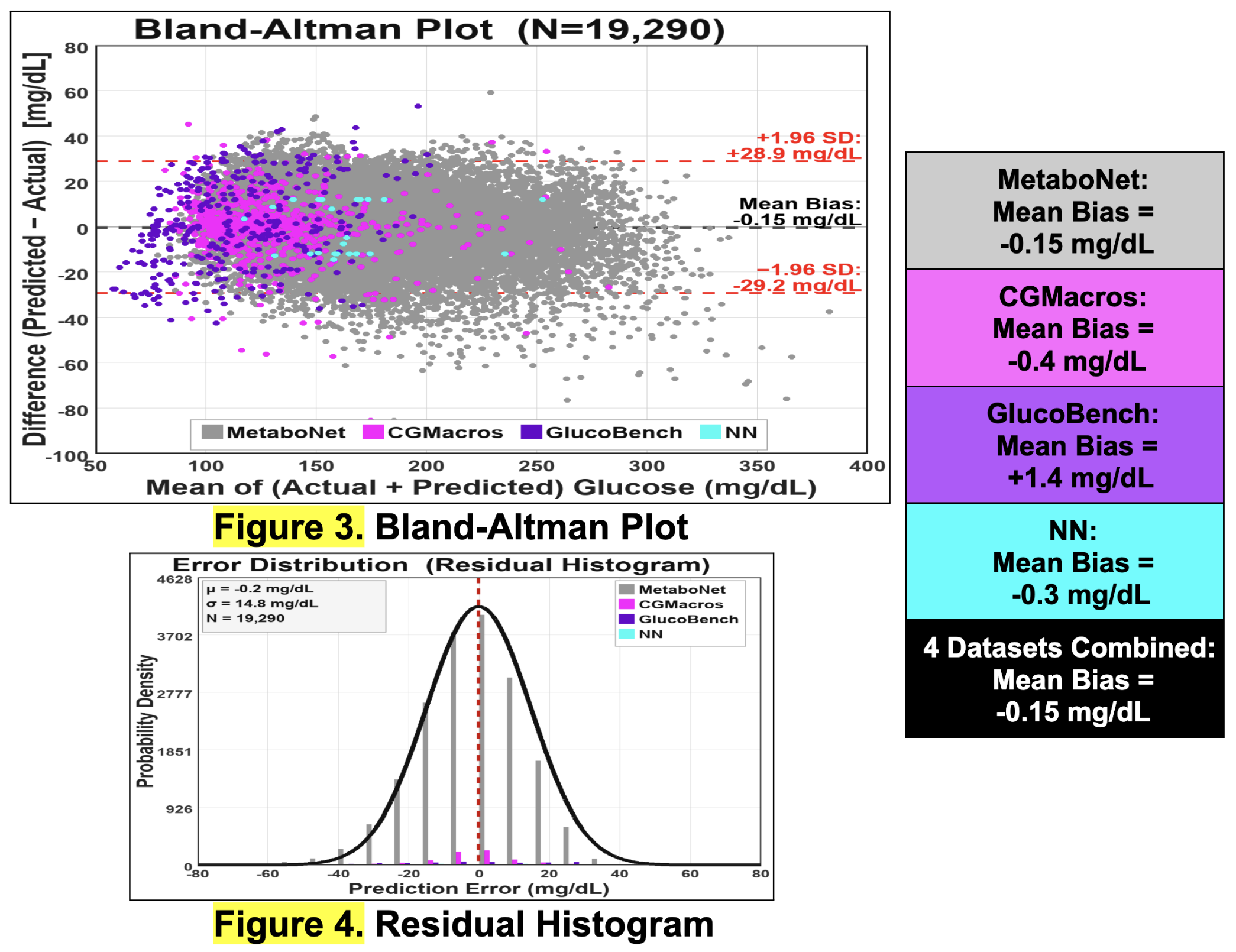

Bland-Altman Plot Analysis

(Figure-3)

It confirms that the mean bias of -0.15mg/dL is negligibly small, proving my system is balanced – it does not systematically over-predict/under-predict

Scatter is evenly distributed across the horizontal axis within 95% limits of agreement, confirming consistent accuracy across all glucose ranges

Its performance does not degrade at extremes – an elite standard for clinical forecasting models

Residual Histogram Analysis

(Figure-4)

It shows a near-perfect bell curve centred near zero, proving errors are random, not systematic

My system does not suffer from algorithmic bias

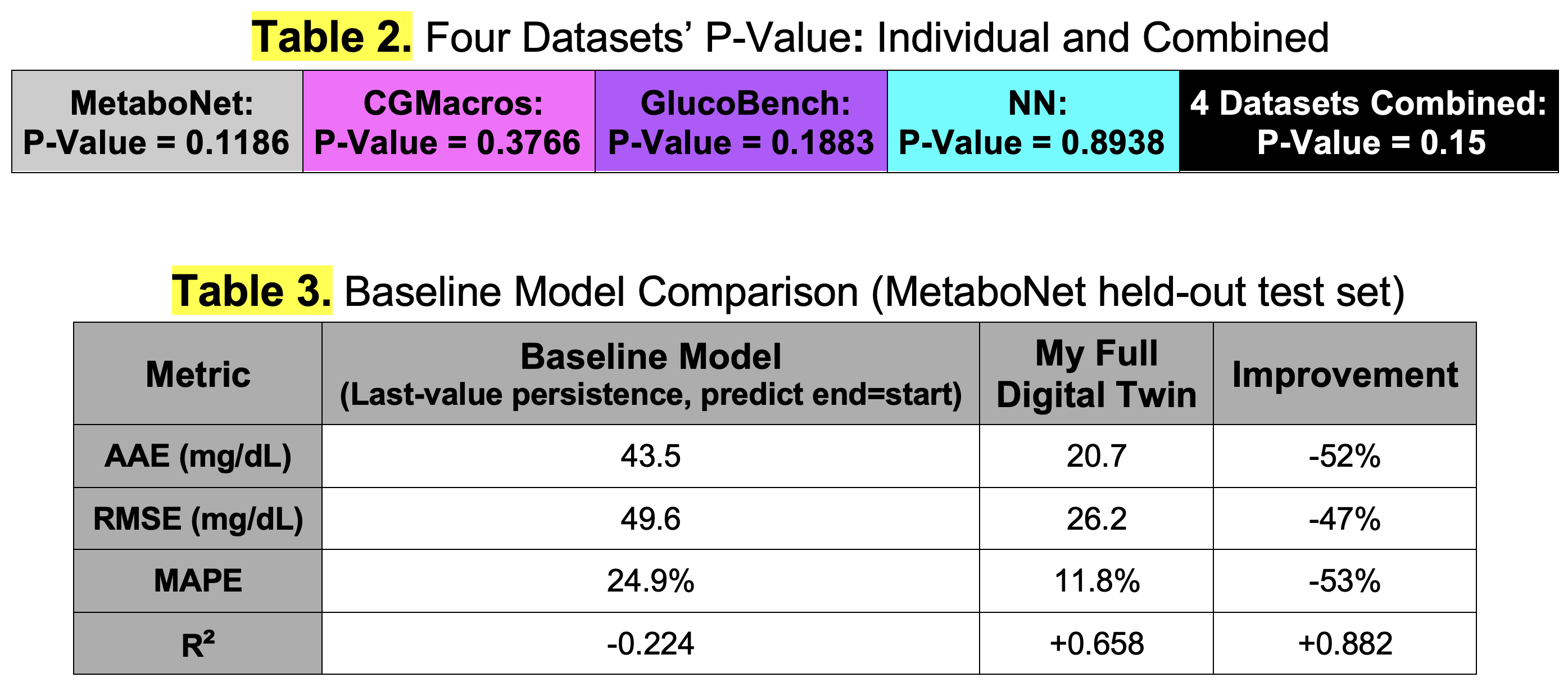

Statistical Hypothesis Testing

(Table-2)

To prove the results were not due to chance, a t-Test: Paired Two Sample for Means was conducted on all 19,290 data points

We fail to reject the null hypothesis (H₀: μ₁ = μ₂) because the p-value = 0.15 > 0.05 (𝛂). This confirms no statistically significant difference between my system's predictions & actual glucose readings

For each of the four datasets, their p-value > 0.05, confirming no systematic bias across any population

Baseline Validation

(Table-3)

This confirms the physics components contribute meaningfully to accuracy.

Evaluated on MetaboNet held-out test set: 16,009 real CGM meal events, unseen during calibration

Full Digital Twin reduces MAE by 52% over no-model baseline

R² improved +0.882 (from -0.224 to +0.658)

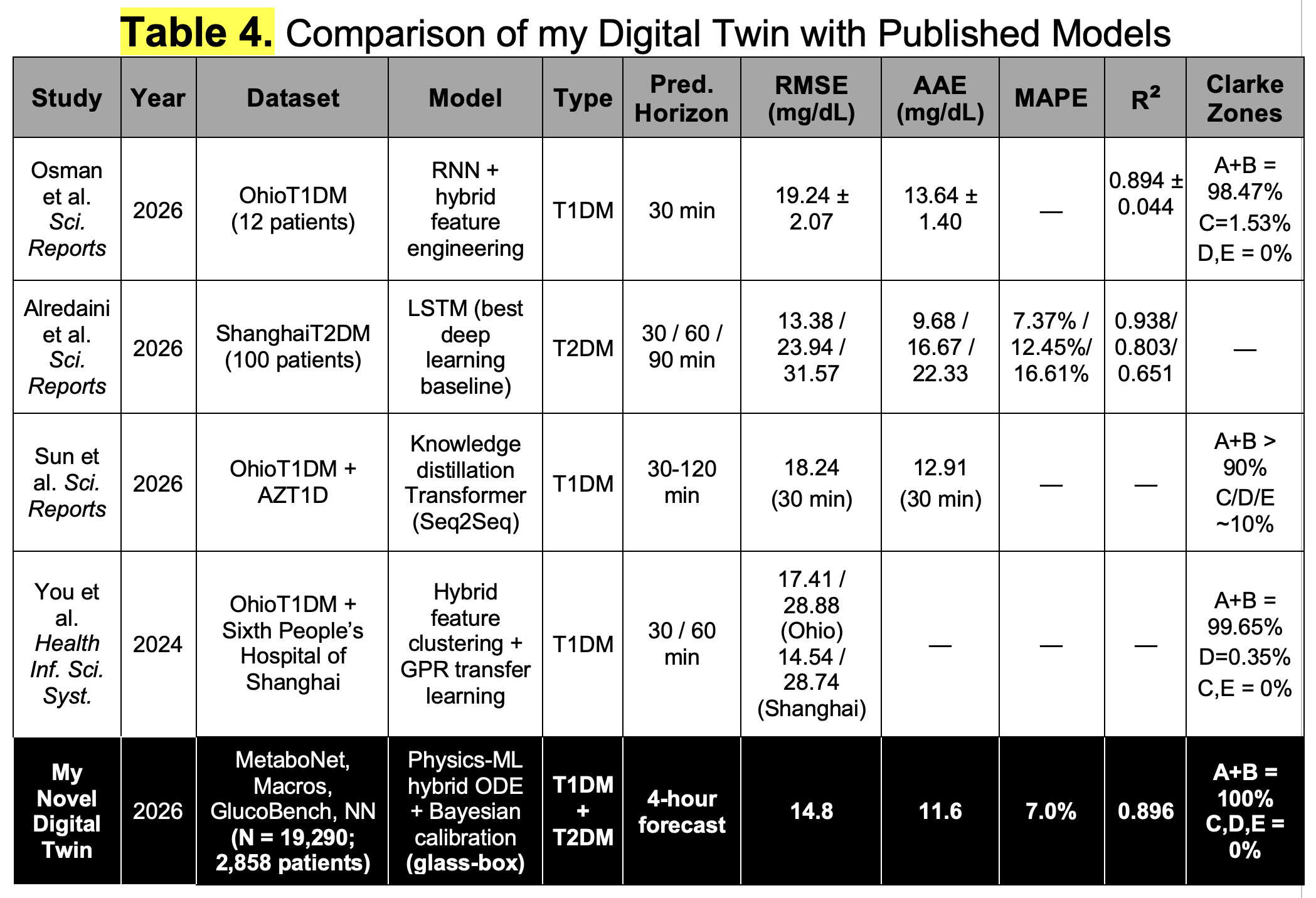

Comparison with Published Models

(Table-4)

Benchmarked against four recent (2024-2026) peer-reviewed studies

All four models predict 30-60 minutes ahead; my system predicts 4 hours ahead

Despite 4-8 times longer prediction horizon, my system beats their accuracy (AAE, R², MAPE)

Only my model achieved perfect clinical safety score: 100% Clarke A+B, & covers both T1DM & T2DM

My system is glass-box with interpretable physics unlike black-box systems

Ablation Study

It confirms each component contributes meaningfully (details in poster).

Limitations: Accuracy depends on self-reported stress, exercise, & sleep inputs, which can be inconsistent. Future validation of these modifiers at scale remains difficult, as few existing datasets capture all these physiological parameters simultaneously.

Conclusion

Innovation: My novel hybrid Physics-ML system successfully converts noisy biological data into mathematically proven predictions – integrating Bayesian self-calibration and ODEs to isolate individual metabolic parameters like Insulin Sensitivity and Carb Ratios without human intervention.

Retrospective Clinical Validation: Testing across 19,290 real-world events, my system achieved a mean bias of only -0.15mg/dL, R² = 0.896, & paired t-test p = 0.15 > 𝛂. My system's AAE, MAPE, & RMSE also fall well below clinical safety margins. Against a no-model baseline, my system reduced MAE by 52%, & improved R² +0.882 (from -0.224 to +0.658). Benchmarked against four 2024-2026 published models, my system clearly outperformed on every metric despite forecasting 4 hours ahead versus their 30-60 minutes forecast; & only my model achieved 100% clinically safe Clarke A+B zones.

Empowering Patients & Clinicians: My innovation empowers patients with proactive, personalized "what-if" simulations, removing dangerous guesswork from daily diabetes management. It provides an accessible, highly reliable tool to prevent dangerously low/high glucose events before they occur. In hospitals, inpatients face significant metabolic disruption from baseline, & current sliding-scale protocols are purely reactive. My proactive tool – personalizing to each patient's physiology, history, & clinical state – enables nurses & physicians to make better dosing decisions.

Global Impact: My innovation has the potential to significantly transform the lives of hundreds of millions of people with diabetes.

Connect my system to a live CGM device and smartwatch so it receives readings automatically and updates its Bayesian parameters in real time without manual input.

Extend my system into a closed-loop controller where it forecasts glucose and communicates insulin doses to a connected pump – completing the feedback loop autonomously.

Incorporate additional physiological factors: illness, menstrual cycle, & pregnancy.

Extend the forecast horizon beyond 4 hours.

Conduct a direct benchmark comparison against black-box AI models – LSTMs, transformer-based predictors, & neural networks – on the same datasets.

Conduct a prospective clinical study across diverse patient populations, diabetes types, & age groups for real-world medical use.
