Green Eggs and Solar Powered Salamanders

The relationship between the Spotted Salamander and the green algae Oophila amblystomatis is very interesting. Most literature supports the idea of a symbiotic relationship between the two organisms, despite there not being much research into the benefits for the algae. However, a recent study found genes in the algae responsible for fermentation and suggests that the algae is stressed and the relationship is parasitic. (Burns et al, 2017)

The project aimed to better understand the relationship between algae and salamander and focus on the algae and its role in the relationship.

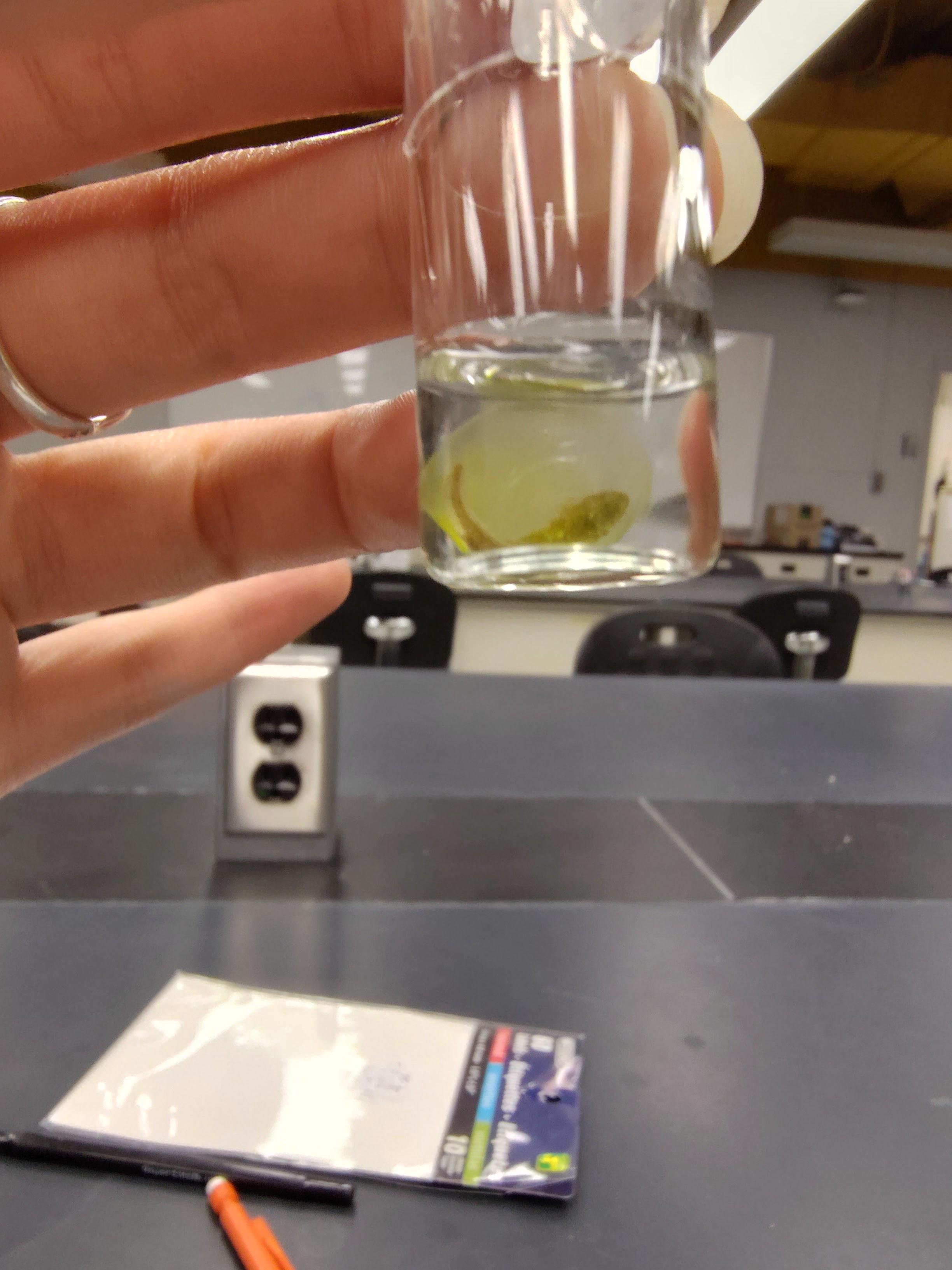

Individual eggs were kept in cuvettes in four groups: high light, medium light, low light, eggs completely in the dark. Using a fluorometer, chlorophyll a fluorescence was measured in light treated eggs to determine photosynthetic efficiency by creating OJIP curves. This was done at least twice per week. All eggs were imaged at least twice a week and embryonic development was determined using a chart and measuring gill length, tail development, etc.

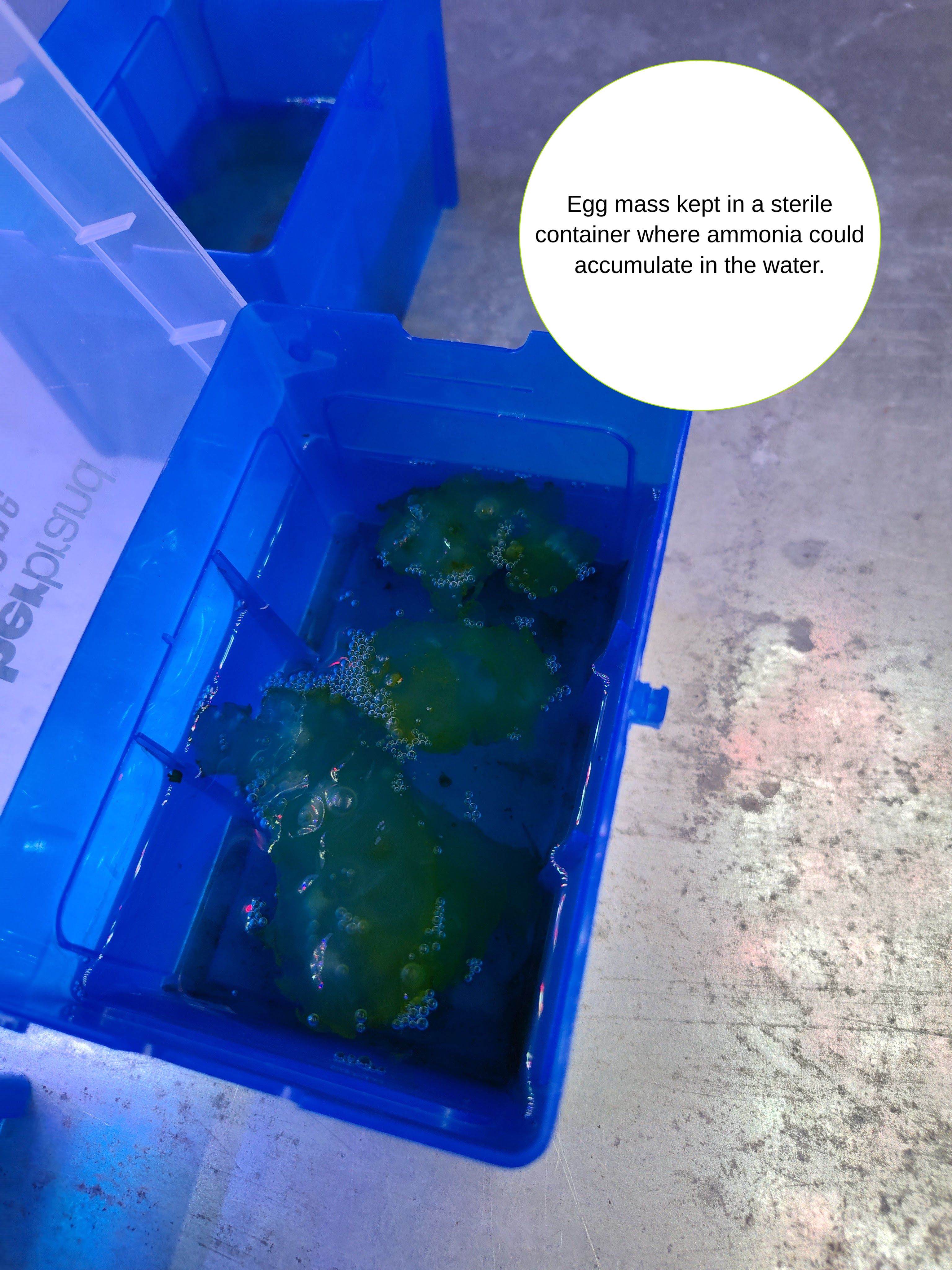

Some egg masses were kept intact and left in water in plastic boxes, in two groups: dark and light. Ammonia levels of the water were measured once per week.

Embryos were imaged two to three times per week to determine relative size and developmental speed. Images were taken with SharpCap on a laptop, connected to a microscope.

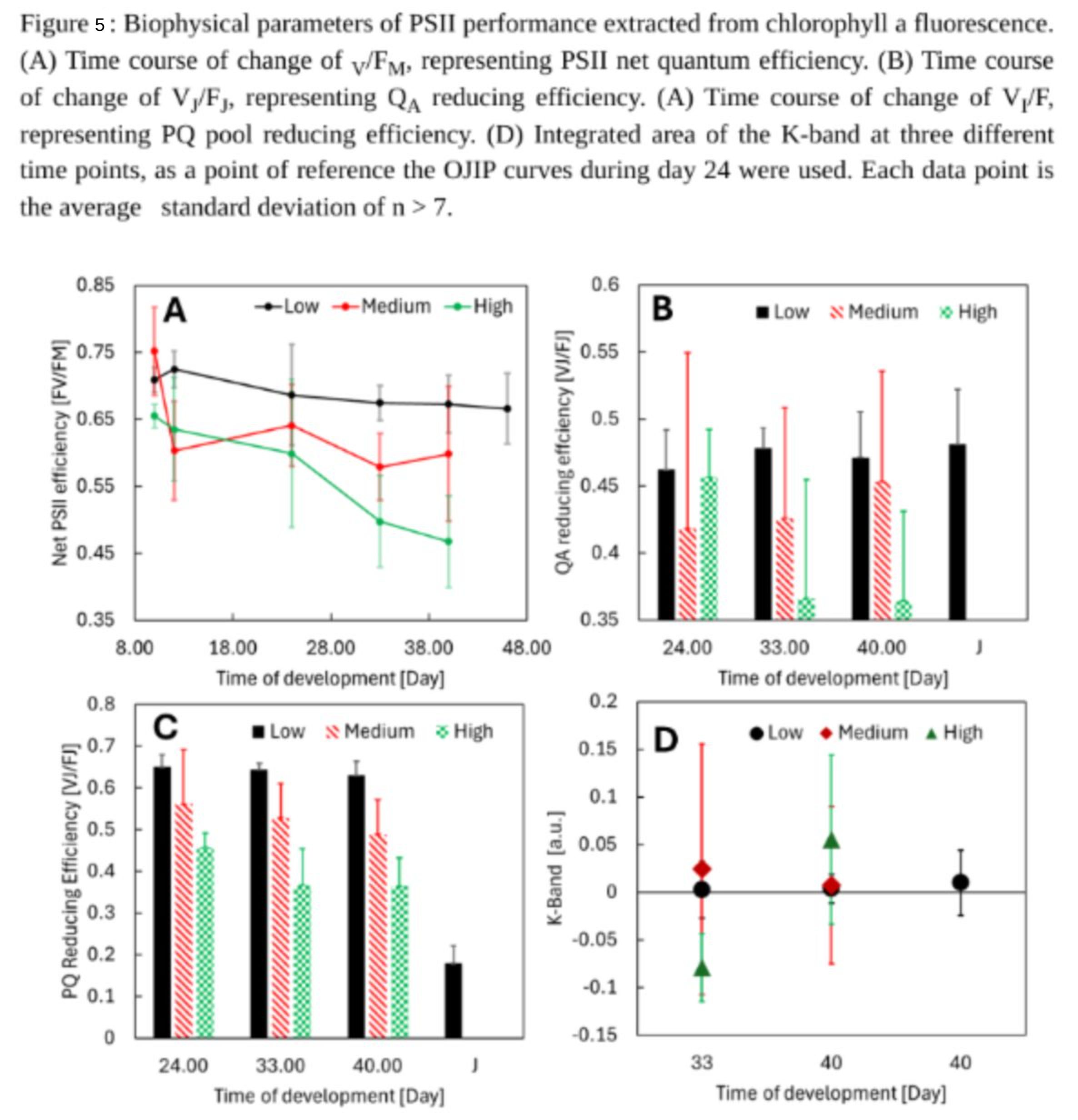

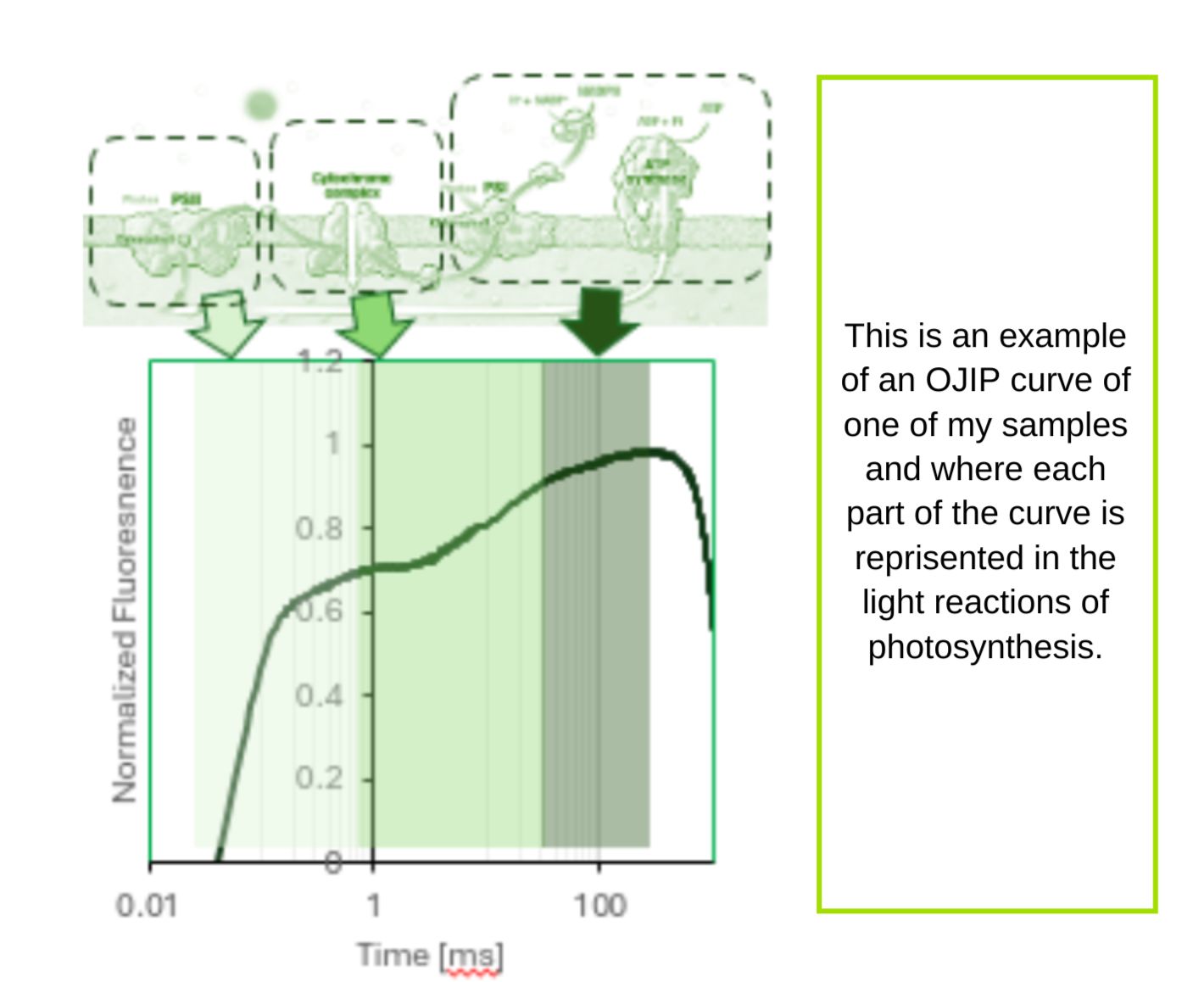

OJIP curves were created using a fluorometer. The fluorometer measures photosynthetic efficiency by measuring bottlenecks in the electron transport chain. Shapes of OJIP curves are specific to different algae species. Our graphs had two main peaks, and based on their heights in different treatments we were able determine how light treatments affect different protein complexes in the light reactions of photosynthesis.

Figure 1: Because embryos with more algae were greater in size, we hypothesize that increased oxygen production from algae increases embryo mass. In the next round of experiments, dry salamander biomass will be measured after hatching. Similarly, embryos with more algae developed faster. We also attribute this to increased oxygen supply.

Figure 2: Development of embryos was fastest at high light conditions and where algae was most abundant.

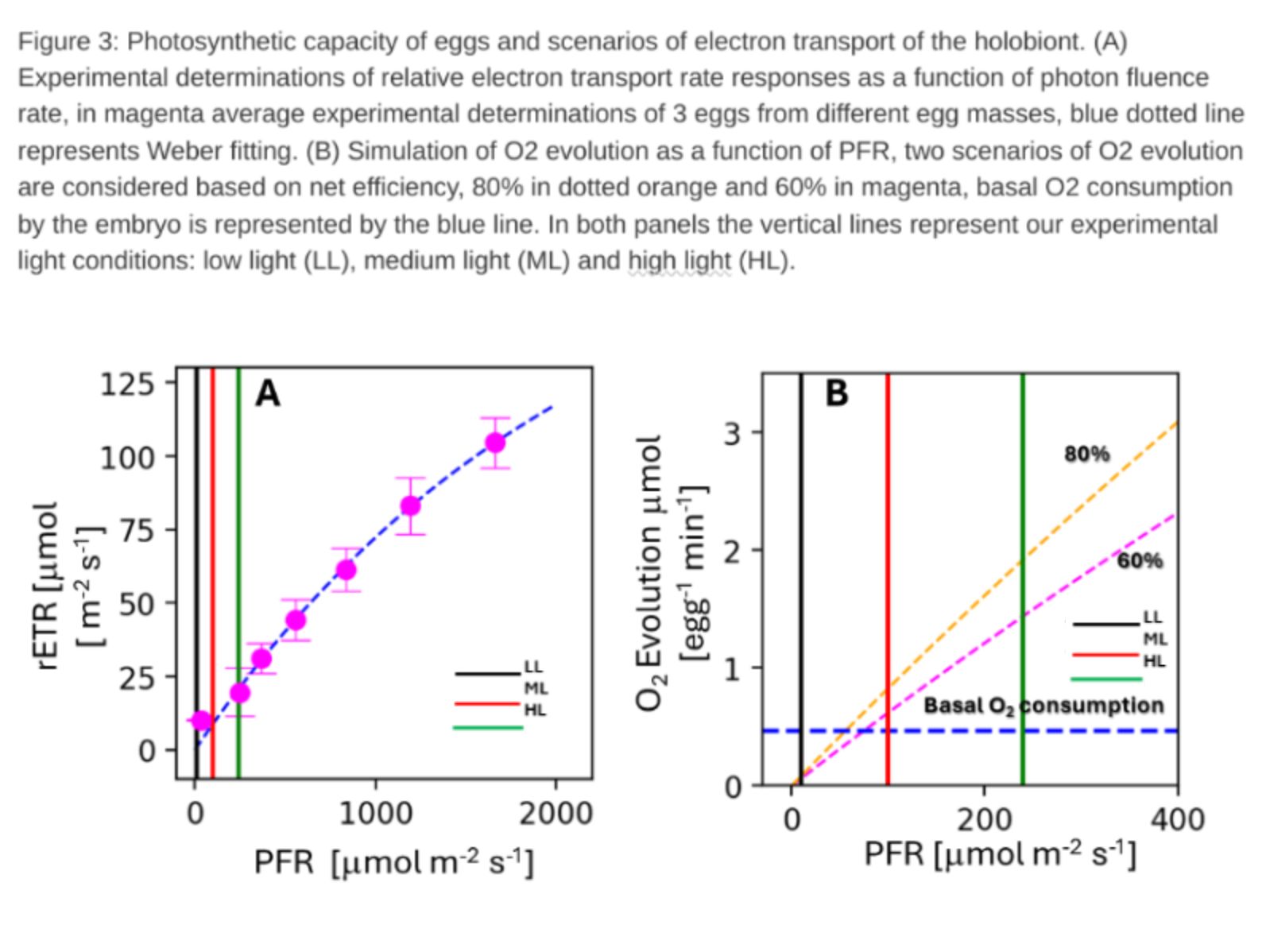

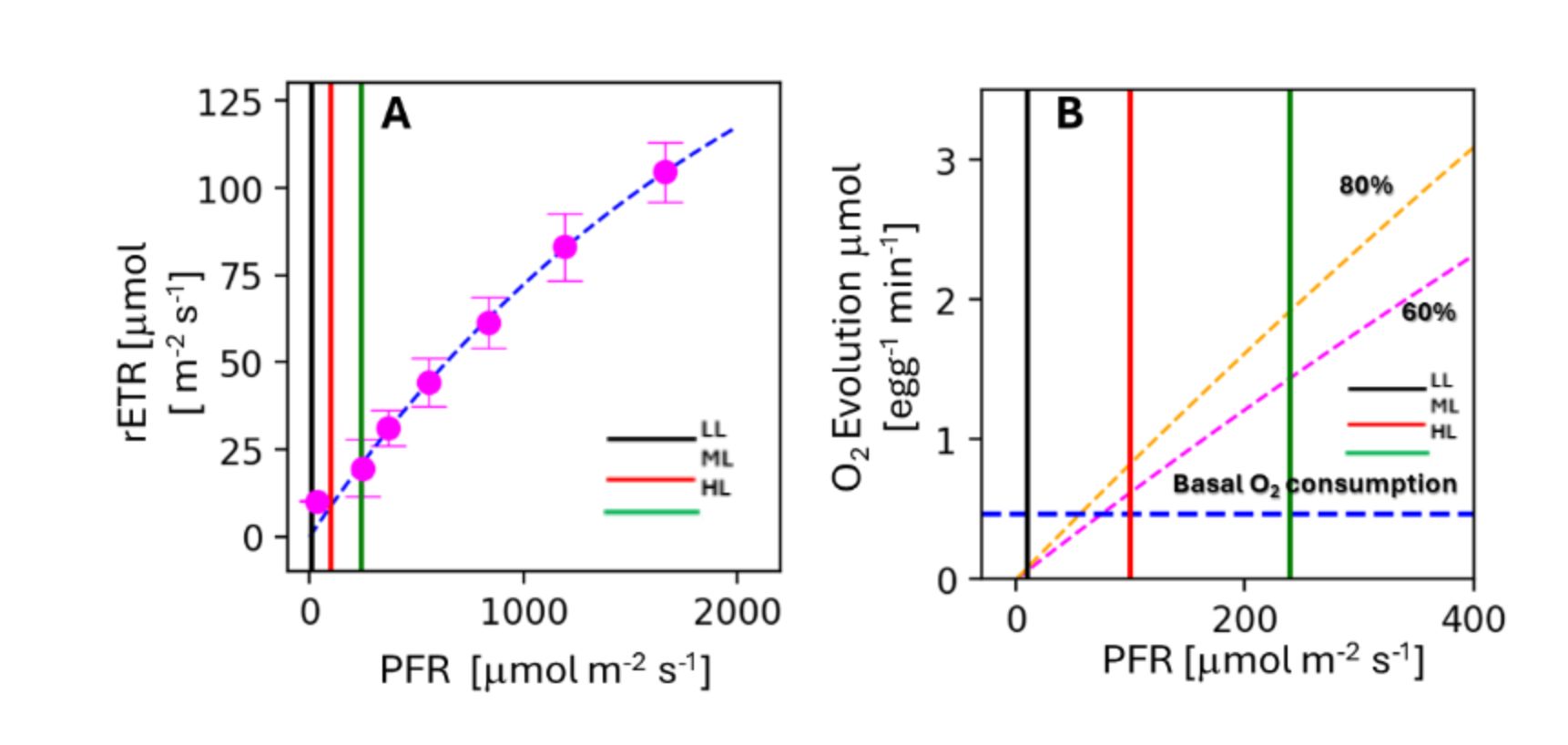

Figure 3: In high light, oxygen production by the algae was three times higher than basal embryo oxygen consumption. However, in low light, oxygen production was lower than embryo requirements. It seems likely that algae in low light would not produce enough oxygen for it's normal metabolic pathways, and that it would do fermentation when not under sufficient light conditions.

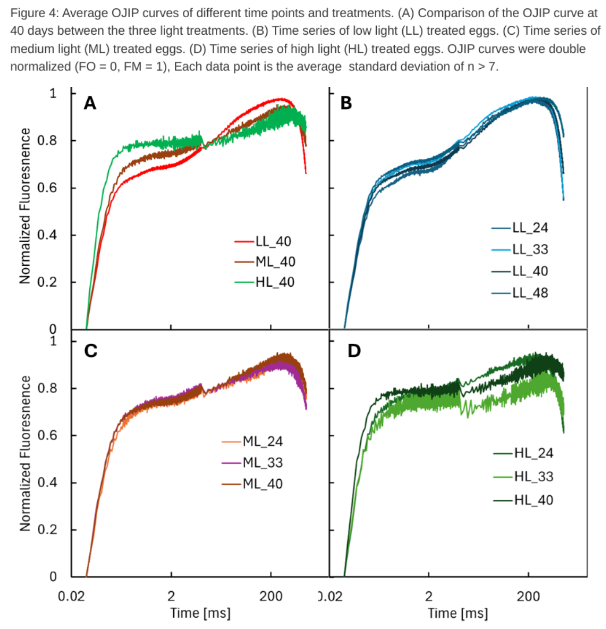

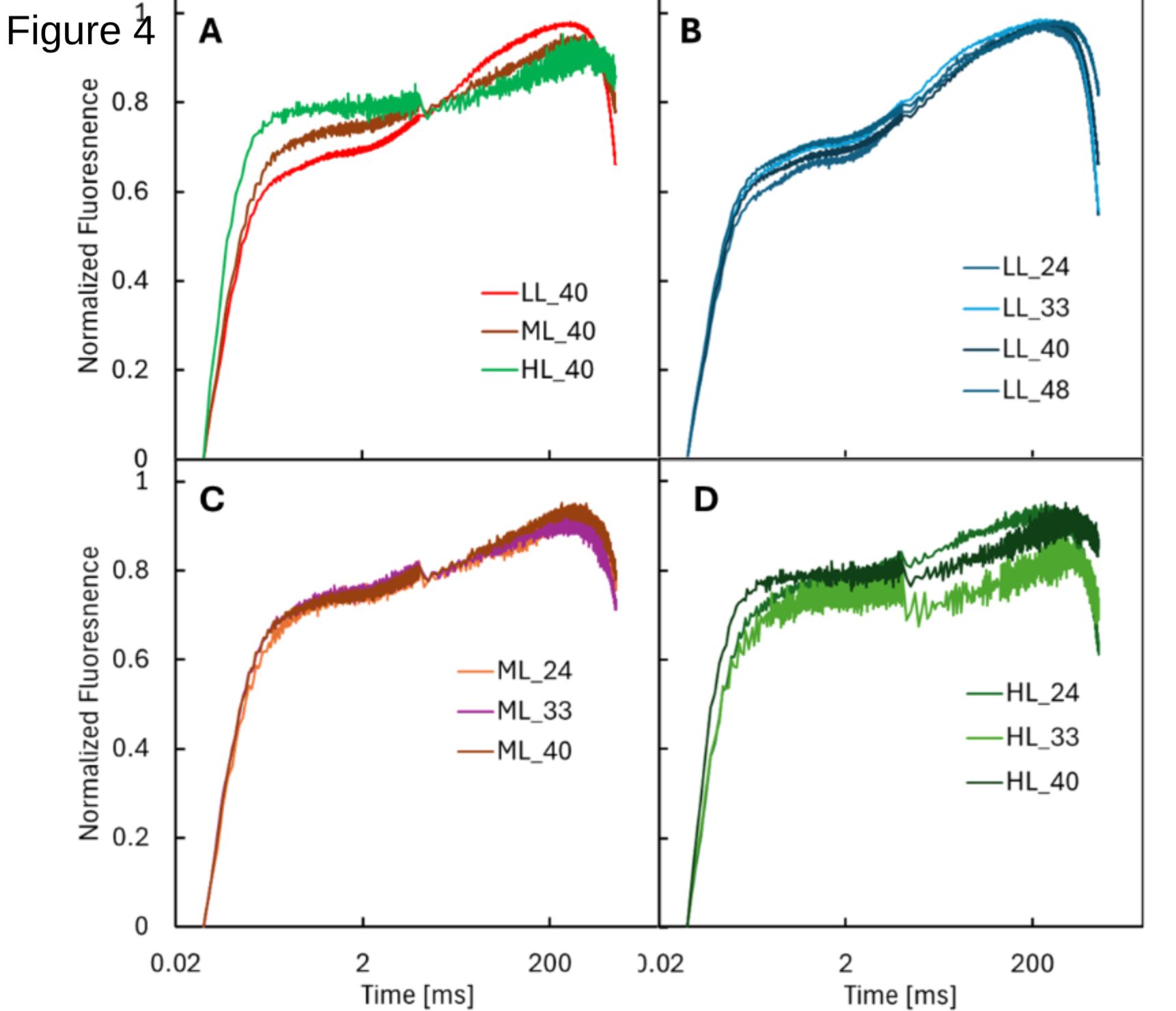

Figure 4: OJIP curves showed a decrease in photosynthetic efficiency in highlight conditions. Because of the absence of a K band on the curve, this is likely due to dynamic photoinhibition due to downregulation of Photosystem II activity.

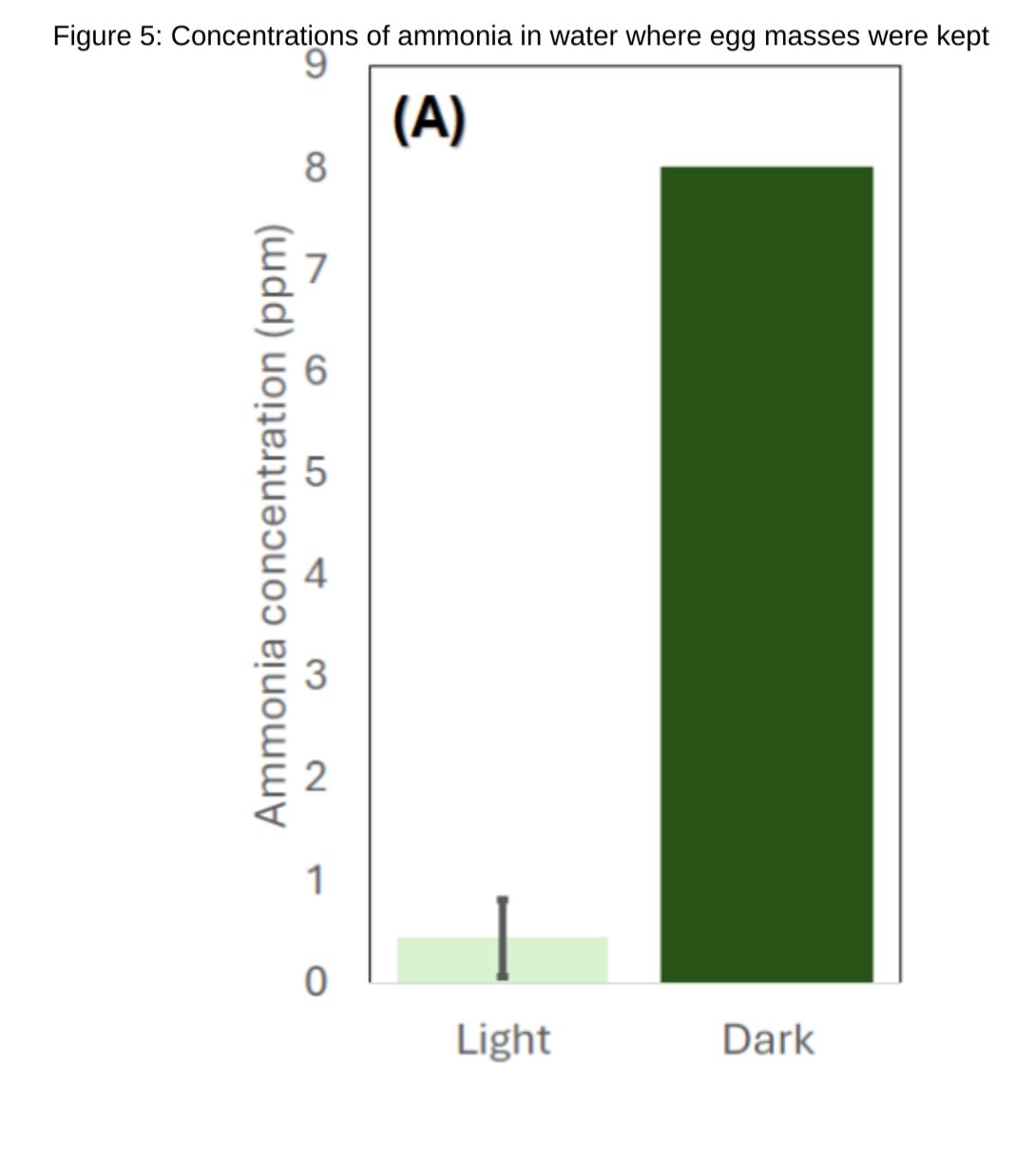

Figure 5: Ammonia levels in dark treated egg masses were 16 times higher than light treated egg masses. It is hypothesized that algae recycles ammonia, a toxic byproduct produced by the salamanders, into less toxic compounds that it can use as fertilizer.

This is a three year project, so the experiment will be repeated this spring and next spring. This year, light variable experiments will be repeated the same, except each light treatment will have one egg from each egg mass collected, to control for genetic effects from salamander mothers. Also, further ammonia experiments will be done by using a type of bacteria commonly used in fish tanks that recycles ammonia to see if it has similar effects to egg masses with algae.

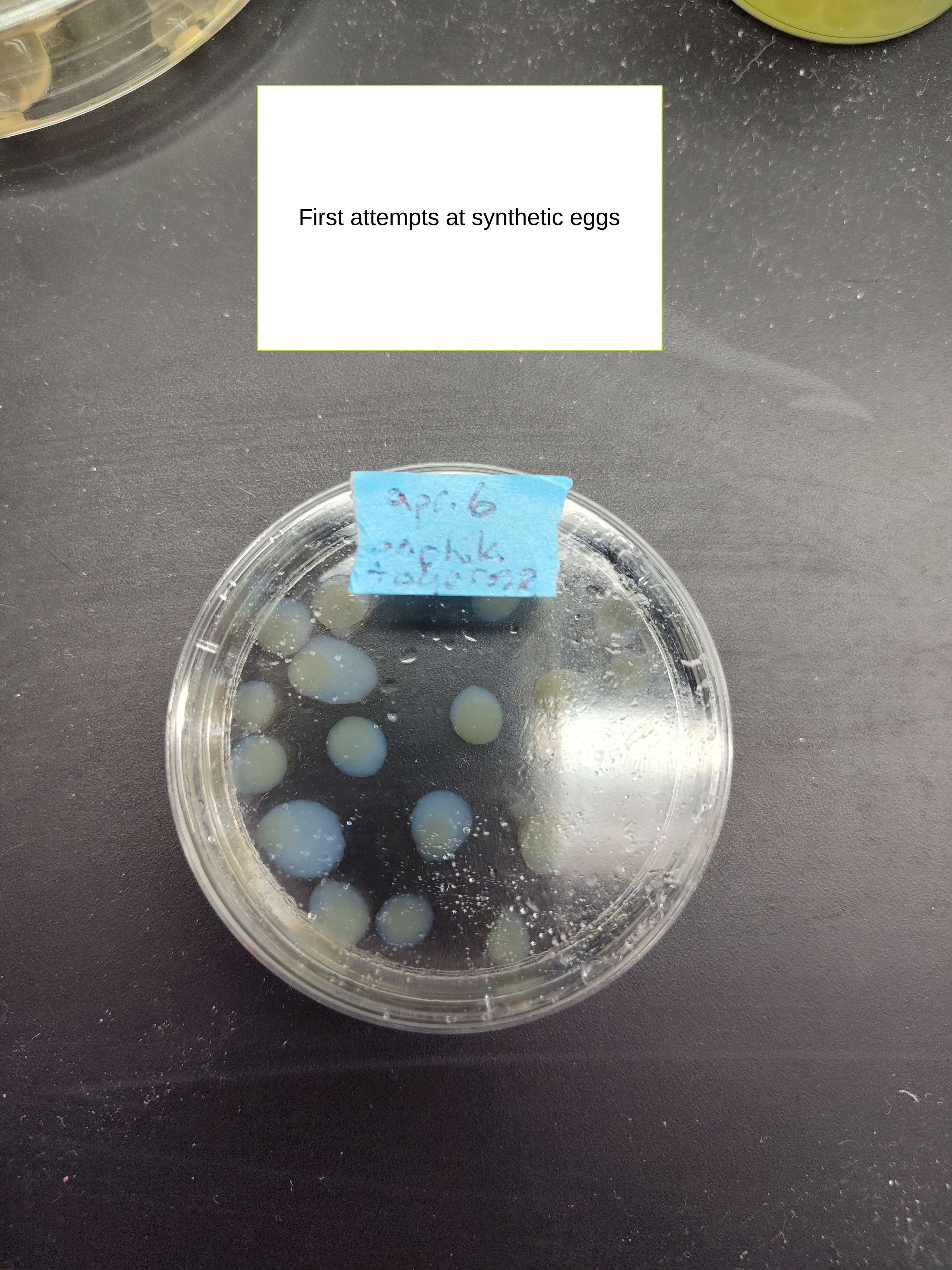

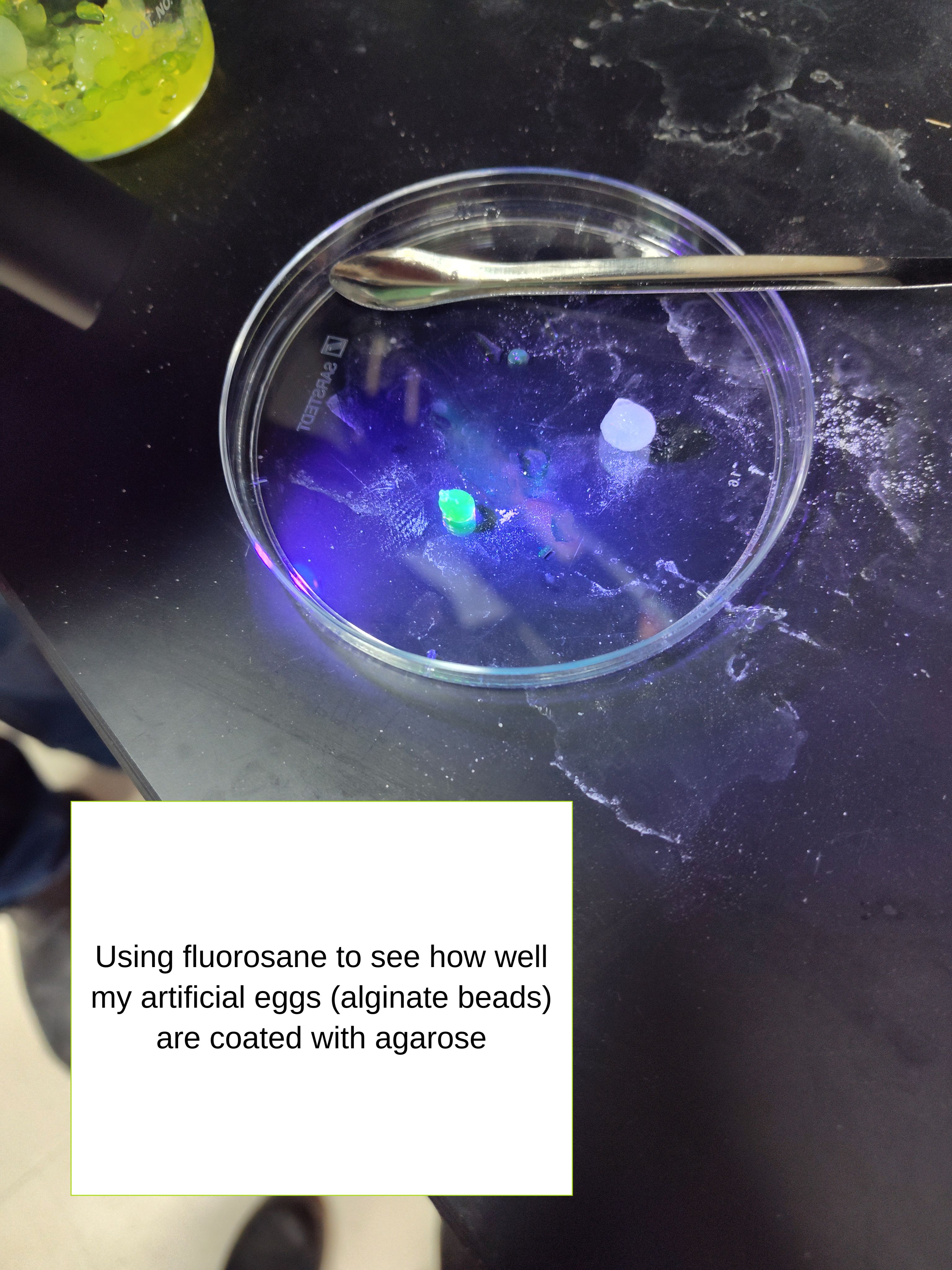

I'm also developing synthetic eggs made of alginate and agarose that can be used for more controlled, year-round experiments.

Credit statement

Conceptualization: Alonso Zavafer, Glenn Tattersall; Methodology: Alonso Zavafer; Software: Alonso Zavafer; Validation: Laura Palumbo, Alonso Zavafer; Formal analysis: Alonso Zavafer; Investigation: Laura Palumbo, Alonso Zavafer, Glenn Tattersall; Resources: Patrick Moldowan, Alonso Zavafer, Glenn Tattersall; Data Curation: Alonso Zavafer, Laura Palumbo; Writing - Original Draft: Laura Palumbo, Alonso Zavafer; Writing - Review & Editing: Laura Palumbo, Patrick Moldowan, Glenn Tattersall; Visualization: Laura Palumbo, Alonso Zavafer; Supervision: Alonso Zavafer; Project administration: Alonso Zavafer; Funding acquisition: Alonso Zavafer, Glenn Tattersall.

Acknowledgement

Laura Palumbo and Alonso Zavafer thank Dr. Jae Jung for the support in the preparations for the field work in Algonquin Park.

Alonso Zavafer and Glenn Tattersall would like to thank the staff of the Algonquin Park Research Station for their continuous and selfless support.

Funding

Alonso Zavafer and Glenn Tattersall were financially supported by an NSERC Discovery Program.

References

Bachmann MD, Carlton RG, Burkholder JM, Wetzel RG (1986) Symbiosis between salamander eggs and green algae: microelectrode measurements inside eggs demonstrate effect of photosynthesis on oxygen concentration. Canadian Journal of Zoology 64 (7):1586-1588

Bates H, Zavafer A, Szabó M, Ralph PJ (2019) A guide to Open-JIP, a low-cost open-source chlorophyll fluorometer. Photosynthesis research 142 (3):361-368

Bates H, Zavafer A, Szabó M, Ralph PJ (2023) The slow-phase of chlorophyll fluorescence induction curve reflects the electron transport rates of Photosystem II in vivo in Chlorella vulgaris. Journal of Applied Phycology 35 (1):109-116

Bishop CD, Miller AG (2014) Dynamics of the growth, life history transformation and photosynthetic capacity of Oophila amblystomatis (Chlorophyceae), a green algal symbiont associated with embryos of the northeastern yellow spotted salamander Ambystoma maculatum (Amphibia). Symbiosis 63 (2):47-57

Burns JA, Kerney R, Duhamel S (2020) Heterotrophic Carbon Fixation in a Salamander-Alga Symbiosis. Front Microbiol 11:1815. doi:10.3389/fmicb.2020.01815

Burns JA, Zhang H, Hill E, Kim E, Kerney R (2017) Transcriptome analysis illuminates the nature of the intracellular interaction in a vertebrate-algal symbiosis. Elife 6:e22054. doi:10.7554/eLife.22054

Duanmu D, Casero D, Dent RM, Gallaher S, Yang W, Rockwell NC, Martin SS, Pellegrini M, Niyogi KK, Merchant SS, Grossman AR, Lagarias JC (2013) Retrograde bilin signaling enables <i>Chlamydomonas</i> greening and phototrophic survival. Proceedings of the National Academy of Sciences 110 (9):3621-3626. doi:doi:10.1073/pnas.1222375110

Earl JE, Luhring TM, Williams BK, Semlitsch RD (2011) Biomass export of salamanders and anurans from ponds is affected differentially by changes in canopy cover. Freshwater Biology 56 (12):2473-2482

Figueroa FL, Conde-Alvarez R, Gómez I (2003) Relations between electron transport rates determined by pulse amplitude modulated chlorophyll fluorescence and oxygen evolution in macroalgae under different light conditions. Photosynthesis Research 75 (3):259-275

Flameling IA, Kromkamp J (1998) Light dependence of quantum yields for PSII charge separation and oxygen evolution in eucaryotic algae. Limnology and oceanography 43 (2):284-297

Gfeller RP, Gibbs M (1984) Fermentative Metabolism of Chlamydomonas reinhardtii: I. Analysis of Fermentative Products from Starch in Dark and Light. Plant Physiol 75 (1):212-218. doi:10.1104/pp.75.1.212

Gilbert PW (1942) Observations on the eggs of Ambystoma maculatum with especial reference to the green algae found within the egg envelopes. Ecology 23 (2):215-227

Gilbert PW (1944) The alga-egg relationship in Ambystoma maculatum, a case of symbiosis. Ecology 25 (3):366-369

Hakala M, Tuominen I, Keranen M, Tyystjarvi T, Tyystjarvi E (2005) Evidence for the role of the oxygen-evolving manganese complex in photoinhibition of Photosystem II. Biochim Biophys Acta 1706 (1-2):68-80. doi:10.1016/j.bbabio.2004.09.001

Han B-P, Virtanen M, Koponen J, Straškraba M (2000) Effect of photoinhibition on algal photosynthesis: a dynamic model. Journal of plankton research 22 (5):865-885

Hutchison VH, Hammen CS (1958) Oxygen utilization in the symbiosis of embryos of the salamander, Ambystoma maculatum and the alga, Oophila amblystomatis. The Biological Bulletin 115 (3):483-489

Iermak I, Szabo M, Zavafer A (2020) Special issue in honour of Prof. Reto J. Strasser–Analysis of OJIP transients during photoinactivation of photosystem II indicates the presence of multiple photosensitizers in vivo and in vitro. Photosynthetica 58 (SPECIAL ISSUE):497-506

Ihnken S, Eggert A, Beardall J (2010) Exposure times in rapid light curves affect photosynthetic parameters in algae. Aquatic Botany 93 (3):185-194

Kalaji HM, Schansker G, Brestic M, Bussotti F, Calatayud A, Ferroni L, Goltsev V, Guidi L, Jajoo A, Li P (2017) Frequently asked questions about chlorophyll fluorescence, the sequel. Photosynthesis research 132 (1):13-66

Kalaji HM, Schansker G, Ladle RJ, Goltsev V, Bosa K, Allakhverdiev SI, Brestic M, Bussotti F, Calatayud A, Dąbrowski P (2014) Frequently asked questions about in vivo chlorophyll fluorescence: practical issues. Photosynthesis research 122 (2):121-158

Kern MM, Nassar AA, Guzy JC, Dorcas ME (2013) Oviposition site selection by spotted salamanders (Ambystoma maculatum) in an isolated wetland. Journal of Herpetology 47 (3):445-449

Kerney R, Kim E, Hangarter RP, Heiss AA, Bishop CD, Hall BK (2011) Intracellular invasion of green algae in a salamander host. Proc Natl Acad Sci U S A 108 (16):6497-6502. doi:10.1073/pnas.1018259108

Mohamed A, Cumbo V, Harii S, Shinzato C, Chan C, Ragan M, Bourne D, Willis B, Ball E, Satoh N (2016) The transcriptomic response of the coral Acropora digitifera to a competent Symbiodinium strain: the symbiosome as an arrested early phagosome. Molecular ecology 25 (13):3127-3141

Olivier HM, Moon BR (2010) The effects of atrazine on spotted salamander embryos and their symbiotic alga. Ecotoxicology 19 (4):654-661

Osmond B, Chow WS, Wyber R, Zavafer A, Keller B, Pogson BJ, Robinson SA (2017) Relative functional and optical absorption cross-sections of PSII and other photosynthetic parameters monitored in situ, at a distance with a time resolution of a few seconds, using a prototype light induced fluorescence transient (LIFT) device. Functional Plant Biology 44 (10):985-1006

Osmond C, Grace S (1995) Perspectives on photoinhibition and photorespiration in the field: quintessential inefficiencies of the light and dark reactions of photosynthesis? Journal of Experimental Botany 46 (special_issue):1351-1362

Pinder A, Friet S (1994) Oxygen Transport in Egg Masses of the Amphibians Rana Sylvatica and Ambystoma Maculatum: Convection, Diffusion and Oxygen Production by Algae. J Exp Biol 197 (1):17-30. doi:10.1242/jeb.197.1.17

Ralph PJ, Gademann R (2005) Rapid light curves: a powerful tool to assess photosynthetic activity. Aquatic botany 82 (3):222-237

Rowland FE, Rawlings MB, Semlitsch RD (2017) Joint effects of resources and amphibians on pond ecosystems. Oecologia 183 (1):237-247. doi:10.1007/s00442-016-3748-5

Serôdio J, Campbell DA (2021) Photoinhibition in optically thick samples: Effects of light attenuation on chlorophyll fluorescence-based parameters. Journal of Theoretical Biology 513:110580. doi:https://doi.org/10.1016/j.jtbi.2021.110580

Sipka GB, Magyar M, Mezzetti A, Akhtar P, Zhu Q, Xiao Y, Han G, Santabarbara S, Shen JR, Lambrev PH, Garab G (2021) Light-adapted charge-separated state of photosystem II: structural and functional dynamics of the closed reaction center. Plant Cell 33 (4):1286-1302. doi:10.1093/plcell/koab008

Small DP, Bennett RS, Bishop CD (2014) The roles of oxygen and ammonia in the symbiotic relationship between the spotted salamander Ambystoma maculatum and the green alga Oophila amblystomatis during embryonic development. Symbiosis 64 (1):1-10

Small DP, Bishop CD (2020) Physiological benefits and latent effects of an algal-salamander symbiosis. Comp Biochem Physiol A Mol Integr Physiol 246:110715. doi:10.1016/j.cbpa.2020.110715

Strasser BJ (1997) Donor side capacity of photosystem II probed by chlorophyll a fluorescence transients. Photosynthesis research 52 (2):147-155

Tansik AL, Fitt WK, Hopkinson BM (2017) Inorganic carbon is scarce for symbionts in scleractinian corals. Limnology and Oceanography 62 (5):2045-2055

Tattersall GJ, Spiegelaar N (2008) Embryonic motility and hatching success of Ambystoma maculatum are influenced by a symbiotic alga. Canadian Journal of Zoology 86 (11):1289-1298

Toth SZ, Schansker G, Strasser RJ (2007) A non-invasive assay of the plastoquinone pool redox state based on the OJIP-transient. Photosynth Res 93 (1-3):193-203. doi:10.1007/s11120-007-9179-8

Valls JH, Mills NE (2007) Intermittent hypoxia in eggs of Ambystoma maculatum: embryonic development and egg capsule conductance. J Exp Biol 210 (Pt 14):2430-2435. doi:10.1242/jeb.003541

Vass I, Cser K (2009) Janus-faced charge recombinations in photosystem II photoinhibition. Trends Plant Sci 14 (4):200-205. doi:10.1016/j.tplants.2009.01.009

Weber J, Tenhunen J, Westrin S, Yocum C, Gates D (1981) An analytical model of photosynthetic response of aquatic plants to inorganic carbon and pH. Ecology 62 (3):697-705

White AJ, Critchley C (1999) Rapid light curves: a new fluorescence method to assess the state of the photosynthetic apparatus. Photosynthesis research 59 (1):63-72

Yang H, Genot B, Duhamel S, Kerney R, Burns JA (2022) Organismal and cellular interactions in vertebrate-alga symbioses. Biochem Soc Trans 50 (1):609-620. doi:10.1042/BST20210153

Zavafer A (2021) A theoretical framework of the hybrid mechanism of photosystem II photodamage. Photosynthesis Research 149 (1):107-120

Zavafer A, Chow WS, Cheah MH (2015) The action spectrum of Photosystem II photoinactivation in visible light. Journal of Photochemistry and Photobiology B: Biology 152:247-260

Zavafer A, Mancilla C, Jolley G, Murakami K (2023) On the concepts and correct use of radiometric quantities for assessing the light environment and their application to plant research. Biophysical Reviews 15 (3):385-400
