Early Warning of Water Quality Risk Using Real Time Sensor Data

Clean water is really important, but sometimes we don’t know if water is safe right away. We learned that normal water testing can take a long time because samples have to be sent to a lab. By the time results come back, people might have already used or drunk the water. That made me think, what if we could get a warning earlier?

We got the idea from smoke detectors. They warn us before a fire gets too big. We wanted to make something similar for water. Then we read more about it.

In our project, we built a system that uses sensors to check water in real time. It keeps watching the water and compares it to normal conditions. If something changes a lot, it gives a warning.

Our hypothesis is that if the sensor values change by more than 20%, the system can detect a problem early.

To test this, we added safe things like salt and dirt to water and watched how the sensors reacted.

This project can help people notice water problems faster. In the future, it could help keep people safe and protect the environment.

First, we did some background research to understand what affects water quality. We used simple and reliable sources like science websites, school resources, and videos that explain turbidity and TDS. We made sure the information matched across different sources before using it.

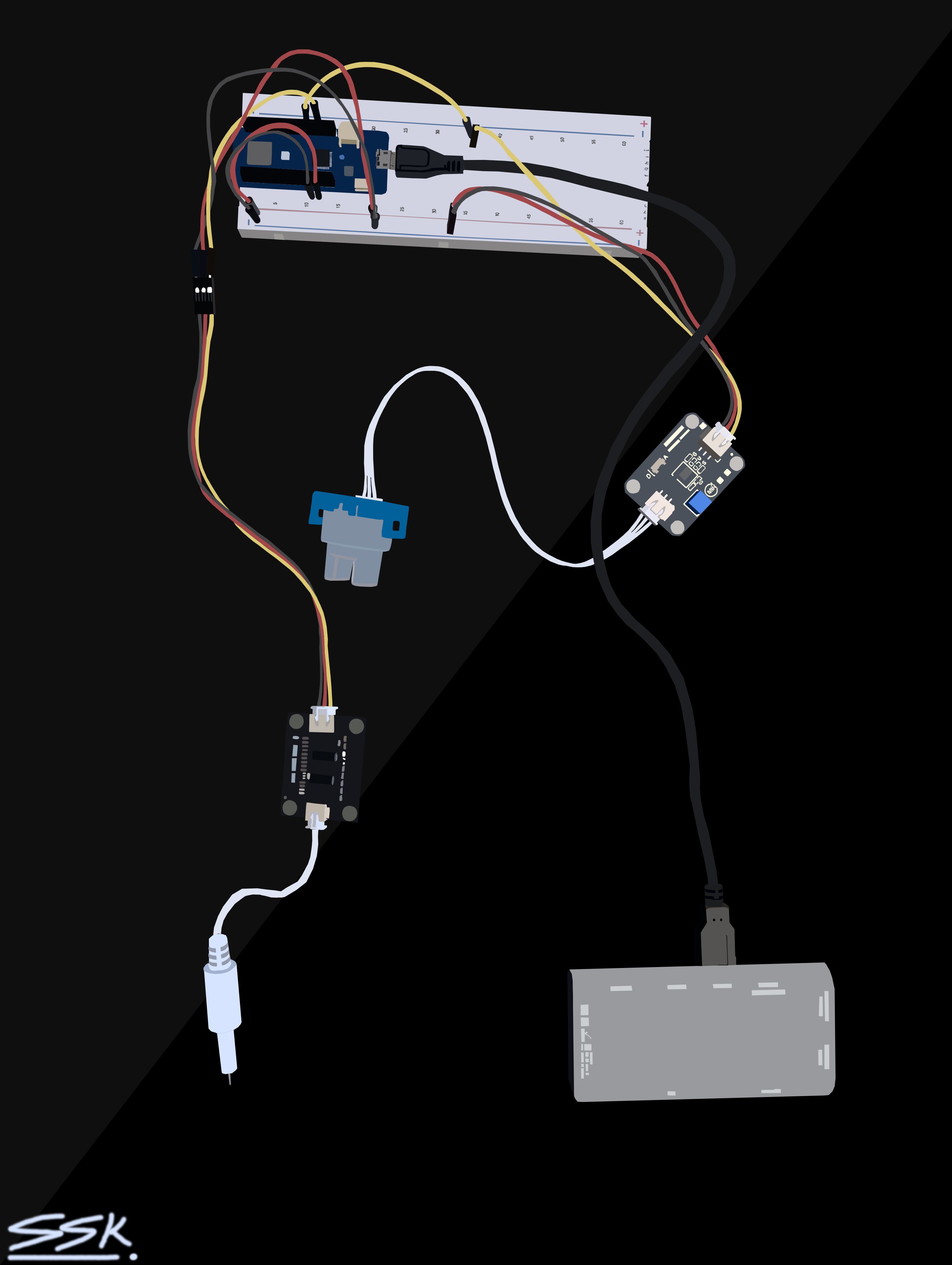

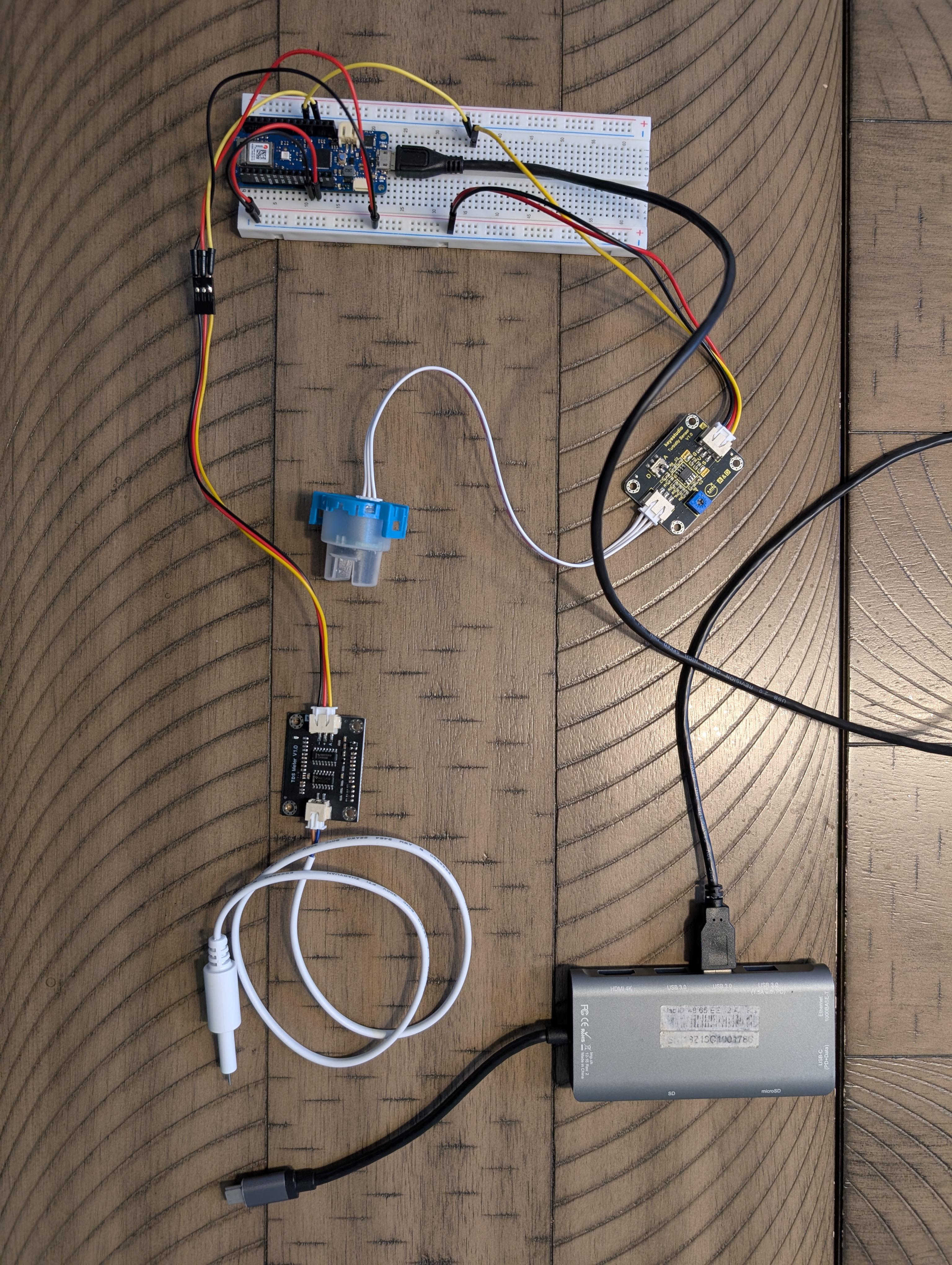

For our project, We built a small system using water sensors. We used a turbidity sensor to measure how cloudy the water is and a TDS sensor to measure dissolved particles. We connected these sensors to a microcontroller and wrote a simple program to record the data.

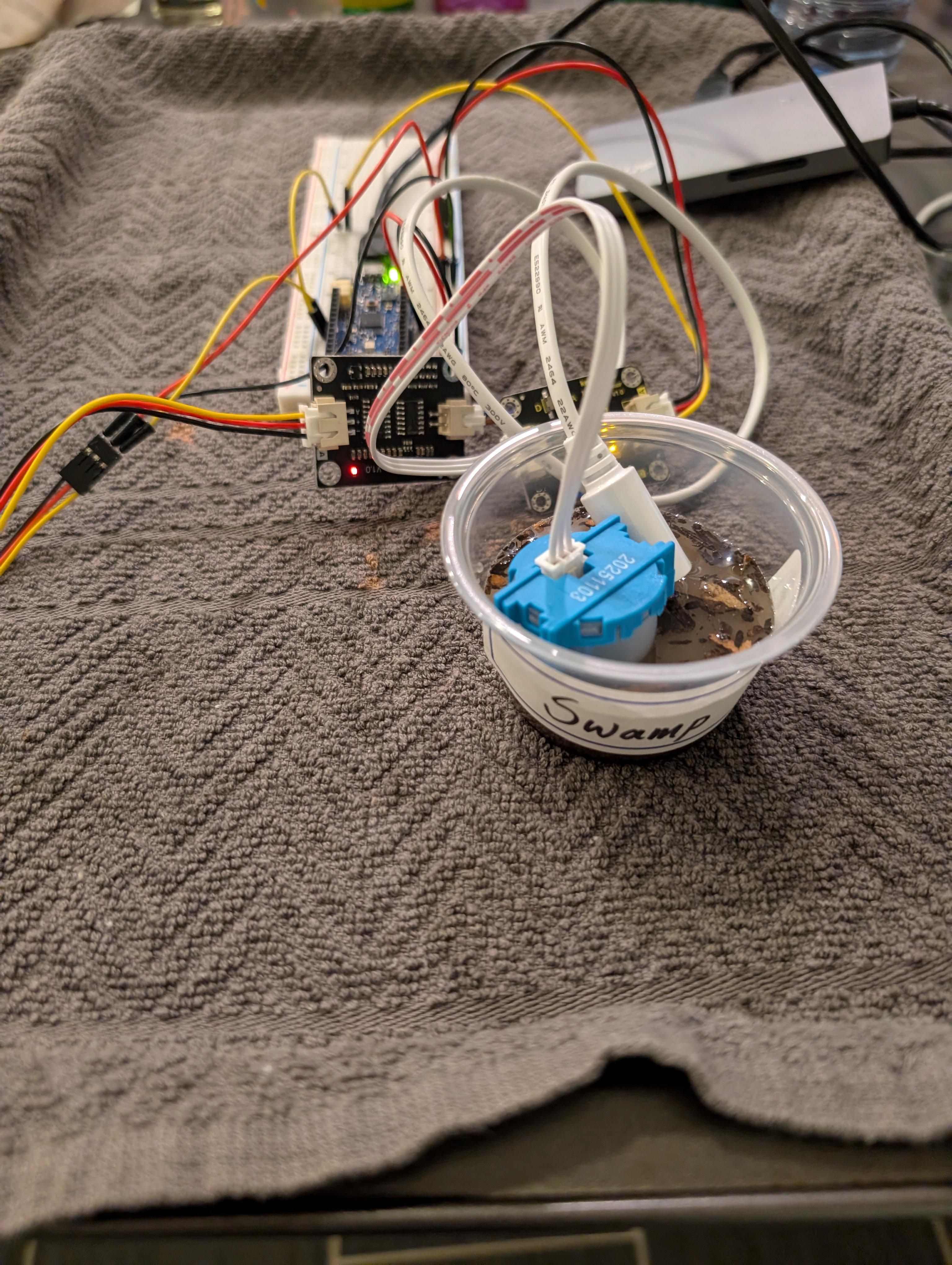

We started by measuring clean water to create a “baseline” (normal values). Then we added safe materials like salt and soil to the water to simulate contamination. Each time we added something, we recorded how the sensor values changed.

We tested multiple samples, around 8–10 trials, to make sure our results were consistent. We kept some things the same every time, like the amount of water, the container, and the sensors, so that the test would be fair.

We collected data by writing down the sensor readings and also observing how fast the values changed. If the readings increased or decreased by more than 20%, we treated it as a warning.

This helped us see how well our system could detect changes in water quality in real time.

From our experiments, we found that the sensors were able to detect changes in water quality very quickly. When we added materials like salt or soil, both the turbidity and TDS readings increased compared to the clean water baseline.

In most of our tests, the sensor values changed by more than 20% within a short time after adding the contaminant. This means our system was able to trigger an early warning as expected. For example, when we added soil, the turbidity values increased sharply because the water became cloudy. When we added salt, the TDS values increased because more dissolved particles were present.

Our prototype works by continuously checking the sensor values and comparing them to the normal baseline. If the values change too much, it gives a warning signal. This shows that the system can act like an early alert tool instead of waiting for lab results.

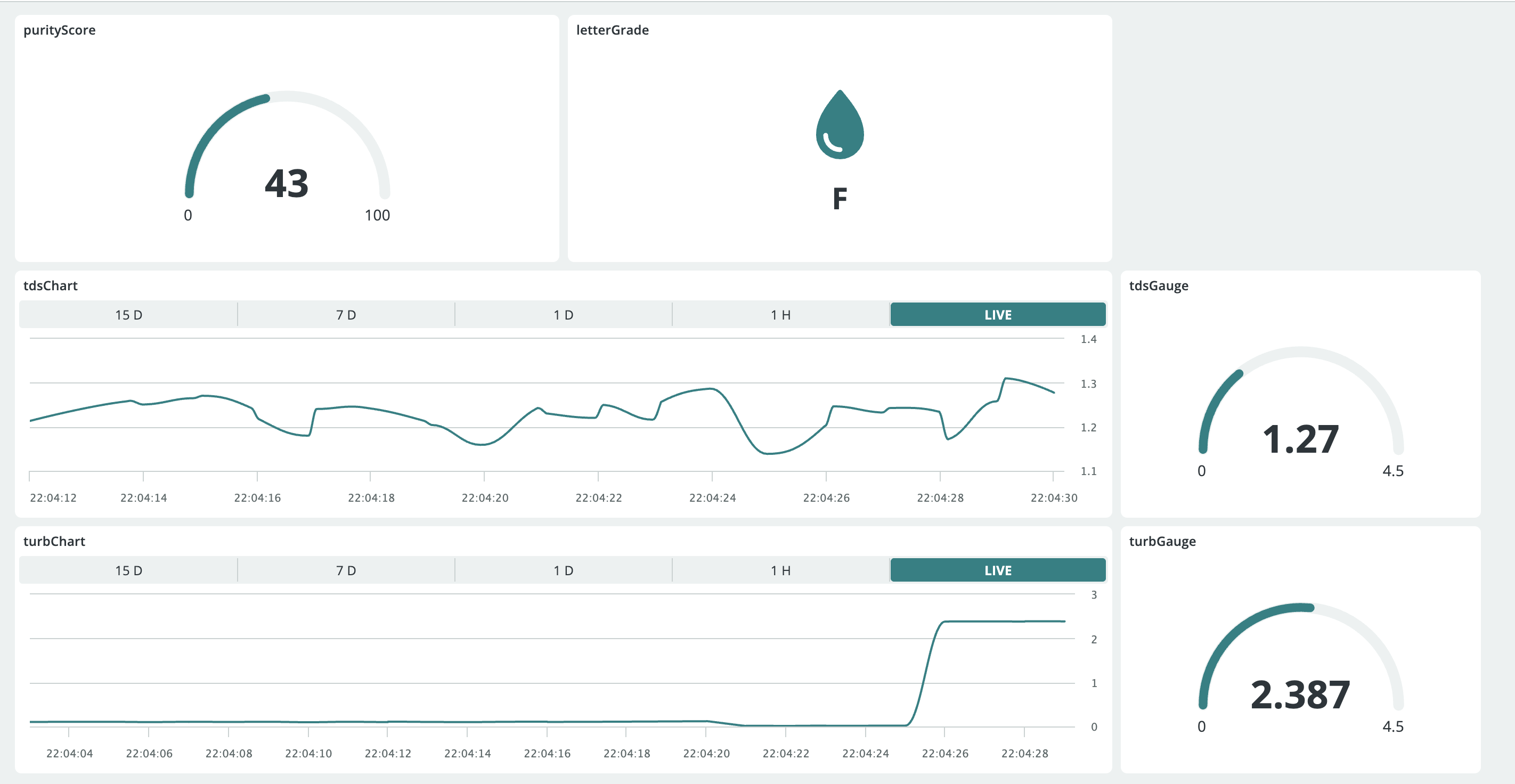

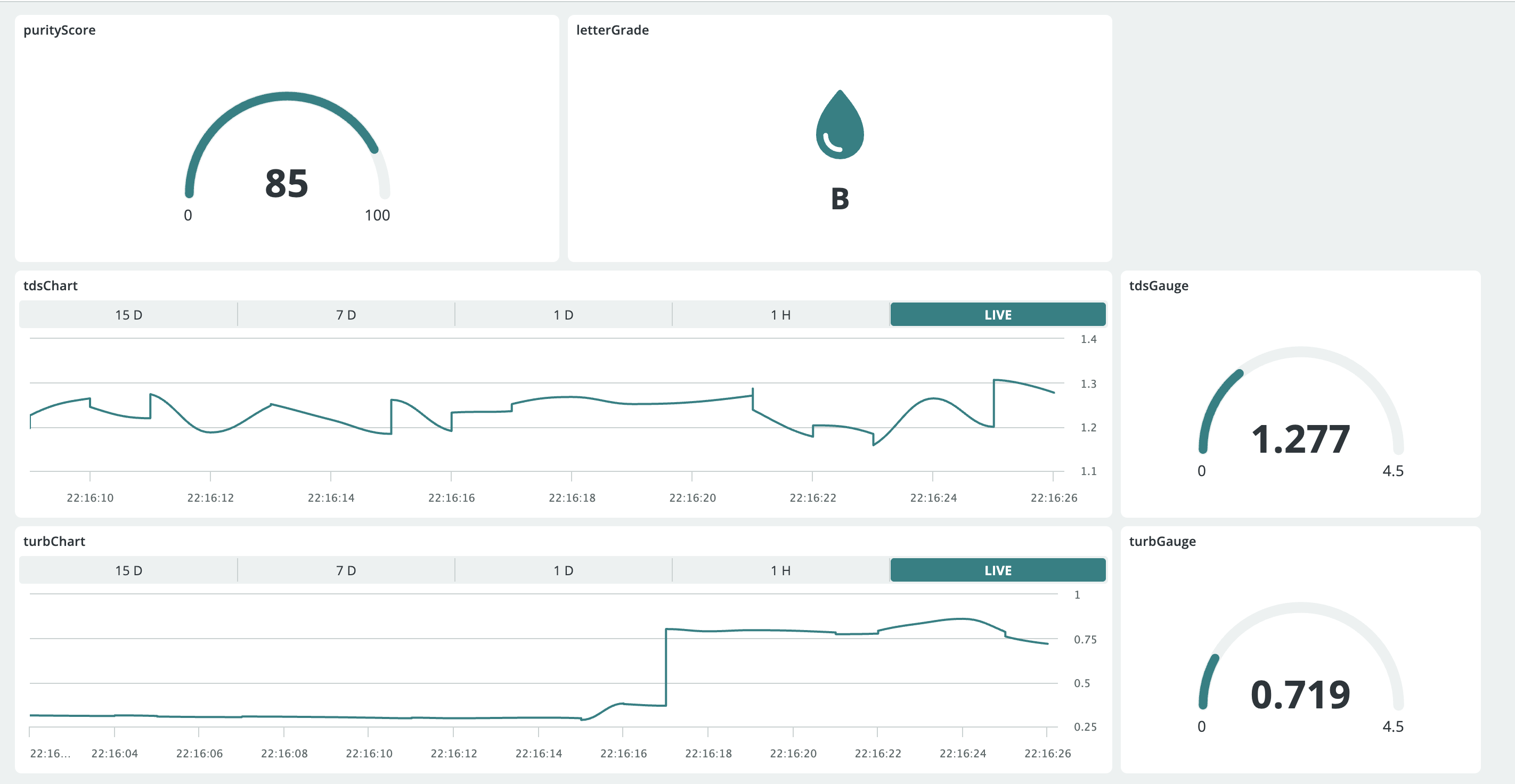

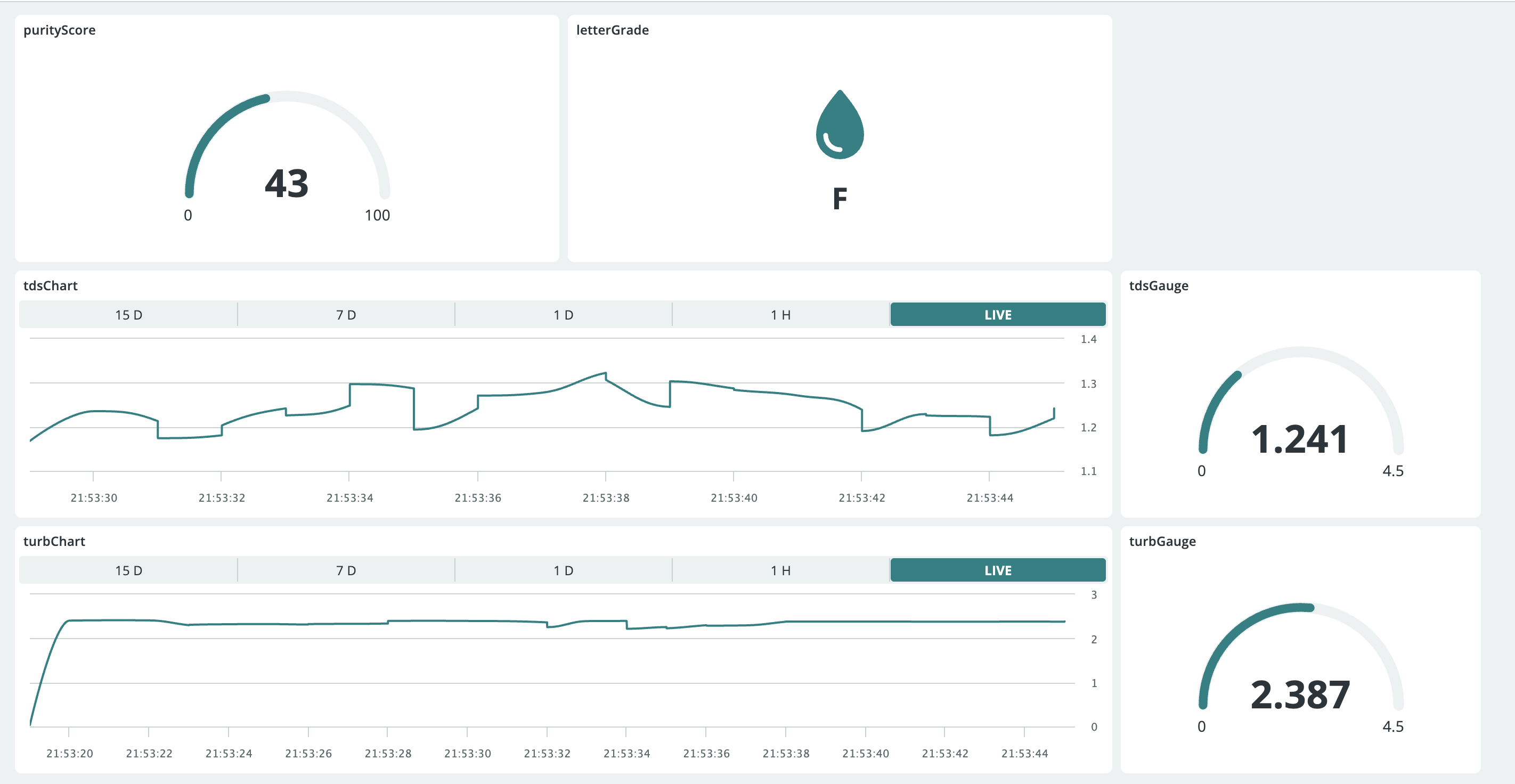

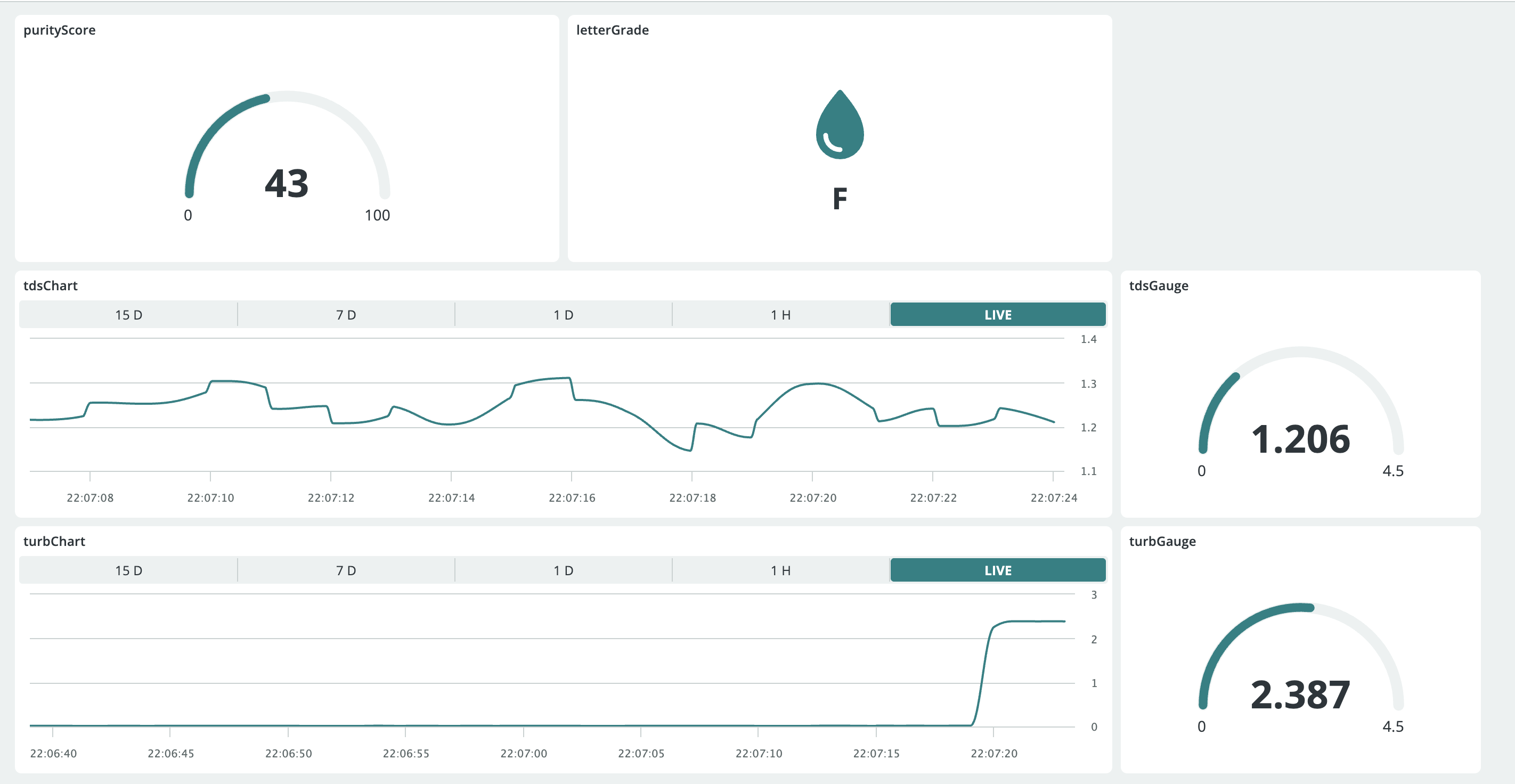

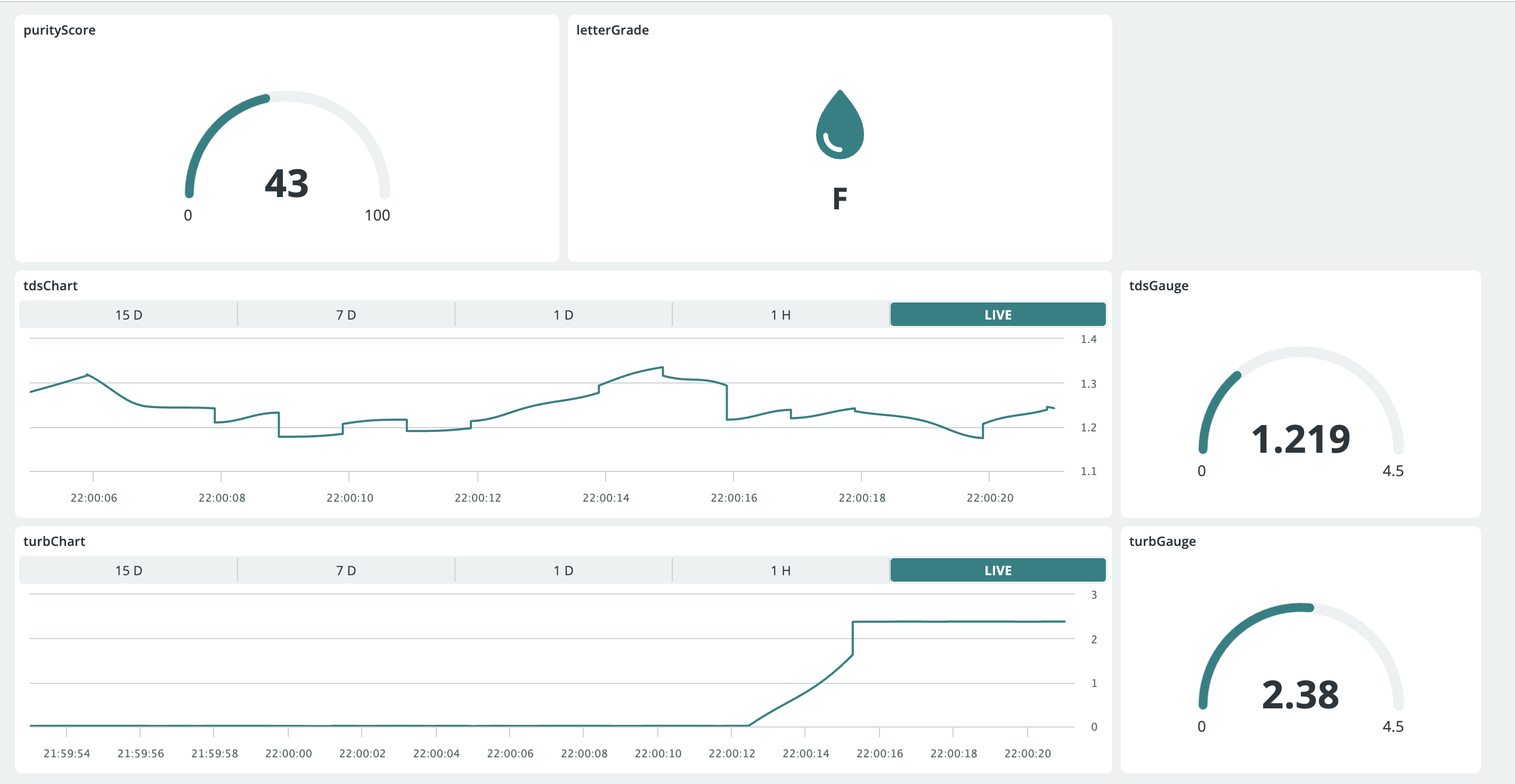

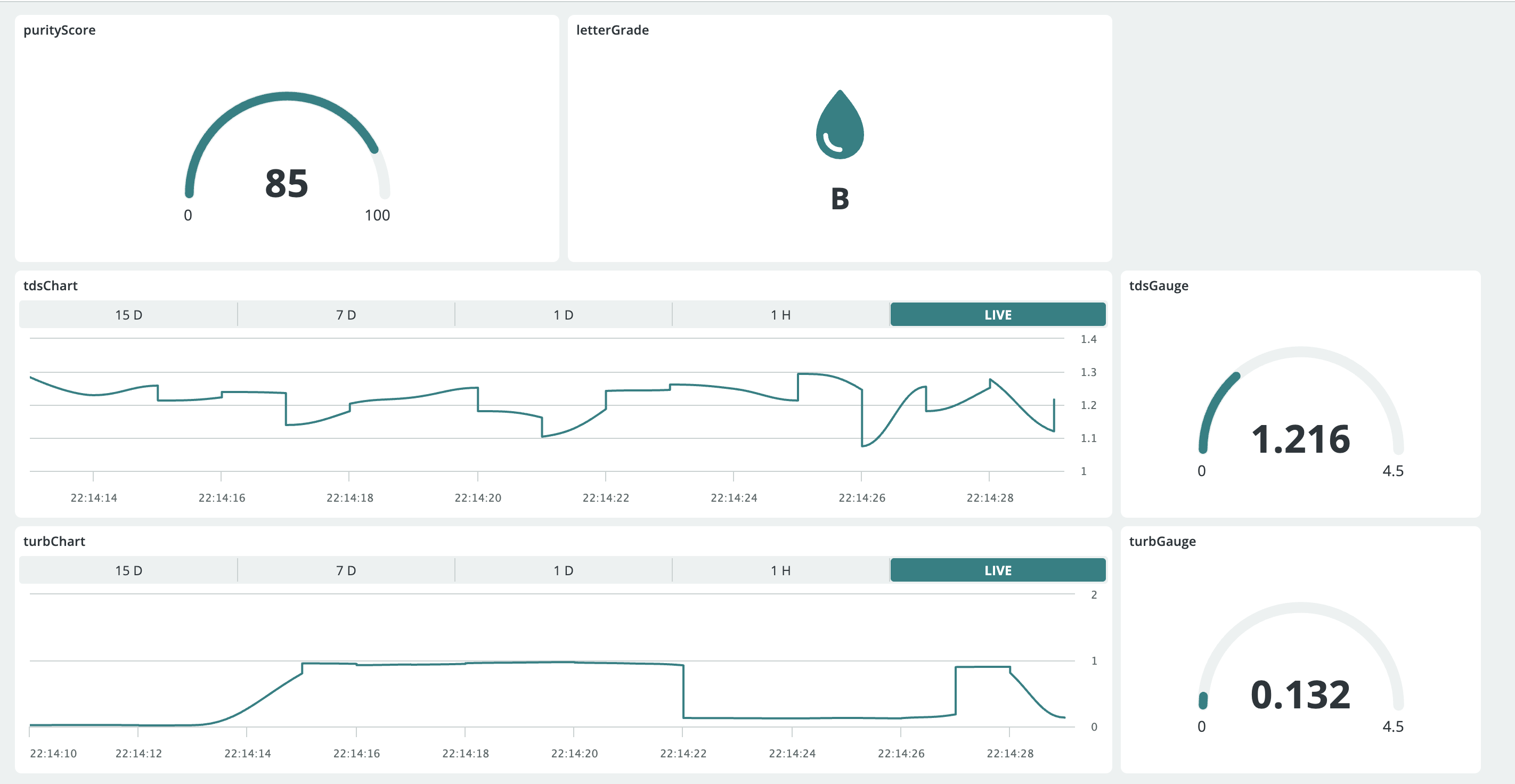

To understand the results better, we used simple graphs like line graphs and bar charts. These helped us see how the sensor values changed over time and compare clean water with contaminated water. We used these methods because they make patterns easy to understand.

Overall, our results support our hypothesis. The system was able to detect sudden changes in water quality and give early warnings. However, we also noticed that small changes sometimes did not trigger a warning, which means the system might need improvement for detecting very low levels of contamination.

This project shows that real-time monitoring can help identify possible water problems faster and more efficiently.

From our results, we learned that real-time sensors can detect changes in water quality very quickly. When we added different materials, the sensor values changed fast, and our system was able to give an early warning in most cases. This means our idea works and can help identify possible problems before the water becomes unsafe.

Our conclusion is that an early warning system for water is possible using simple and affordable sensors. Instead of waiting for lab testing, people could use systems like this to get quick alerts and take action sooner.

We also learned that different types of contamination affect the sensors in different ways. For example, cloudy water changed turbidity more, while dissolved materials changed TDS more. This helped us understand how water quality is measured.

These results are important because they show how technology can help protect people and the environment. If this system is improved in the future, it could be used in homes, schools, or communities to monitor water safety.

Overall, our project shows that small changes in water can be detected early, and that early detection can make a big difference.

In the future, we could improve our project by adding more sensors, like pH and temperature, to get more accurate results. We also tried using a pH sensor, but it did not work well, so we would fix that and include it next time. We could connect our system to a phone app to send alerts instantly. Testing more types of contaminants and more samples would also make our results stronger. Overall, we would make the system more reliable and easier to use in real life.

We would like to thank the people who helped us with our project. Our parents supported us by providing materials and helping us set up the experiment at home. They also encouraged us when things did not work, especially when some sensors did not give correct readings. We are grateful to everyone who answered our questions and gave suggestions. Their support helped us complete our project successfully and made it much better.

U.S. Environmental Protection Agency. (n.d.). Water quality standards. Retrieved from https://www.epa.gov

World Health Organization. (n.d.). Drinking-water. Retrieved from https://www.who.int

Science Buddies. (n.d.). Water quality testing: Turbidity and TDS. Retrieved from https://www.sciencebuddies.org

National Geographic Society. (n.d.). Water pollution. Retrieved from https://www.nationalgeographic.org

Storey, M. V., van der Gaag, B., & Burns, B. P. (2011). Advances in on-line drinking water quality monitoring and early warning systems. Water Research, 45(2), 741–747.

Geetha, S., & Gouthami, S. (2016). Internet of Things enabled real time water quality monitoring system. Smart Water, 2(1), 1–7.
