Bio-Shield: Engineering a Novel Protective Soil Layer to Combat Drought and Flooding

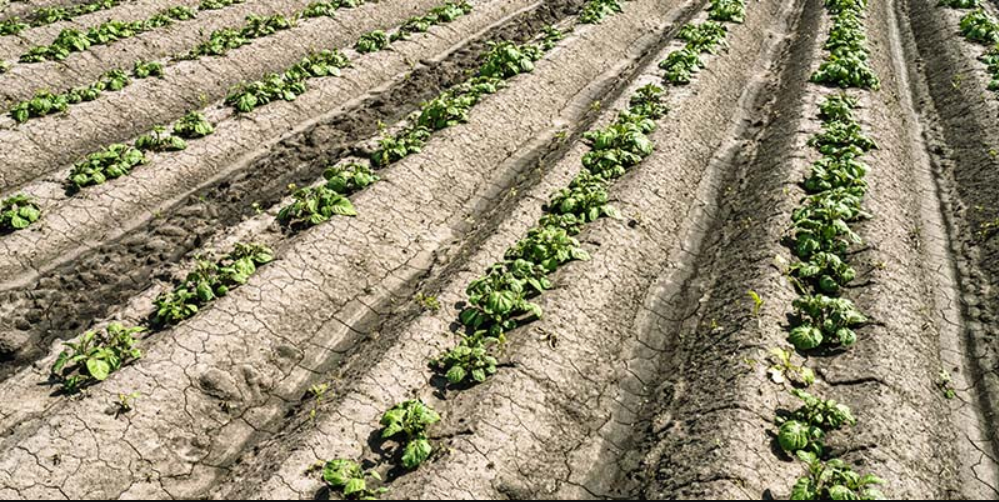

I’ve always been amazed by how farmers manage to grow anything, given how unpredictable nature has become. Living in Prince Edward Island, you realize quickly that our world relies on the land. Over the last few years, PEI's droughts have been a massive wake-up call. Seeing local fields turn into dust—stunting crop yields and stressing our farming families—really hit home.

It’s a cycle scientists call "Weather Whiplash," and it is a disaster for food security. One week the ground is bone-dry; the next, flash floods wash topsoil away before it can absorb a drop. I realized plants simply can’t keep up with these rapid shifts. I didn't want a solution involving expensive chemicals or plastic covers that end up as pollution. I started wondering: Could I engineer a biodegradable "Bio-Shield" to act as armour for the rhizosphere?

My research led me to experiment with natural polymers and waste. By mixing sodium alginate and bentonite clay and using upcycled wood ash as a catalyst, I triggered ionic cross-linking. This turned a liquid spray into a thixotropic gel. My goal was a material that holds moisture during a heatwave but acts as a structural anchor when a flood hits. I believe that by upcycling waste into high-performance tools, we can give farmers in PEI and across the globe a fighting chance.

To find a solution that could survive a PEI summer, I didn't just want a product; I wanted a way to protect our soil. I researched hydrogel molecular structures using NOAA and agricultural journals to find binders that wouldn't harm the earth. I focused on a "thixotropic" design—a material that flows easily when sprayed but sets into a firm gel once it hits the dirt.

Phase 1: Chemistry and the Two-Bottle System:

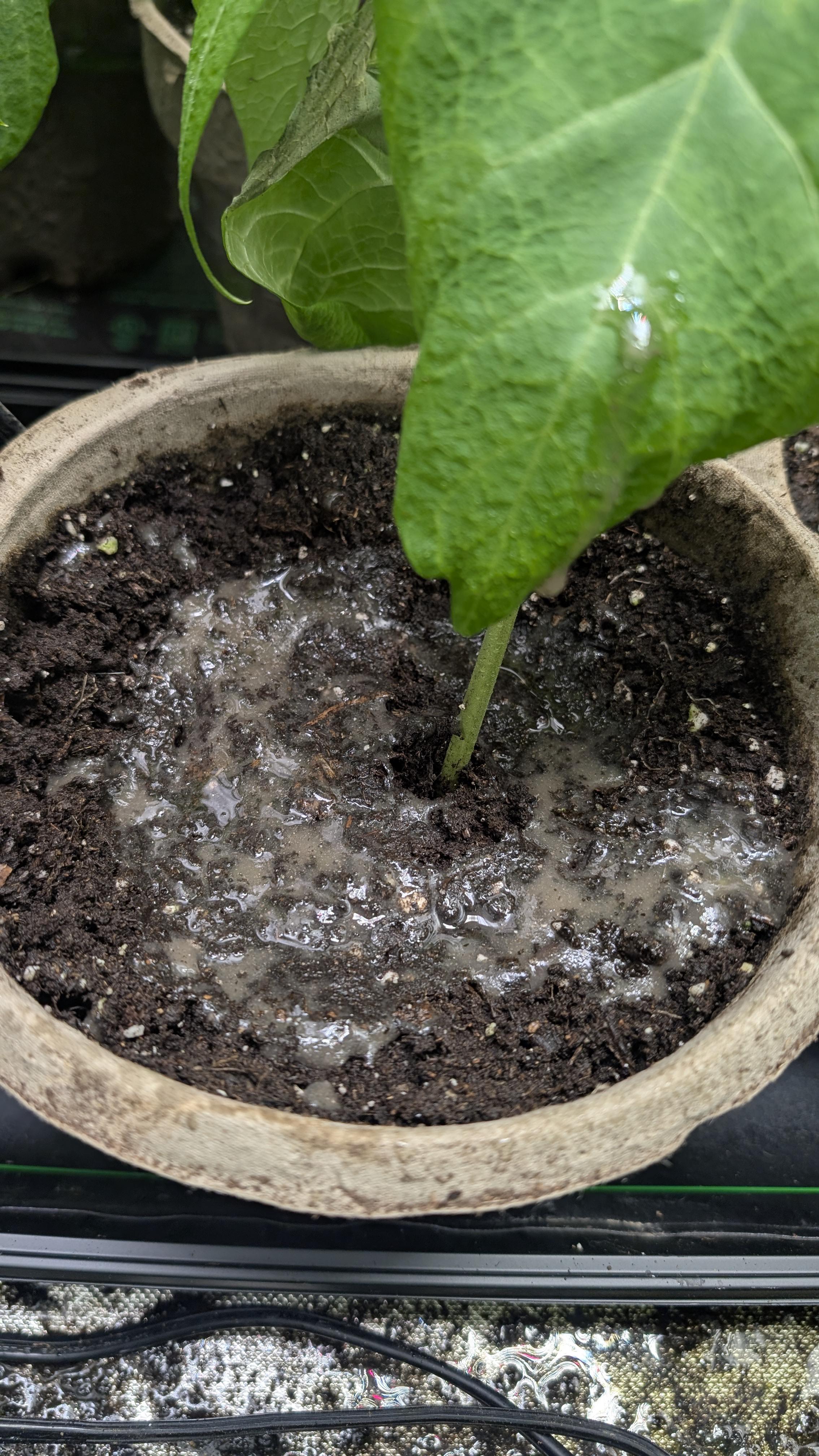

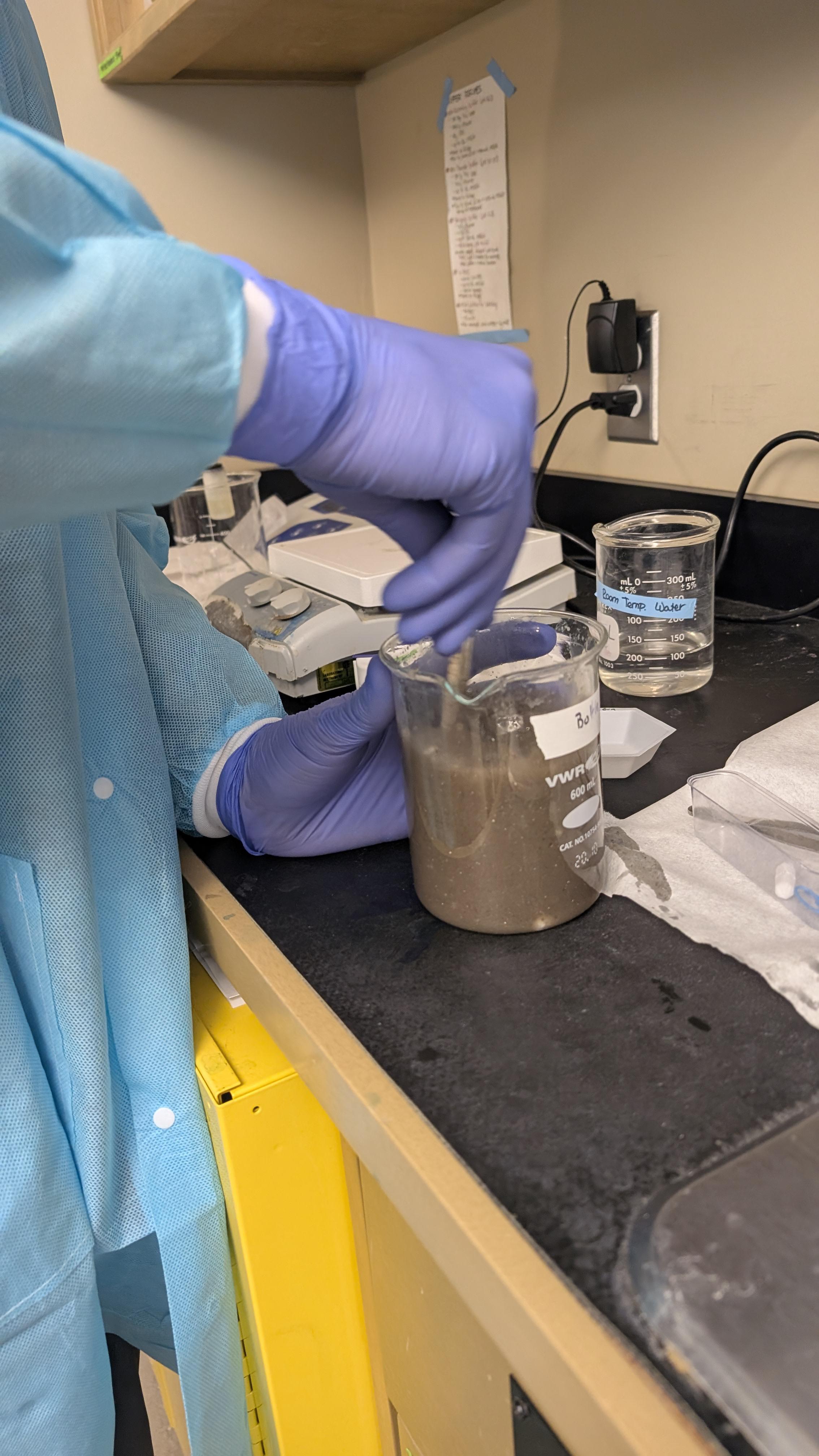

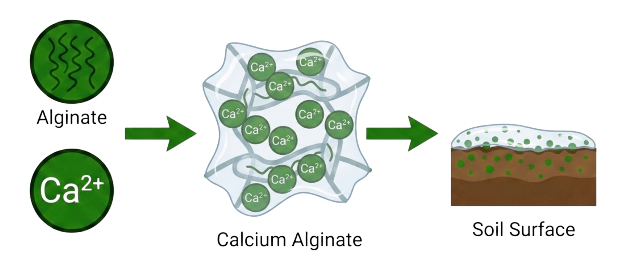

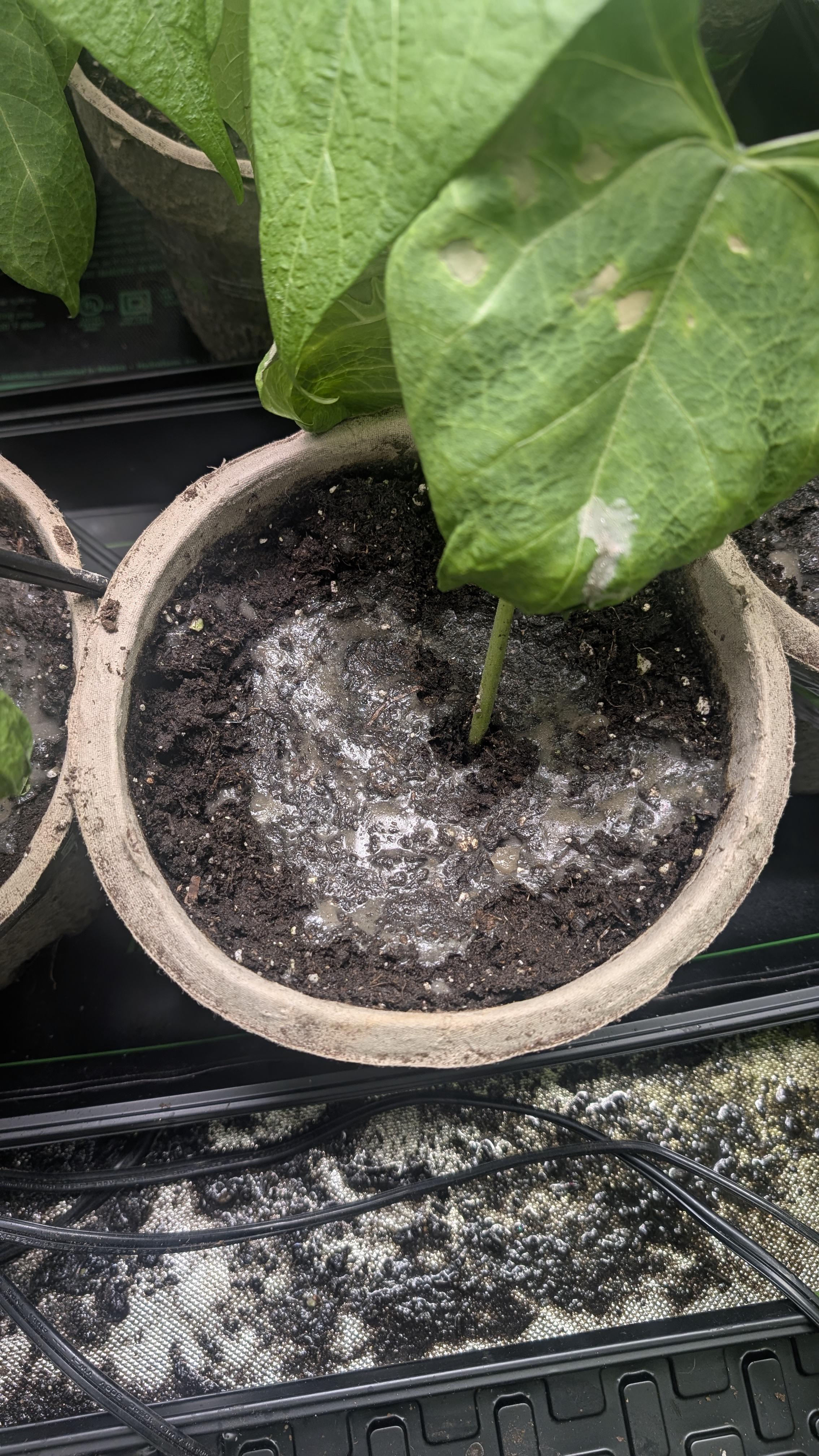

In the lab, I spent weeks tweaking ratios of sodium alginate and bentonite clay. I hit a major roadblock: mixing everything at once caused the sprayer to clog instantly. To fix this, I developed a two-bottle application system. Bottle A contained the polymer base, and Bottle B held the upcycled wood ash catalyst. When these two liquids meet on the soil, the calcium in the ash triggers ionic cross-linking, "zapping" the mixture into a protective, rubbery skin.

Phase 2: The Environment Tent Setup:

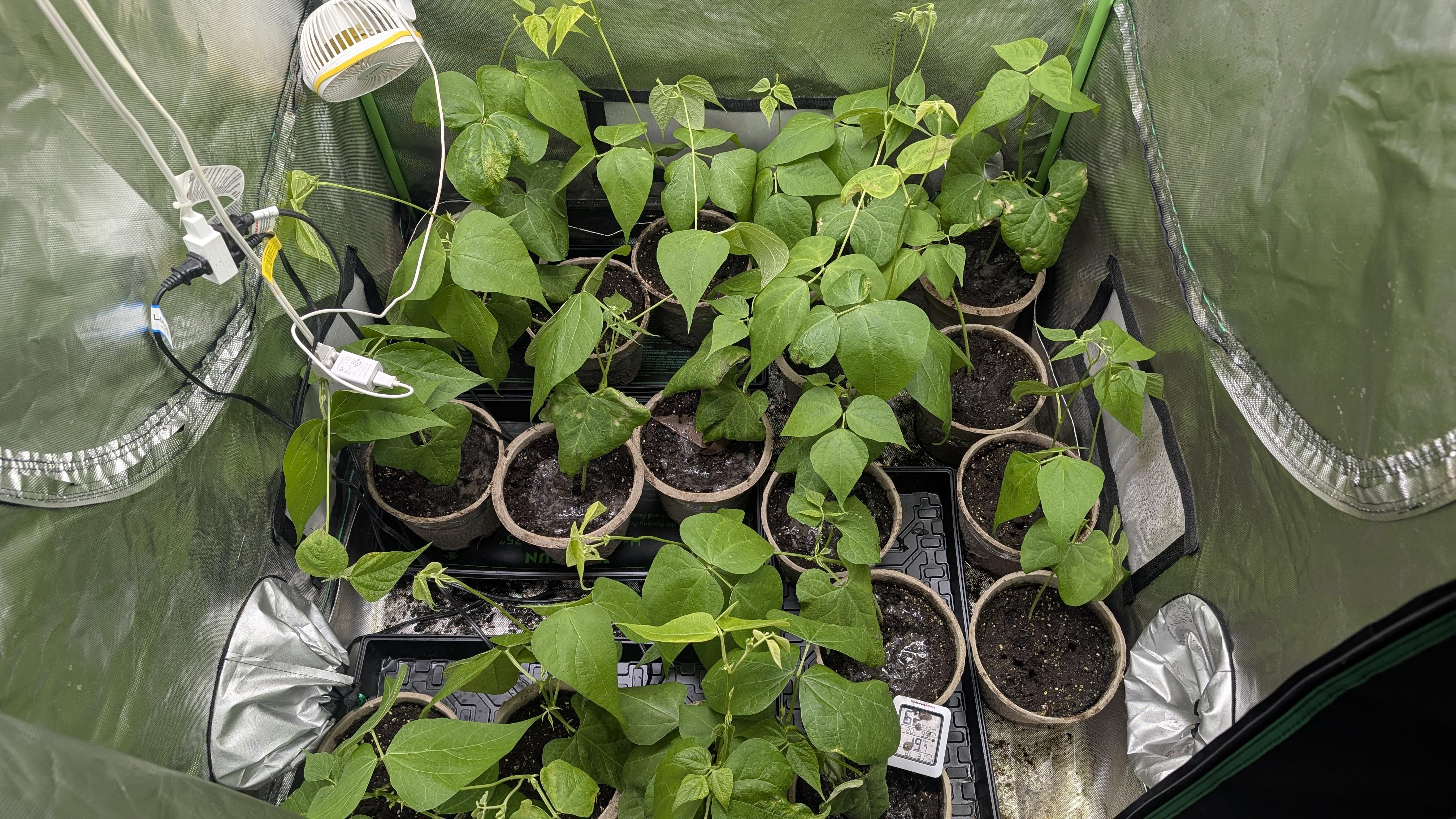

To ensure accurate data, I moved my experiment into an environment-controlled tent. This prevented wind or pests from ruining the results, keeping light, humidity, and temperature identical for all 18 bush bean plants. I applied my custom sprays to specific groups while keeping others as unprotected controls to establish a baseline.

Phase 3: The "Weather Whiplash" Test:

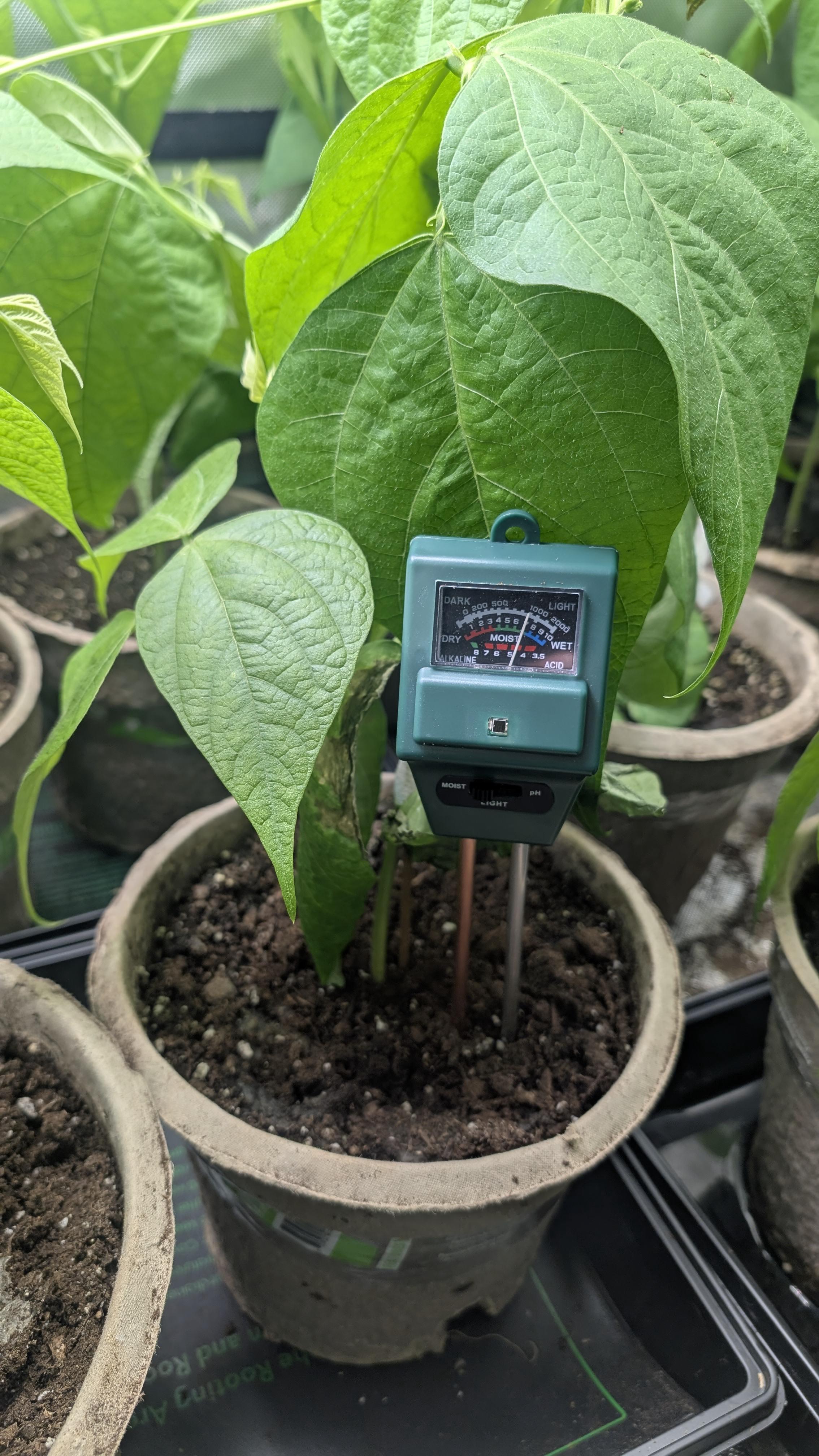

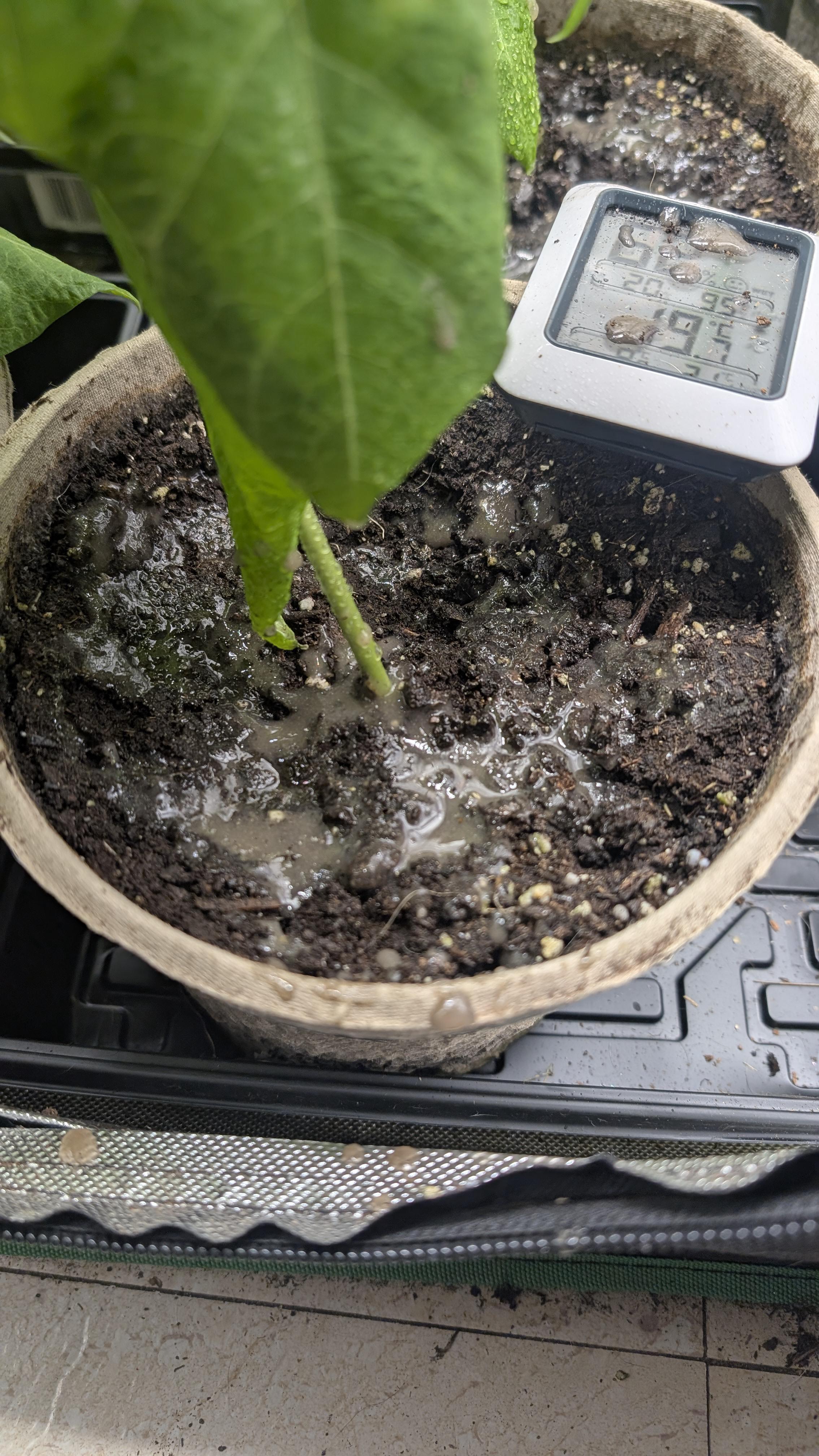

I put the plants through three tests: Control (normal growth), Drought (zero water), and Flood (1000mL flash flood). I collected data daily by measuring plant heights and final weights to calculate biomass. Using a moisture probe, I pinpointed exactly how my formulas stopped erosion and kept the beans from wilting.

Results and Analysis: The Bio-Shield Impact

The Erosion Evidence: Solving the Weight-Moisture Gap:

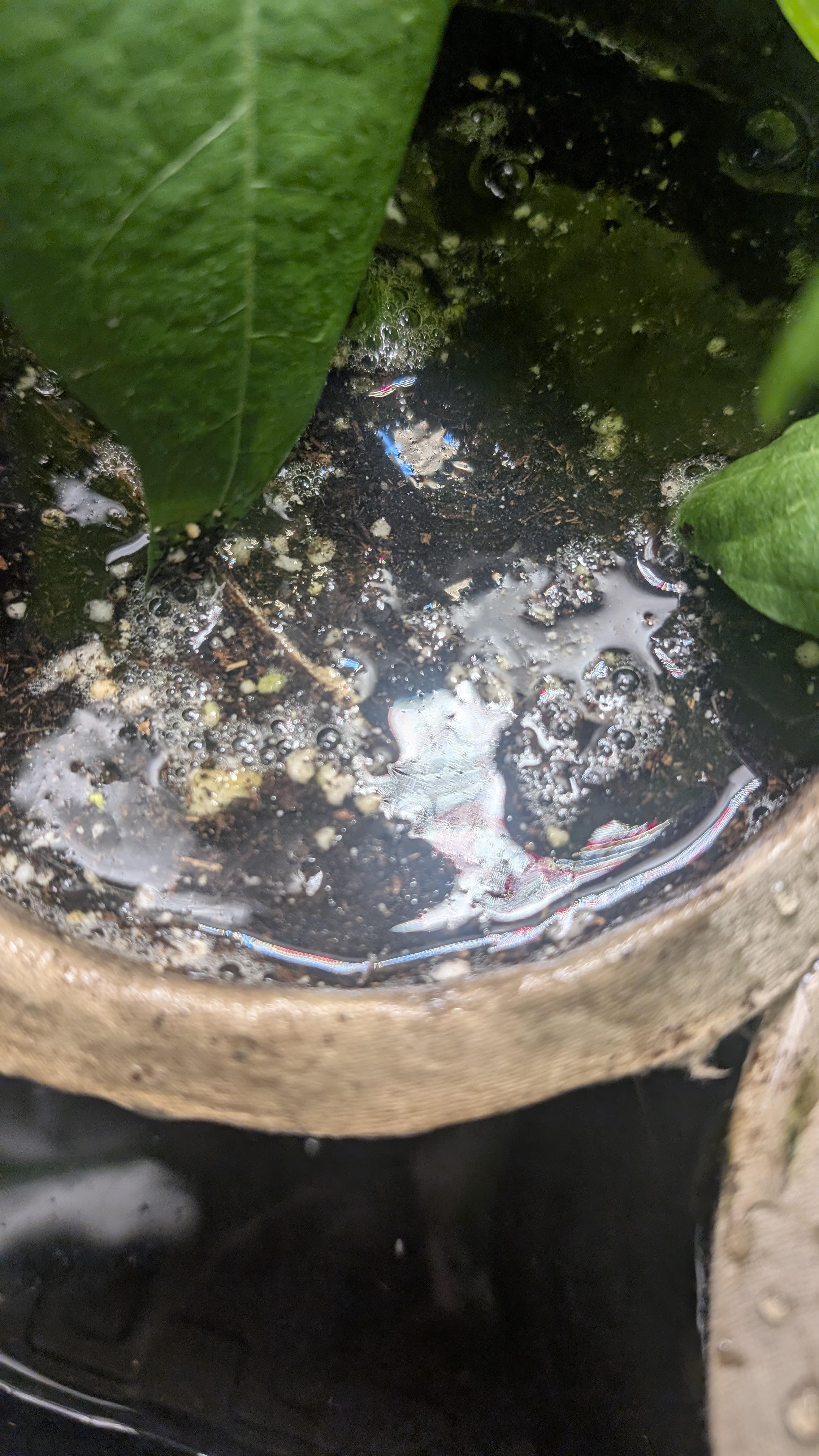

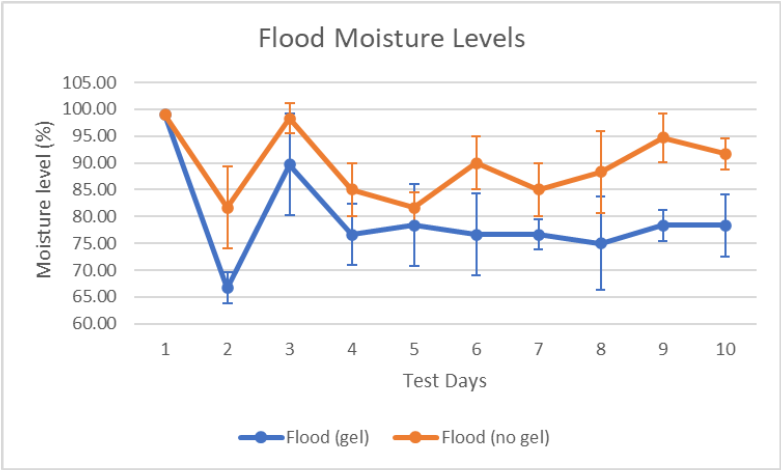

The data gathered over the ten-day trial confirms that the "Bio-Shield" acts as a dynamic life-support system for soil, providing a multi-functional defence against climate extremes. A major finding was the clear evidence of erosion control in the Flood Group. Despite being subjected to a 1,000mL flash flood, the gel-treated pots weighed nearly the same as the unprotected pots, but they had significantly lower moisture levels. Since soil is much denser and heavier than water, this proves that the hydrogel held the actual earth in place. In contrast, the unprotected pots lost a large amount of their solid soil to erosion and replaced that lost weight with trapped water, essentially turning the pot into a pool of mud.

Growth Velocity: Resilience Across Climate Stress:

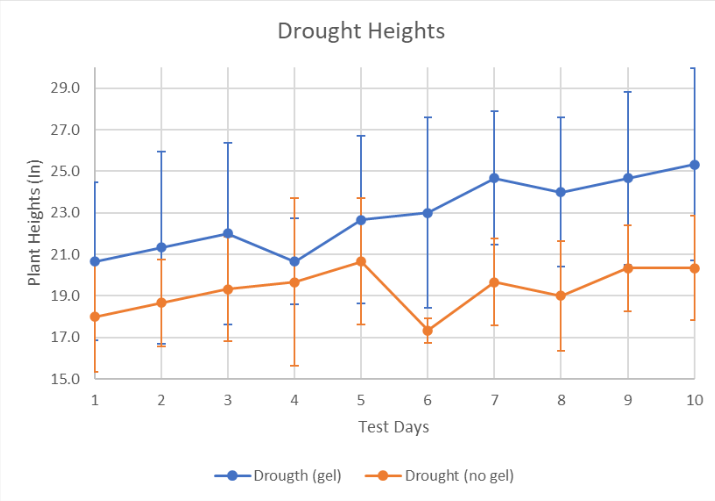

Growth velocity provided the most visual evidence of this protection. In the Control Group, the difference was absolute: shielded plants grew at a healthy 2.2 cm/day, while unshielded plants hit a total wall at 0 cm/day, effectively entering stasis. This resilience extended into the stress tests as well. Under Flood conditions, shielded plants grew at 1.78 cm/day—nearly double the 0.9 cm/day seen in unprotected plants. In the Drought simulation, the shield maintained a growth rate of 1.17 cm/day, while the control struggled at just 0.6 cm/day, proving the gel's ability to provide steady hydration and maintain plant turgor pressure when external water was scarce.

Nutrient Anchoring: Preventing Chemical Leaching:

Beyond physical growth, the lab results confirmed that the ionic cross-linking of sodium alginate and wood ash acts as a protective anchor for nutrients. The hydrogel prevented "leaching"—the process where water washes away plant food—by locking minerals into the soil. Manganese levels in the shielded drought group reached 156.9, which is over 60% higher than the 96.9 found in the unprotected soil. This trend remained consistent for Zinc and Calcium, proving that the Bio-Shield keeps the soil nutrient-rich even when environmental factors attempt to strip it bare.

Sustainable Soil Health: Biodegradability and Stability:

I also observed significant pH and Organic Matter stability. Because the Bio-Shield is fully biodegradable, it does not leave behind synthetic microplastics. Instead, as it breaks down, it contributes to the soil's organic matter, which stayed higher in the shielded pots (65%) compared to the unprotected groups. In the flood groups, the shielded soil remained steady at a 6.5 to 6.9 pH range, the "sweet spot" for nutrient uptake, while untreated soil fluctuated wildly.

Conclusion:

This indicates that the Bio-Shield doesn't just protect the plant in the short term; it preserves the long-term biological health of the ecosystem. By stopping physical erosion and regulating the chemical environment through a sustainable, degradable medium, this upcycled formula successfully protects the fundamental integrity of the planting environment.

The results from testing 18 bean plants prove that Bio-Shield is a vital tool for plants facing extreme weather. I created this invention as a natural armour for crops. By upcycling wood ash and seaweed, I discovered a way to help plants survive harsh conditions that would otherwise be fatal.

These results show how plants handle environmental stress. During flood tests, the unprotected plants struggled as the ground became unstable and nutrients washed away. However, the Bio-Shielded plants stayed strong. The gel acted like a "chemical safe" for the minerals plants need to grow. My lab tests confirmed this because the shielded plants had access to 60% more Manganese. I found 156.9 ppm in the shielded area compared to only 96.9 ppm for the unprotected group. Even in heavy storms, the "food" plants do not disappear.

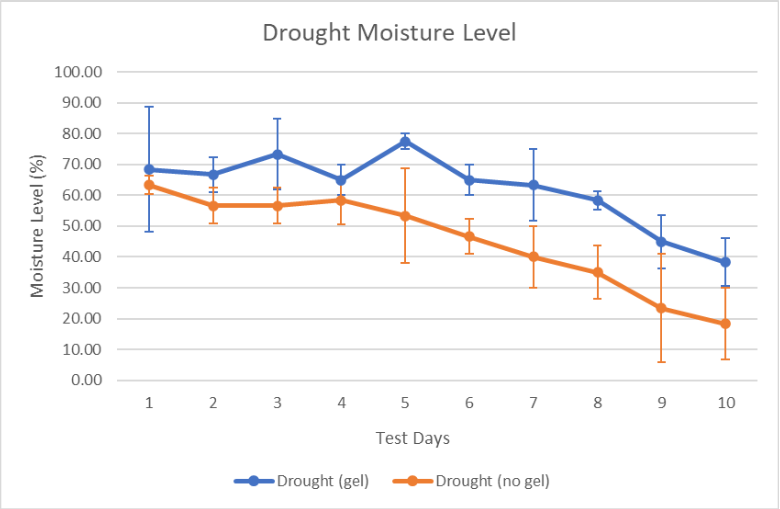

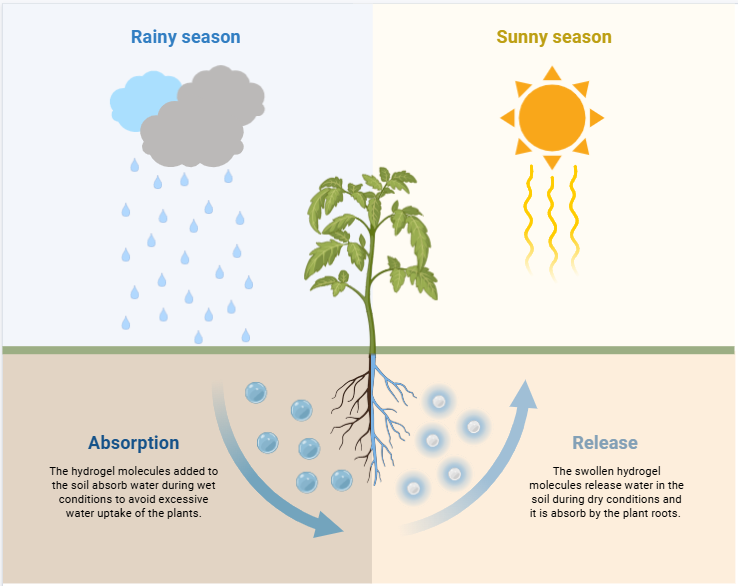

The drought tests further proved the value of this armour. The unprotected plants reached their limit by Day 4, but the shielded ones grew nearly twice as fast. Daily measurements showed that these recycled materials act like a slow-release hydration system. They do not just soak up water; they share it with the plant as it gets thirsty.

Ultimately, we can turn "waste" into a tool that protects our food supply. Bio-Shield is a simple, eco-friendly way to keep plants healthy and productive regardless of the environment.

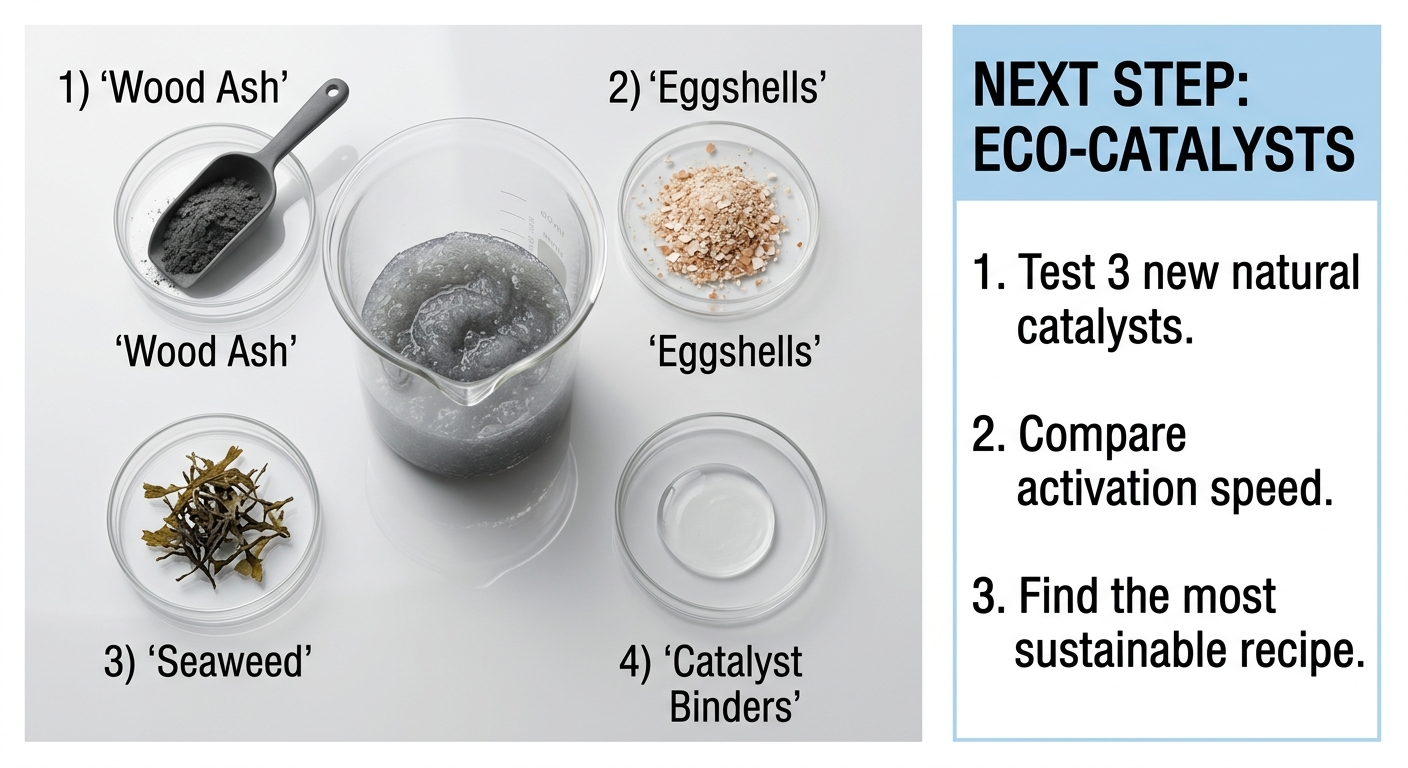

To extend this project, I want to test if gel placement changes the results. Applying the hydrogel directly into the root zone versus on the surface could improve water delivery for different crops. I also plan to test Bio-Shield on steep slopes to see if it can prevent landslides during storms. Finally, I will experiment with other "waste" catalysts like eggshells. My ultimate goal is to develop a reliable, low-cost hydrogel that helps farmers protect their livelihoods and food supply from "weather whiplash," turning local waste into a professional tool for agriculture.

I’m honestly so lucky to have had such an incredible group of people backing me up. A massive thank you goes to Dr. Patrick Murphy at UPEI; his expertise was a total lifesaver for wrapping my head around hydrogel formulation and experimental design. I also owe a huge debt to Dr. Barrie Linkletter for sharing the deep chemistry knowledge I needed to get things right in the lab.

Finally, I’m so grateful to Lise Deveau and Mme Duffy. Their constant belief in my ideas really meant the world, especially when troubleshooting got tough. Bio-Shield wouldn't be what it is today without their amazing support!

Ahmed, E. M. (2015). Hydrogel: Preparation, characterization, and applications: A review. Journal of Advanced Research, 6(2), 105-121. https://doi.org/10.1016/j.jare.2013.07.006

Augusto, L., Richardson, A., & Binkley, D. (2008). Wood ash as a soil amendment in forestry and agriculture. Journal of Environmental Quality.

Casson, N. J., & Whitfield, C. J. (2021). The impact of climate change on hydrological extremes in Atlantic Canada. Hydrological Processes.

Ghorai, S., Sarkar, A. K., & Pal, S. (2013). Synthesis and characterization of sodium alginate/bentonite based hybrid material. International Journal of Biological Macromolecules, 62, 627-633. https://doi.org/10.1016/j.ijbiomac.2013.10.004

Government of Canada. (2019). Canada’s changing climate report: Atlantic region summary. https://www.nrcan.gc.ca/maps-tools-and-publications/publications/climate-change-publications/canadas-changing-climate-report/21177

Lee, K. Y., & Mooney, D. J. (2012). Alginate: Properties and biomedical applications. Progress in Polymer Science, 37(1), 106-126. https://doi.org/10.1016/j.progpolymsci.2011.06.003

Morgan, R. P. C. (2005). Soil erosion and conservation. Blackwell Publishing.

National Oceanic and Atmospheric Administration. (2021, August 13). Climate change impacts. https://www.noaa.gov/education/resource-collections/climate/climate-change-impacts

Potato Business. (2020, August 10). P.E.I. farmers struggle with dry fields. https://www.potatobusiness.com/agro-news/p-e-i-farmers-struggle-with-dry-fields/

U.S. Environmental Protection Agency. (2021). Bentonite as a soil amendment for water retention.
